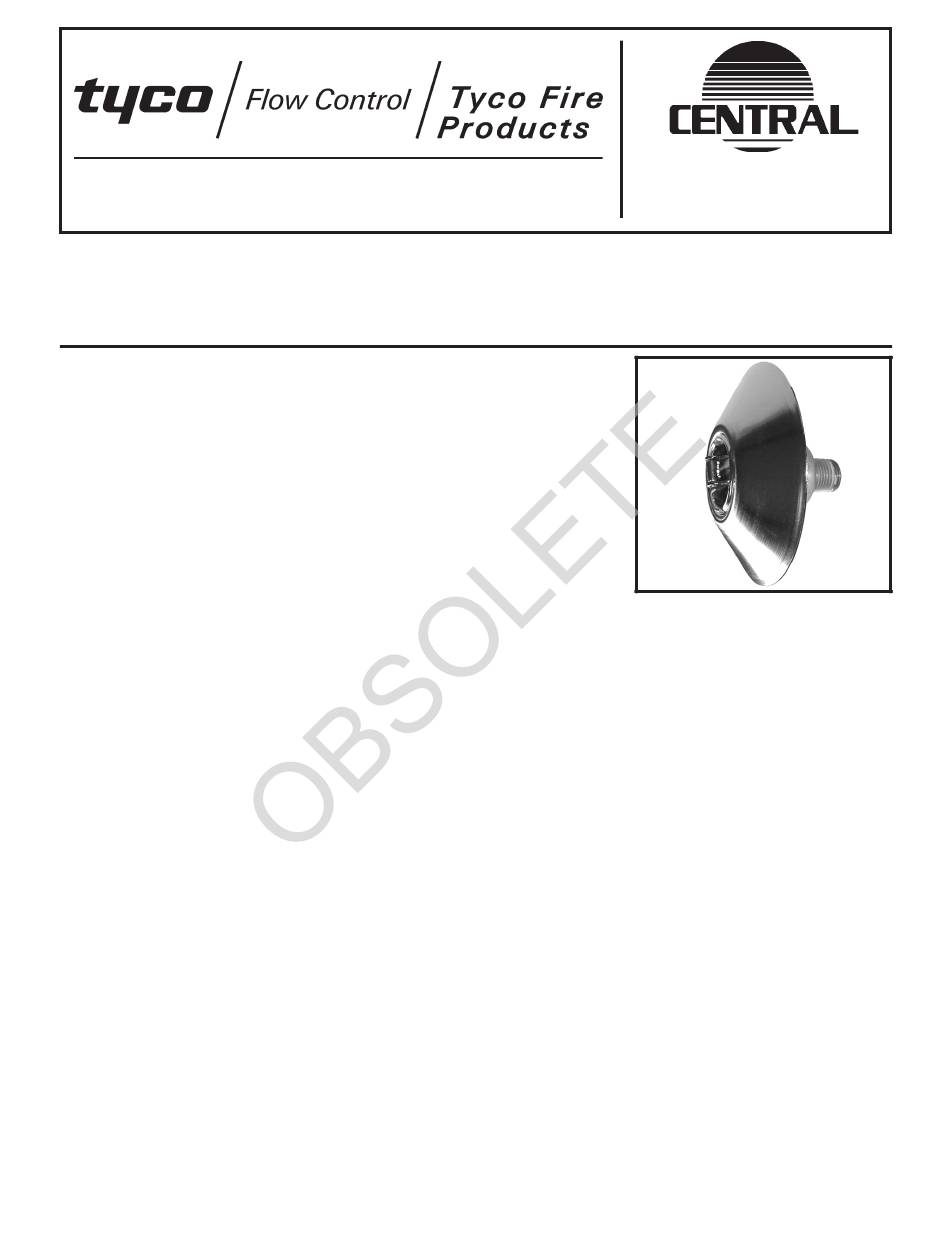

Model TFP PH5 — 5.6 K-factor
Institutional Horizontal Sidewall Sprinklers
Standard Response, Standard Coverage
General
Description
The Model TFP PH5, 5.6 K-factor, In-
stitutional Horizontal Sidewall Sprin-
klers are standard response - standard
coverage, spray sprinklers designed
for use in areas such as correctional,
detention, and mental health care fa-
cilities.
The unique features of the Model TFP
PH5 provide a tamper resistant sprin-
kler design that helps eliminate the
opportunity for individuals to injure
themselves or others with components
of a fire sprinkler. At the same time, the
Model TFP PH5 optimizes an aes-
thetically appealing flush design that
conceals most of the operating parts.
WARNING
The Model TFP PH5 Institutional Hori-
zontal Sidewall Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failure to do so may
impair the integrity of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted relative to
any questions.
Page 1 of 4
Sprinkler
Identification
Number
SIN TY3390
Technical
Data
Approvals
UL and C-UL Listed for light and ordi-
nary hazard occupancies. (Refer to the
Design Criteria section.)
NYC under MEA 351-01-E.
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connection
1/2 inch NPT
Discharge Coefficient
1/2
K = 5.6 GPM/psi
1/2
(80,6 LPM/bar )
Temperature Ratings
135°F/57°C
Finishes
Sprinkler: Chrome Plated
Escutcheon: Chrome Plated
Physical Characteristics
Body . . . . . . . . . . . . . . Brass
Deflector . . . . . . . . . . . . Bronze
Deflector Hood . . . . . . . . Bronze
Deflector Post . . . . . . . . . Bronze
Deflector Post Pin . . . . . . Bronze
Deflector Core . . . . . . . . Bronze
Compression Screw . . . . . Bronze
Lever . . . . . . . . . . . . . Bronze
Release Spring . . . . . . . . Bronze
Sealing Assembly . . . . . . . . . . .
. . . . . . Beryllium Nickel w/ Teflon*
Fusible Element . . . . . . . . . . . .
. Solder, Copper, and Stainless Steel
Dust Cover . . Chrome Plated Steel
FEBRUARY, 2002
Customer Service/Sales:
Tel: (215) 362-0700 / (800) 523-6512
Fax: (215) 362-5385
Operation
In the standby condition, the design of
the Model TFP PH5 is such that a
suspended load of 80 lbs. (36 kg) or
more applied to the linkage mecha-
nism will release the sprinkler. Also,
when properly installed, the escutch-
eon is held fast to the wall to deter its
removal. The shape of the escutcheon
cannot be grasped easily, which fur-
ther deters tampering.
A fusible solder operating element se-
cures the linkage mechanism of the
Model TFP PH5. When the rated tem-
perature is reached, the solder melts
releasing the linkage mechanism that
holds the sprinkler closed. This allows
the deflector to extend outward and
water to flow.
