Tyco TY-B Series Manual

Tyco TY-B Series Manual

2.8, 5.6, and 8.0 k-factor, upright, pendent, and recessed pendent sprinklers standard response, standard coverage
Hide thumbs Also See for TY-B Series:
Table of Contents

Advertisement

Quick Links

Stephens Rental Property Management
7402 Huckleberry Lane SW
Olympia, Washington 98502
Jobsite Supt:
Phone:
American Family Insurance
Old Town Plaza
Building "B"-2nd Floor
Tumwater, Washington

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY-B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tyco TY-B Series

Summary of Contents for Tyco TY-B Series

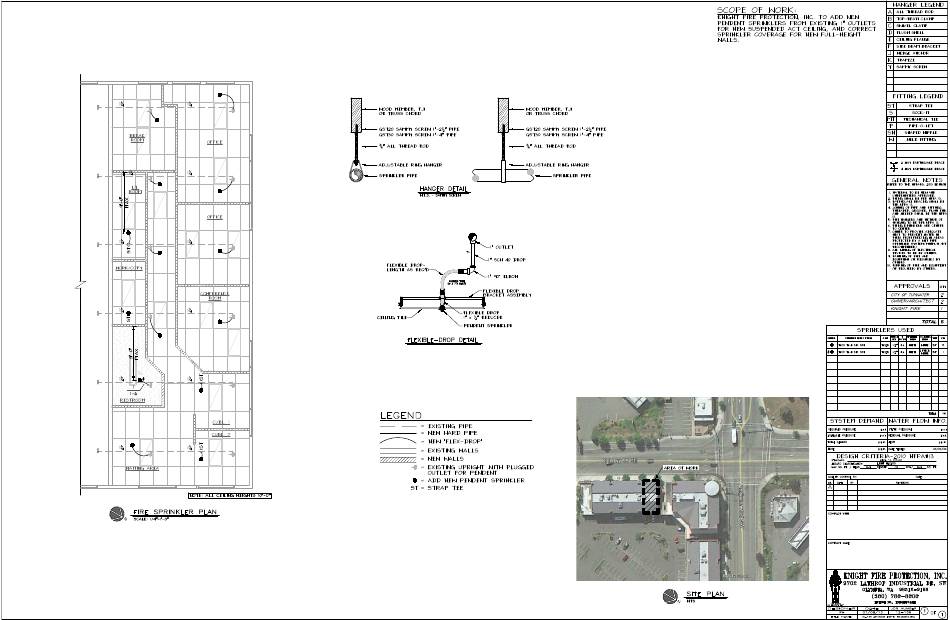

  • Page 1 Stephens Rental Property Management 7402 Huckleberry Lane SW Olympia, Washington 98502 Jobsite Supt: Phone: American Family Insurance Old Town Plaza Building "B"-2nd Floor Tumwater, Washington...
  • Page 2 Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 Series TY-B — 2.8, 5.6, and 8.0 K-factor Upright, Pendent, and Recessed Pendent Sprinklers Standard Response, Standard Coverage cable approval agencies, the testing is General not representative of all possible cor- rosive atmospheres.
  • Page 3 Page 2 of 8 TFP151 ESCUTCHEON 7/16" (11,1 mm) PLATE SEATING NOMINAL 1/2" DEFLECTOR SURFACE MAKE-IN 2-3/16" 2-1/4" (55,6 mm) (57,2 mm) WRENCH 1-9/16" FLATS (39,7 mm) CROSS DEFLECTOR PENDENT UPRIGHT SECTION 1 - Frame 3 - Sealing 4 - Bulb 6 - Deflector Temperature rating is indicated on deflector or adjacent to 2 - Button...
  • Page 4 TFP151 Page 3 of 8 ESCUTCHEON 1/2" (12,7 mm) STYLE 40 PLATE SEATING NOMINAL RECESSED 3/4" SURFACE MAKE-IN ESCUTCHEON DEFLECTOR 1/2" 2-5/16" (12,7 mm) (58,7 mm) NOMINAL MAKE-IN 1-9/16" 2-1/4" (39,7 mm) (57,2 mm) WRENCH FLATS 2-7/8" (73,0 mm) DIA. 3/4"...
  • Page 5 4. Approved by the Loss Prevention Certification Board (LPCB Ref. No. 007k/03). 5. Approved by the City of New York under MEA 354-01-E. 6. VdS Approved (For details contact Tyco Fire & Building Products, Enschede, Netherlands, Tel. 31-53-428-4444/Fax 31-53-428-3377). 7. Approved by the Loss Prevention Certification Board (LPCB Ref. No. 094a/05).

  • Page 6: Operation

    TFP151 Page 5 of 8 SPRINKLER FINISH TYPE NATURAL CHROME WHITE LEAD WAX OVER BRASS PLATED POLYESTER COATED COATED LEAD COATED PENDENT (TY1251) 1/2" 175 PSI (12,1 BAR) UPRIGHT (TY1151) PENDENT (TY3251) 250 PSI (17,2 BAR) 175 PSI (12,1 BAR) 1/2"...

  • Page 7: Installation

    Page 6 of 8 TFP151 2-7/8" DIA. (73,0 mm) 3/4" (19,1 mm) 5/8±1/4" (15,9±6,4 mm) WRENCH RECESS 1/4" (6,4 mm) 2-1/4" DIA. (END "A" USED FOR (57,2 mm) 1/2" NPT MODELS) FACE OF MOUNTING SPRINKLER PLATE FITTING 1/8" WRENCH RECESS (END "B"...

  • Page 8: Care And Maintenance

    TFP151 Page 7 of 8 sprinkler. Readjust the position of the The Series TY-B Recessed Pendent and after installation. Sprinklers dam- sprinkler fitting to suit. Sprinklers must be installed in ac- aged by dropping, striking, wrench cordance with the following instruc- twist/slippage, or the like, must be re- The Series TY-B Pendent and Up- tions.

  • Page 9: Limited Warranty

    Buyer or Buyer’s repre- sentatives. In no event shall TFBP be liable, in contract, tort, strict liability or under © 2007 TYCO FIRE & BUILDING PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446...
  • Page 10 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex ® Stainless Steel Sprinkler fittings SeRieS aQB BRaiDeD flexiBle hOSe aSSeMBlieS SeRieS aQU UnBRaiDeD flexiBle hOSe aSSeMBlieS AquaFlex Stainless Steel sprinkler Fittings provide fast, easy sprinkler installation in a suspended ceiling grid with a flexible, stainless steel hose. System Options: • Braided and unbraided flexible stainless steel hose in lengths: 31, 48, 60, 72"/790, 1220, 1525, 1830 mm...
  • Page 11 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings fRictiOn lOSS Data Standard Straight Reducer - 5.5" Maximum number of 90° bends length Outlet (at 4" bend radius) equivalent length of 1" Schedule 40 pipe inches/mm inches ft/m ft/m ½...
  • Page 12 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings pRODUct DetailS 5.5" straight reducer item Description Hose 9.0" straight reducer Adapter Ring Seal Nipple 2¼ Braid Collar Series aQB flexible hose – Braided (1" nominal diameter) 13.0" straight reducer item Description Hose...
  • Page 13 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings cOMMeRcial SUSpenDeD ceiling inStallatiOn - 1-Bee BRacKet item Description 24" or 48" Square Bar Center Bracket Assembly End Bracket Assembly Sheet Metal Screw 1-Bee One-piece bracket with center open-gate assembly 1-Bee BRacKet With aDJUStaBle enD BRacKet (RegiOnal aVailaBility)
  • Page 14 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings flexiBle DROp aSSeMBly With ReceSSeD SpRinKleR – 1/2" aDJUStMent, t-BaR inStallatiOn See Chart 1½"/ 1½"/ 38 mm 38 mm / "/22.2 mm or 1"/25.4 mm Nom. ID 2½"/64 mm min. straight section See Chart before bending 2 / "/60 mm...
  • Page 15 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings flexiBle DROp aSSeMBly With cOncealeD SpRinKleR – 1/2" aDJUStMent, t-BaR inStallatiOn See Chart 1½"/ 1½"/ 38 mm 38 mm ⁄ "/22.2 mm or 1"/25.4 mm Nom. ID 2½"/64 mm min.
  • Page 16 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings flexiBle DROp aSSeMBly, lOng elBOW With ReceSSeD SpRinKleR – 1/2" aDJUStMent, t-BaR inStallatiOn 1½"/ 1½"/ 38 mm 38 mm 6.3"/161 mm See Chart 2 ⁄ "/60 mm max. hole 2"/51 mm min.
  • Page 17 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings flexiBle DROp aSSeMBly, ShORt elBOW With cOncealeD SpRinKleR – 1/2" aDJUStMent, t-BaR inStallatiOn 1½"/ 1½"/ 38 mm 38 mm WARNING: Typical T-bar grid and ceiling tile shown. Variations of T-bar and tile may be used but may result in dimensional changes from 4.8"/123 mm...
  • Page 18 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex Stainless Steel ® Sprinkler fittings flexiBle hOSe in-plane BenD chaRacteRiSticS One BenD thRee BenDS tWO BenDS Minimum Minimum Minimum Minimum bend radius bend radius bend radius bend radius 90° Minimum Minimum bend radius Minimum bend radius bend radius...
  • Page 19 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex ® Stainless Steel Sprinkler fittings MateRial SpecificatiOnS corrugated flexible hose: SS304 adapter Ring: SS304 (for 1" ID); Nylon (for ⁄ " ID) Seal: EPDM nut and nipple: Zinc-Plated Carbon Steel Reducer (1/2 or ¾”): Zinc-Plated Carbon Steel 90º...
  • Page 20 10.85 fiRe pROtectiOn pRODUctS – acceSSORieS aquaflex ® Stainless Steel Sprinkler fittings WaRRanty Refer to the Warranty section of the current Price List or contact Victaulic for details. nOte This product shall be manufactured by Victaulic or to Victaulic specifications. All products to be installed in accordance with current Victaulic installation/assembly instructions.

This manual is also suitable for:

Ty1151Ty1251Ty3151Ty3251Ty4151Ty4251 ... Show all
