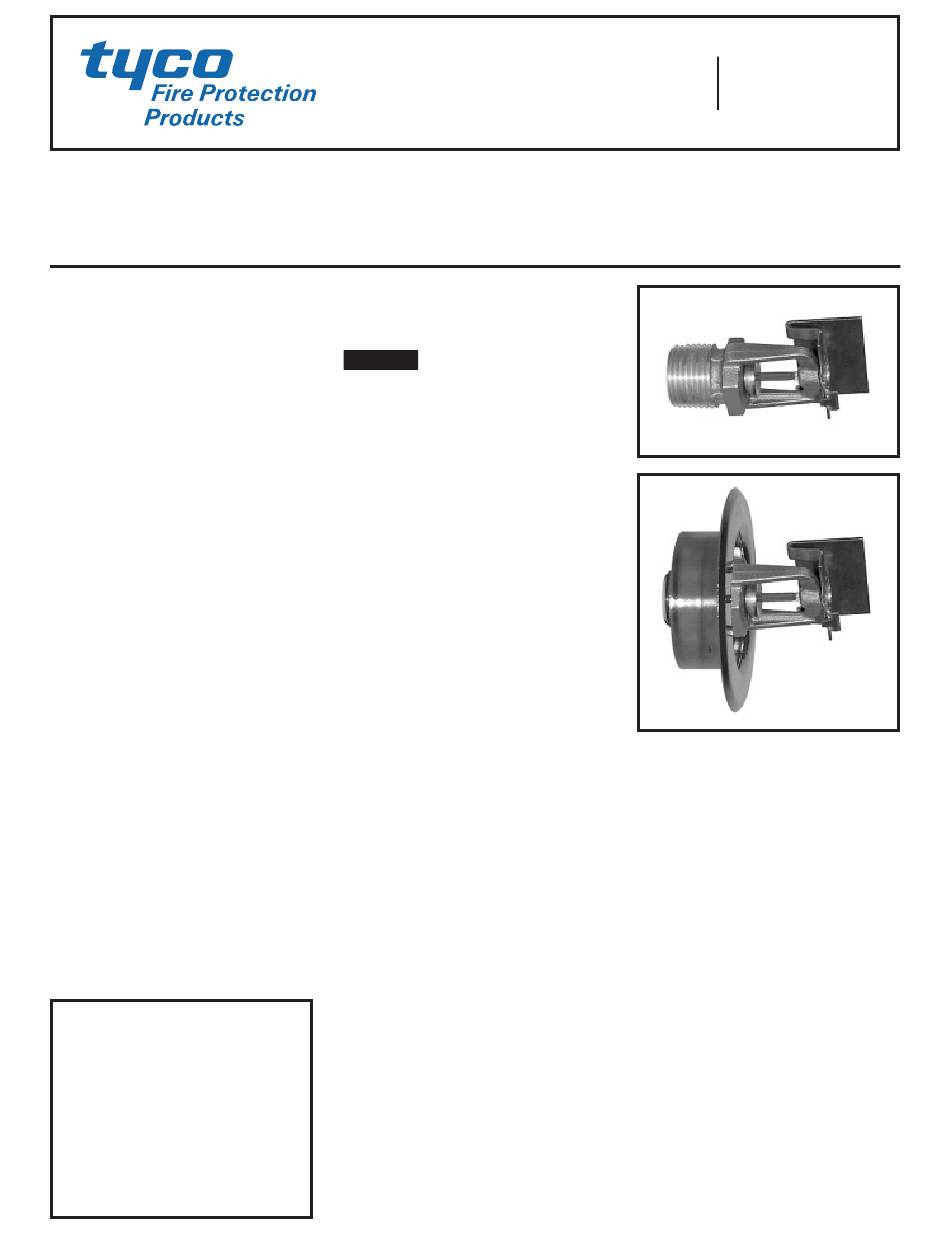

Series EC-5 — 5.6 K-factor
Extended Coverage Horizontal Sidewall Sprinklers
Quick & Standard Response (Light Hazard)
General
Description
The Series EC-5, Extended Coverage
Horizontal Sidewall Sprinklers are ex-
tended coverage, decorative 3 mm
glass bulb type spray sprinklers de-
signed for use in hydraulically calcu-
lated sprinkler systems in light haz-
ard, commercial occupancies such
as churches, restaurant seating ar-
eas, hotels, educational facilities, of-
fices, etc. With their coverage up to
16 feet (4,9 m) wide by 24 feet (7,3 m)
long and maximum deflector to ceil-
ing distance of 18 inches (450 mm),
they are designed for installation
along a wall or the side of a beam and
just beneath a smooth and level ceil-
ing. Horizontal sidewall sprinklers are
commonly used instead of pendent or
upright sprinklers due to aesthetics or
building construction considerations,
where piping across the ceiling is not
desirable.
The fast response thermal sensitivity
rating of the Series EC-5, 3 mm Bulb
Type Sprinklers provides a quick re-
sponse extended coverage (QREC)
rating for many of the coverage areas
detailed in Tables B and C.
The recessed version of the Series
EC-5 Extended Coverage Horizontal
Sidewall Sprinkler utilizes a two-piece
Style 50 Recessed Escutcheon. The
Style 50 provides up to 3/8 inch (9,5
mm) of total adjustment from the flush
sidewall position. The adjustment pro-
vided by the Recessed Escutcheon
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cau-
tions with respect to handling
and installation of sprinkler sys-
tems and components. Improp-
er handling and installation can
permanently damage
kler system or its components
and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
reduces the accuracy to which the
fixed pipe lengths to the sprinklers
must be cut.
NOTICE
The Series EC-5 Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Pro-
tection Association, in addition to the
standards of any other authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Sprinkler
Identification
Number
TY3302 - EC HSW, 5.6K
TY3302 is a redesignation for C3302.
Technical
Data
Approvals
UL and C-UL Listed
FM and NYC Approved
(Refer to Table A for complete approv-
al information. The approvals apply to
the service conditions indicated in the
Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
1/2 inch NPT
Discharge Coefficient
K = 5.6 GPM/psi
(80,6 LPM/bar
Temperature Ratings
a sprin-
Refer to Table A
1/2
1/2 )
MAY 2014
Worldwide
www.tyco-fire.com
Contacts
Finishes
Sprinkler: Refer to Table D
Recessed Escutcheon: White Coated,
Chrome Plated, or Brass Plated
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Sealing Assembly . . . . . . . . . . . . . . . . Beryllium
Nickel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . .Glass (3 mm dia.)
Compression Screw . . . . . . . . . . . . . . . . Bronze
Deflector. . . . . . . . . . . . . . . . . . . . . . . . . . Copper
TFP298
