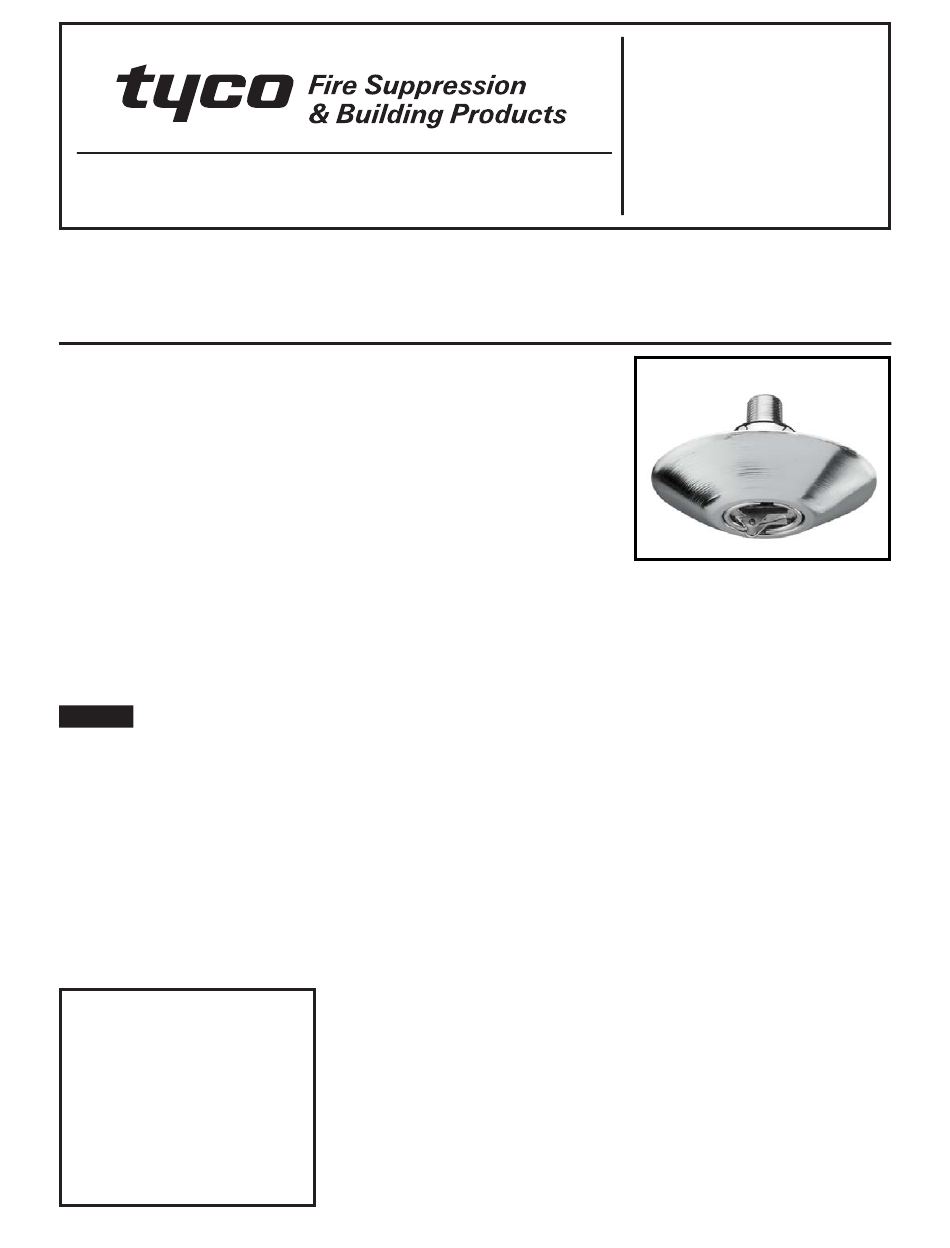

Model TFP PH2 — 5.6 K-factor
Institutional Pendent Sprinklers
Standard Response, Standard Coverage
General
Description
The Tyco ® Model TFP PH2, 5.6
K-factor, Institutional Pendent Sprin-
klers are standard response standard
coverage, fusible solder type spray
sprinklers designed for use in areas
such as correctional, detention, and
mental health care facilities.
The unique features of the Model TFP
PH2 provide a tamper resistant sprin-
kler design that helps eliminate the
opportunity for individuals to injure
themselves or others with the compo-
nents of a fire sprinkler. At the same
time, the Model TFP PH2 optimizes an
aesthetically appealing flush design
that conceals most of the operating
parts.
noTICe
The Model TFP PH2 Institutional Pen-
dent Sprinklers described herein must
be installed and maintained in compli-
ance with this document, as well as
with the applicable standards of the
National Fire Protection Association, in
addition to the standards of any other
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with any
questions.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently dam-
age a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
Sprinkler
Identification
number (SIn)
TY3290
Technical
Data
Approvals
UL and C-UL Listed
NYC under MEA 351-01-E
(Refer to the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Inlet Thread Connection
1/2 inch NPT
Discharge Coefficient
1/2
K=5.6 GPM/psi (80,6 LPM/bar
Temperature Ratings
165°F/74°C or
212°F/100°C
Finishes
Sprinkler: Chrome Plated
Escutcheon: Chrome Plated
Physical Characteristics
Body . . . . . . . . . . . . . . . . . . . . . Brass
Deflector. . . . . . . . . . . . . . . . . Bronze
Deflector Reinforcement . . . . Bronze
Deflector Post. . . . . . . . . . . . . Bronze
Deflector Post Pin . . . . . . . . . Bronze
Deflector Core . . . . . . . . . . . . Bronze
Compression Screw. . . . . . . . Bronze
Lever. . . . . . . . . . . . . . . . . . . . Bronze
Release Spring . . . . . . . . . . . . Bronze
Core Sleeve . . . . . . . . . . . . . . Copper
Sealing Assembly. . . . . . . . . . . . . . . .
. . . . . . . . . Beryllium Nickel w/ Teflon
Fusible Element . . . . . . . . . . . . . . . . .
. . . . . Solder, Copper, Stainless Steel
Dust Cover . . . . Chrome Plated Steel
† DuPont Registered Trademark
JULY 2009
operation
In the standby condition, the design
of the Model TFP PH2 is such that a
dynamic load of 80 lbs. (36 kg) or more
applied to the linkage mechanism will
release the sprinkler. Also, when prop-
erly installed, the escutcheon is held
fast to the ceiling to deter its removal.
1/2
)
The shape of the escutcheon cannot
be easily grasped, which further de-
ters tampering.
A fusible solder operating element se-
cures the linkage mechanism of the
Model TFP PH2. When the rated tem-
perature is reached, the solder melts,
releasing the linkage mechanism that
holds the sprinkler closed. This allows
the deflector to extend downward and
water to flow.
Design
Criteria
The Tyco ® Model TFP PH2, 5.6
K-factor, Institutional Pendent Sprin-
klers (TY3290) are intended for use
with fire protection systems designed
in accordance with the standard in-
†
stallation rules recognized by the ap-
plicable Listing or Approval agency
(for example, Listing is based on NFPA
13 requirements).
TFP650
