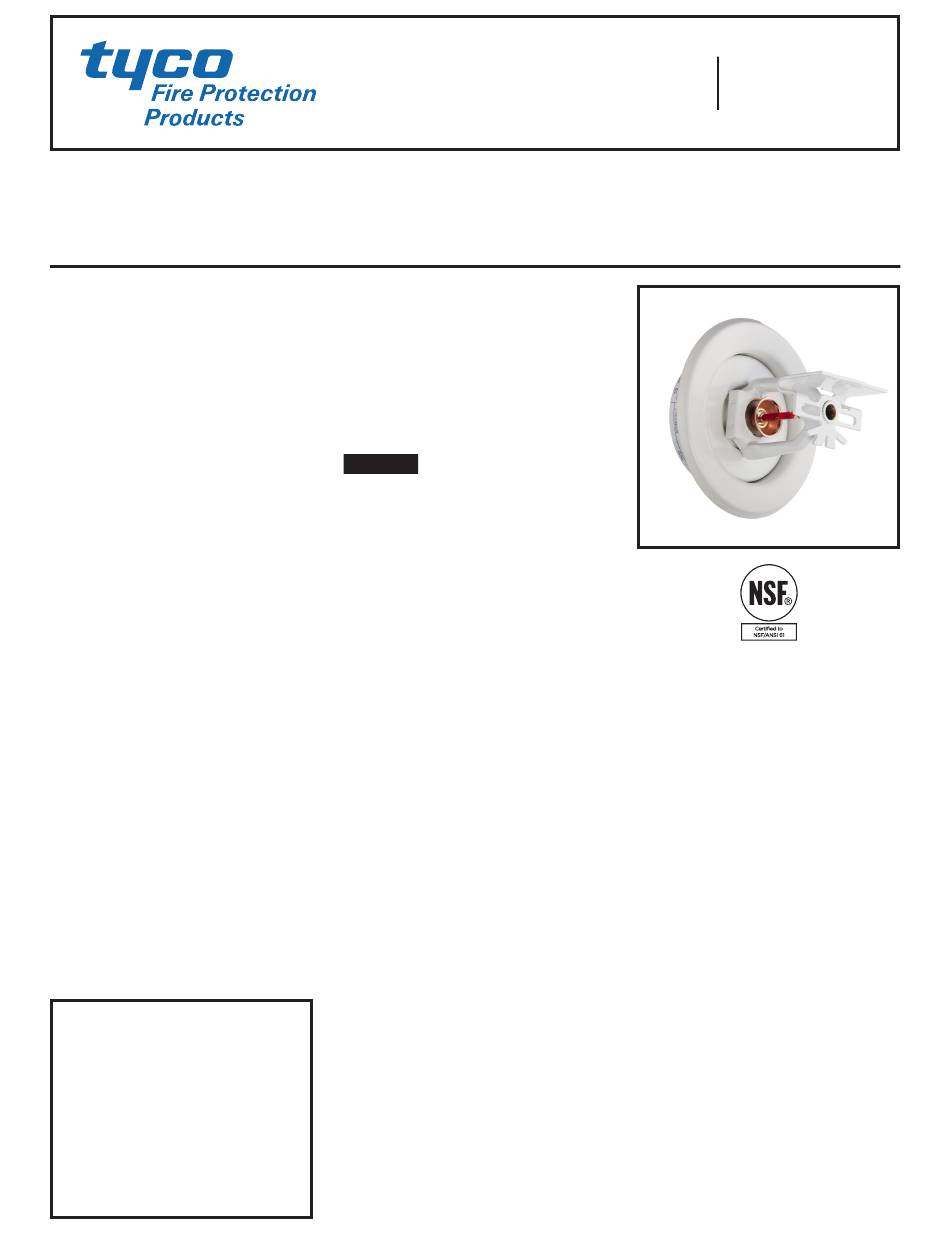

Tyco RAPID RESPONSE LFII Series General Description Manual

RAPID RESPONSE Series LFII Residential Sprinklers
5.6 K-factor Horizontal Sidewall, NFPA 13 Optimized
Wet Pipe Systems
General
Description
The TYCO RAPID RESPONSE Series
LFII (TY3334) Residential Horizontal
Sidewall Sprinklers are decorative,
fast response, frangible bulb sprin-
klers designed for use in residential
occupancies such as homes, apart-
ments, dormitories, and hotels. When
enhanced flow characteristics for resi-
dential portions of any occupancy per
NFPA 13 is the major consideration, the
Series LFII (TY3334) should be the first
choice.
When higher flow demands are
required for residential sprinklers used
in an NFPA 13 design, the large 5.6
K-factor of the Series LFII (TY3334) is
an attractive choice. Although mostly
intended where residential sprinklers
are to be used in an NFPA 13 design,
the Series LFII (TY3334) can also be
used in wet pipe residential sprin-
kler systems for one- and two-family
dwellings and mobile homes per NFPA
13D, and wet pipe residential sprinkler
systems for residential occupancies up
to and including four stories in height
per NFPA 13R.
The recessed version of the Series
LFII (TY3334) is intended for use in
areas with finished walls. It employs
a two-piece Style 20 Recessed
Escutcheon. The Recessed Escutch-
eon provides 1/4 inch (6,4 mm) of
recessed adjustment or up to 1/2 inch
(12,7 mm) of total adjustment from the
flush mounting surface position. The
adjustment provided by the Recessed
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
Escutcheon reduces the accuracy to
which the pipe nipples to the sprinklers
must be cut.
The Series LFII (TY3334) has been
designed with heat sensitivity and
water distribution characteristics
proven to help in the control of residen-
tial fires and to improve the chance for
occupants to escape or be evacuated.
NOTICE
The Series LFII (TY3334) Residen-
tial Horizontal Sidewall Sprinklers
described herein must be installed
and maintained in compliance with
this document and with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted with
any questions.
Sprinkler
Identification
Number (SIN)
TY3334
JANUARY 2016
Worldwide
www.tyco-fire.com
Contacts
Technical
Data
Approvals
UL and C-UL Listed
Certified to all requirements of
NSF/ANSI 61
(Refer to the Design Criteria section for
details on these approvals.)
Maximum Working Pressure
Maximum 175 psi (12,1 bar)
Temperature Rating
155°F (68°C) or 175°F (79°C)
Discharge Coefficient
K= 5.6 GPM/psi 1/2 (80,6 LPM/bar
Finishes
Natural Brass, Pure White, Signal White, or
Chrome Plated
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Brass
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Copper
Sealing Assembly . Beryllium Nickel w/ TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . .3 mm dia. Glass
Compression Screw . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
1/2 )
