Vyper-KV
USER GUIDE

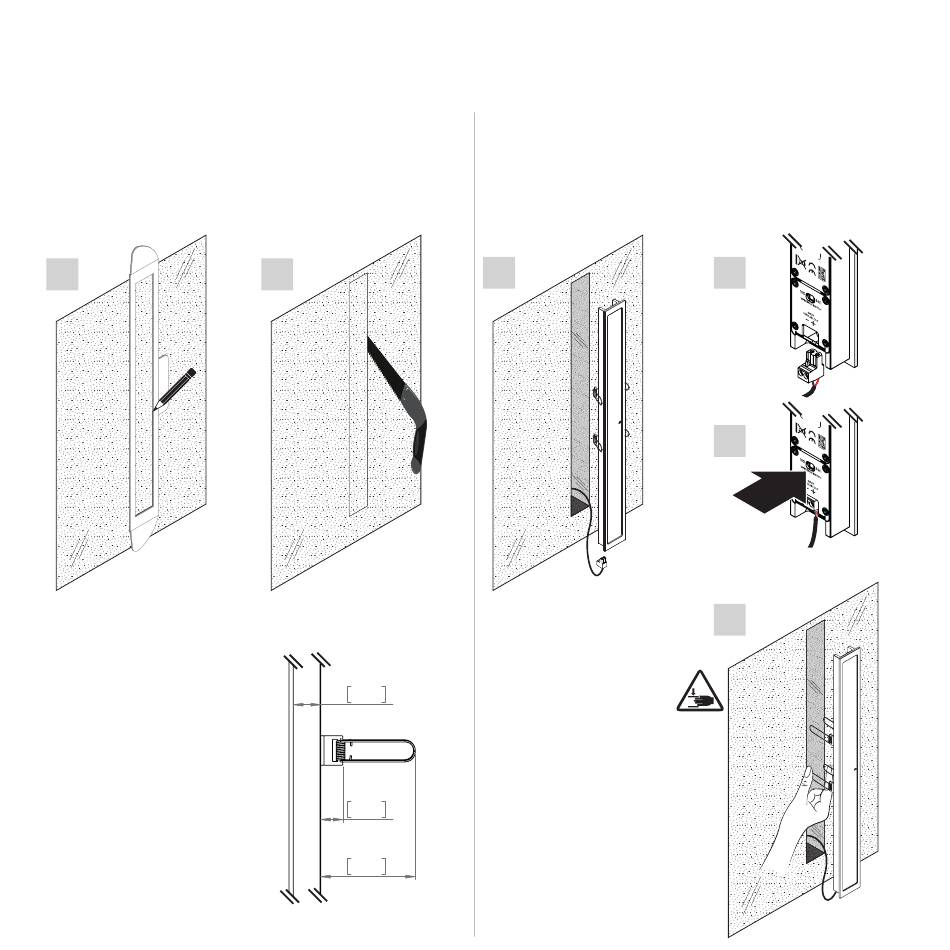

In-wall installation

A. Cut the drilling template out of the packaging box.
B. Lay the drilling template on the mounting surface taking
care to properly align it vertically.
C. Mark the cutting edge of the recess on the surface.
C
50mm
1,9in
D. Cut the surface taking care
of respecting the shape
tolerance for fitting the
loudspeaker accordingly.
Ensure that the depth of the
recess is wide enough to fit
the loudspeaker and its spring
clips, namely deeper than
83 mm (3.27 in).
12
D
3mm 19mm
0,1in 0,7in
19mm
0,7in
15mm
0,6in
64mm
2,5in
E. Set the loudspeaker cable wirings and head them with the
connector matching the loudspeaker signal polarity.
F. Set the proper loudspeaker impedance.
G. Connect the loudspeaker to the wiring.
E
H. Gently unfold
the spring clips
and insert the
loudspeaker on the
recess.
F
G
H
