Surface mounting installation

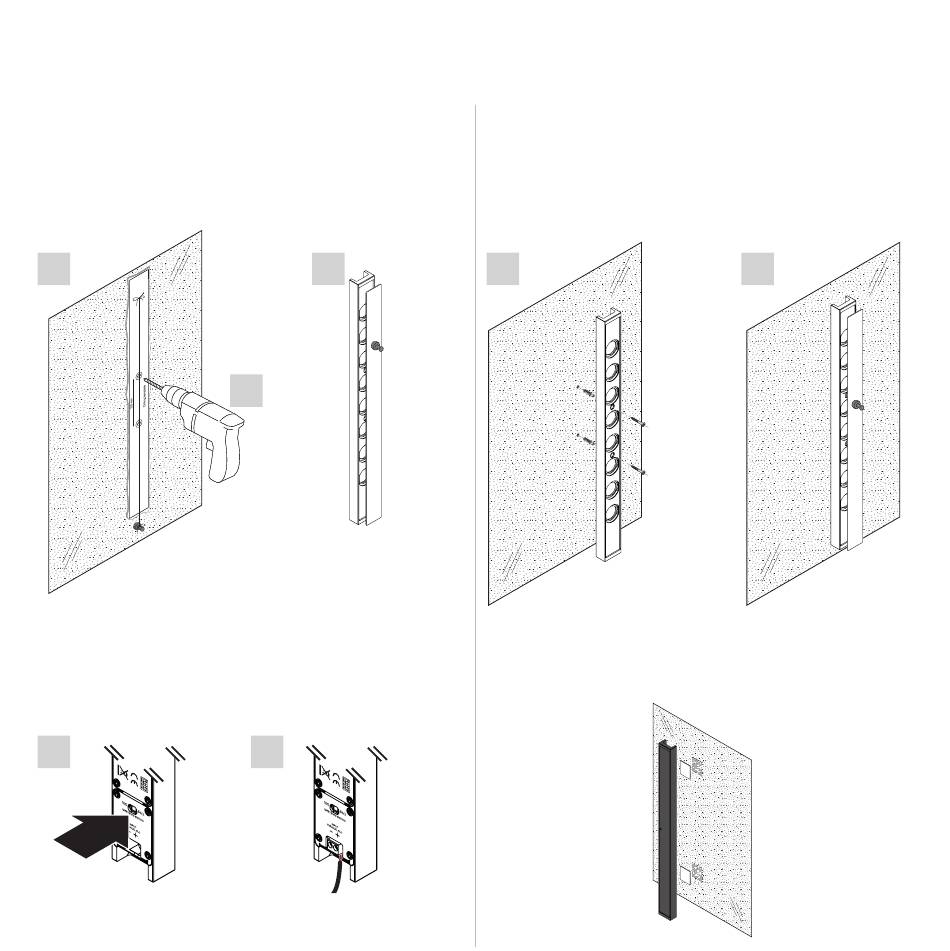

1. Cut the drilling template out of the packaging box.
2. Lay the drilling template on the mounting surface taking
care to properly align it vertically.
3. Drill on the surface the proper number of holes.
2
4. Use the small magnet to remove the grill from the
loudspeaker.
5. Set the proper loudspeaker impedance.
6. Connect the loudspeaker to the wiring.
5
4
3
6
7. Uses dowels and screws to fix the loudspeaker to the
surface.
8. Reposition the grill on the loudspeaker.
7
Alternatively, use the drilling template to mark the surface and
install the loudspeaker with the reclosable fastener adhesive
pairs.
Passing Through
Fixing Points
Passing Through
Fixing Points
16Ω 64Ω
IMPEDENCE SWITCH
