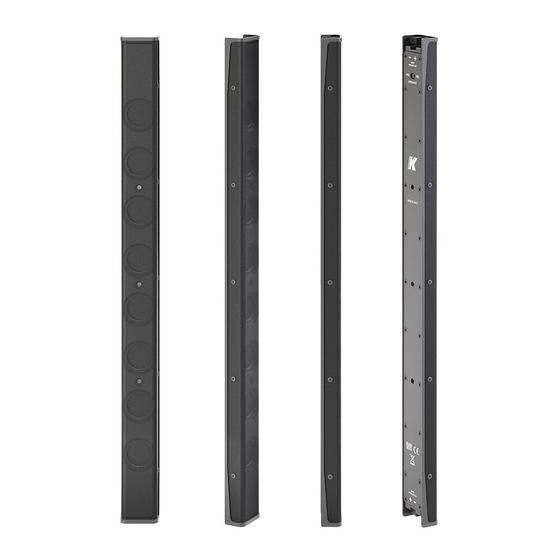

- Page 1 Vyper USER GUIDE Ultra-flat aluminum line array element Vyper-KV25 Vyper-KV52...
- Page 2 KV25-KV52_uguide_1.2...
-
Page 3: Table Of Contents
Vyper User Guide Index Unpacking Setup Quick Start Guide Vyper-KV25 / Vyper-KV52 single-unit Setup Multiple Vyper-KV52 Line Array Setup Installation Installation with Reclosable Fastener Adhesive Installation with Brackets Installation without Brackets Joining Multiple Vyper-KV52 Connecting Connecting Multiple Vyper-KV52 Impedance Settings... - Page 4 The lighting flash with arrowhead symbol within an without prior authorization. equilateral triangle is intended to alert the user to the • K-array cannot be held responsible for damage caused by improper use presence of uninsulated, dangerous voltage within of the loudspeakers.
- Page 5 K-array distributor in your country. The Vyper line is the flatest speaker in the K-array portfolio. The passive speaker system is housed in an elegant and resistant aluminum frame turned on a lathe from a solid metal block.
-
Page 6: Unpacking
User Guide Unpacking Setup Each K-array product is built to the highest standard and The Vyper-KV25 and the Vyper-KV52 loudspeakers perform thoroughly inspected before leaving the factory. Upon arrival, best when positioned on a planar surface such as a wall. -
Page 7: Quick Start Guide
Vyper User Guide Quick Start Guide Vyper-KV25 / Vyper-KV52 single-unit Setup Multiple Vyper-KV52 Line Array Setup Follow these instructions to properly install the loudspeaker: Follow these instructions to properly install the loudspeaker: 1. Unpack the loudspeaker and set the accessories aside 1. -
Page 8: Installation
Vyper User Guide Installation Installation with Reclosable Fastener Adhesive 2. Drill four 4 mm (0.15 in) diameter holes in the surface The reclosable fastener adhesive are intended for quick and following the drilling template; clean installation on flat surfaces. [ 0 . 1 Two couples of adhesives are provided, ensuring strong, KV25 KV52... -
Page 9: Installation Without Brackets
User Guide Installation without Brackets 3. Use the proper screw and plug for mounting the The Vyper-KV25 and the Vyper-KV52 loudspeakers can be loudspeaker on the surface; eventually installed without brackets, taking advantage of the M5 through holes hidden by the outer grill. This entitles to use either a proper screw with 4 mm (0,16 in) max diameter, or a M5 bolt, according to the mounting surface. -
Page 10: Joining Multiple Vyper-Kv52
Vyper User Guide Joining Multiple Vyper-KV52 The two included joining plates allow to join two Vyper-KV52 units together to create a longer array. Use four M3x6mm screws included in one package to join the two speakers. The remaining M3x6mm screws from the second loudspeaker package can be used for wall mounting the array with a couple of brackets. -
Page 11: Connecting
Connecting Connecting Multiple Vyper-KV52 The top and the bottom connectors of the Vyper-KV52 are The Vyper-KV25 and Vyper-KV52 feature euroblock 2 pin paralleled so that the input signal can pass through the Phoenix inlet for easy connectivity and link. loudspeaker to fed another Vyper-KV52. -
Page 12: Loudspeakers In Parallel
K-array’s Kommander line of amplifiers featuring built-in By connecting the loudspeakers in parallel it is possible to DSP will operate the Vyper-KV25 and Vyper-KV52 at their drive many loudspeakers with the same audio signal by optimized performance only with the proper preset. -
Page 13: Service
Service To obtain service: 1. Please have the serial number(s) of the unit(s) available for reference. 2. Contact the official K-array distributor in your country: find the Distributors and Dealers list on K-array website. Please describe the problem clearly and completely to the Customer Service. -
Page 14: Mechanical Drawings
Vyper User Guide Mechanical drawings Vyper-KV25 M3x6 mm ISO7380 2 mm Hex key M3x6 mm Torx T10 key 40mm 22mm 1,6in 0,8in... -
Page 15: Vyper-Kv52
Vyper User Guide Vyper-KV52 M3x6 mm ISO7380 2 mm Hex key M3x6 mm Torx T10 key 40mm 22mm 1,6in 0,8in... -
Page 16: Technical Specifications
Vyper User Guide Technical specifications Vyper-KV25 General Type Line array Drivers 4 x 1” neodymium magnet woofers Frequency Response 150 Hz – 18 kHz (-6 dB) Rated Power 75 W Maximum SPL 108 dB (peak) Nominal Impedance 8 Ω / 32 Ω selectable... - Page 17 Vyper User Guide Vyper-KV52 General Type Line array Drivers 8 x 1” neodymium magnet woofers Frequency Response 150 Hz – 18 kHz (-6 dB) Rated Power 150 W Maximum SPL 114 dB (peak) Nominal Impedance 16 Ω / 64 Ω selectable Crossover External crossover required Coverage...
- Page 18 This page left intentionally blank...
- Page 20 Designed and Made in Italy K-ARRAY surl Via P. Romagnoli 17 | 50038 Scarperia e San Piero - Firenze - Italy ph +39 055 84 87 222 | info@k-array.com www.k-array.com...
