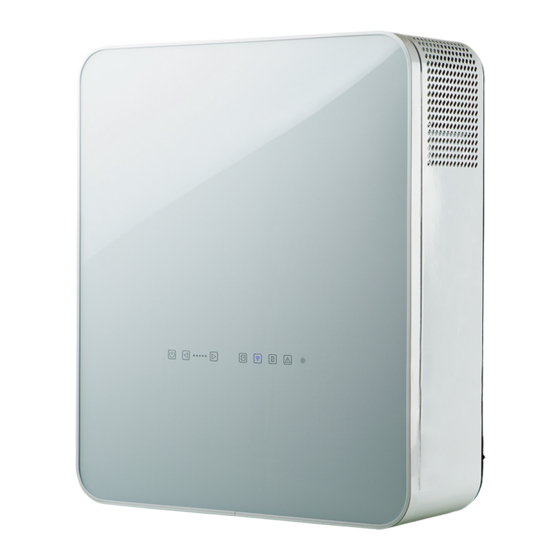

- Page 1 USER’S MANUAL Micra 100 WI-FI Heat recovery air Handling unit...
-
Page 2: Table Of Contents
Micra100 Wi-Fi CONTENTS Purpose ........................................ 5 delivery set ......................................5 designation key ....................................5 technical data ....................................6 design and operating principle ............................7 installation and set-up................................8 connection to power mains ..............................12 control ......................................... 13 technical maintenance ................................17 troubleshooting ..................................... - Page 3 this unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. children should be supervised to ensure that they do not play with the unit.
- Page 4 it.
-
Page 5: Purpose
PURPOSE the unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
THE EXTRACT AIR TEMPERATURE SHOULD BE NO HIGHER THAN +40 °C AND RELATIVE HUMIDITY SHOULD NOT EXCEED 70 % OVER THE ENTIRE TEMPERATURE RANGE. Parameter Micra 100 Wi-Fi Micra 100 E Wi-Fi Micra 100 E1 Wi-Fi Micra 100 E2 Wi-Fi... -
Page 7: Design And Operating Principle
Parameter Micra 100 ERV Wi-Fi Micra 100 E ERV Wi-Fi MIcra 100 E1 ERV Wi-Fi Micra 100 E2 ERV Wi-Fi Maximum air capacity [m Supply voltage [v/50 (60) Hz] 1~ 110-240 1~ 230 1~ 230 1~ 230 Maximum fan power [W] Sound pressure level at 3 m distance [dBa] preheating electric heater power [W]... -
Page 8: Installation And Set-Up
Micra 100 Wi-Fi and Micra 100 e1 Wi-Fi unit models without a preheater is achieved by automatic supply fan speed reduction according to extract air sensor readings. - Page 9 Hole spacing template ADDITIONAL HOLE! DRILL UPON CUSTOMER’S REQUEST ONLY! ADDITIONAL HOLE! DRILL UPON CUSTOMER’S REQUEST ONLY! Ø 120 mm hole for Ø 100 mm air duct Ø 120 mm hole for Ø 100 mm air duct Fill the gaps between the wall and the air ducts Fill the gaps between the wall and the air ducts with a mounting foam with a mounting foam...
- Page 10 Micra100 Wi-Fi 2.1. remove the mounting template and drill two through holes Ø 120 mm for round air ducts. When mounting the unit with an additional extract spigot prepare a hole in the wall for a connecting bend and for laying of a rectangular air duct. a connecting bend, rectangular and round air ducts are available separately.
- Page 11 to install an additional extract spigot, remove the plug on the rear part of the unit. undo the screws, remove the plug and fix a spigot on its place using screws. 6. Caution! Install the condensate preheater before fixing the unit to the wall (see the Installation manual of the heater).
-
Page 12: Connection To Power Mains
Micra100 Wi-Fi CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 13: Control
CONTROL the unit is controlled by means of a control panel on the unit casing, a remote control or via mobile application. Control panel 1. The unit is switched on/off using 2. Ventilation modes can be controlled by the buttons. buttons change the ventilation mode within five speeds. - Page 14 Micra100 Wi-Fi 7. In emergency situations, the unit turns off and the indicator flashes an alarm code. Alarm code Alarm description — — — — — outside temperature sensor missing — — — — • Short circuit of the outside air temperature sensor —...
- Page 15 Store, Play Market or via the Qr code. vents Home – app Store vents Home – Play Market WI-FI TECHNICAL DATA...
- Page 16 Micra100 Wi-Fi Filter Filter timer setting is available. When the set time (70-365 days) has elapsed, the filter change indicator appears and filter replacement information is displayed in the alarms menu. this timer can be turned off. if the unit is equipped with filter contamination pressure switches, after the timer is turned off filter contamination control will be carried out only by the pressure switches.
-
Page 17: Technical Maintenance
TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION Maintenance operations of the unit are required 3-4 times per year. Maintenance includes periodic dust removal from surfaces, cleaning and replacement of filters and dry cleaning of fans. -
Page 18: Troubleshooting
Micra100 Wi-Fi 3. Fan maintenance (once a year). even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. clean the fan with a cloth or a soft brush. do not use water, aggressive solvents, or sharp objects as they may damage the impeller. -
Page 19: Manufacturer's Warranty
MANUFACTURER’S WARRANTY the product is in compliance with eu norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of electromagnetic compatibility (eMc) directive 2014/30/eu of the european Parliament and of the council, low voltage directive (lvd) 2014/35/eu of the european Parliament and of the council and ce-marking council directive 93/68/eec. - Page 20 Micra100 Wi-Fi www.ventilation-system.com...
-
Page 21: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Heat recovery air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date this is to certify acceptance of the complete unit delivery with the user’s manual. the warranty terms are acknowledged and accepted. - Page 22 v73-9en-07...
