Summary of Contents for Vents Breezy Eco 160

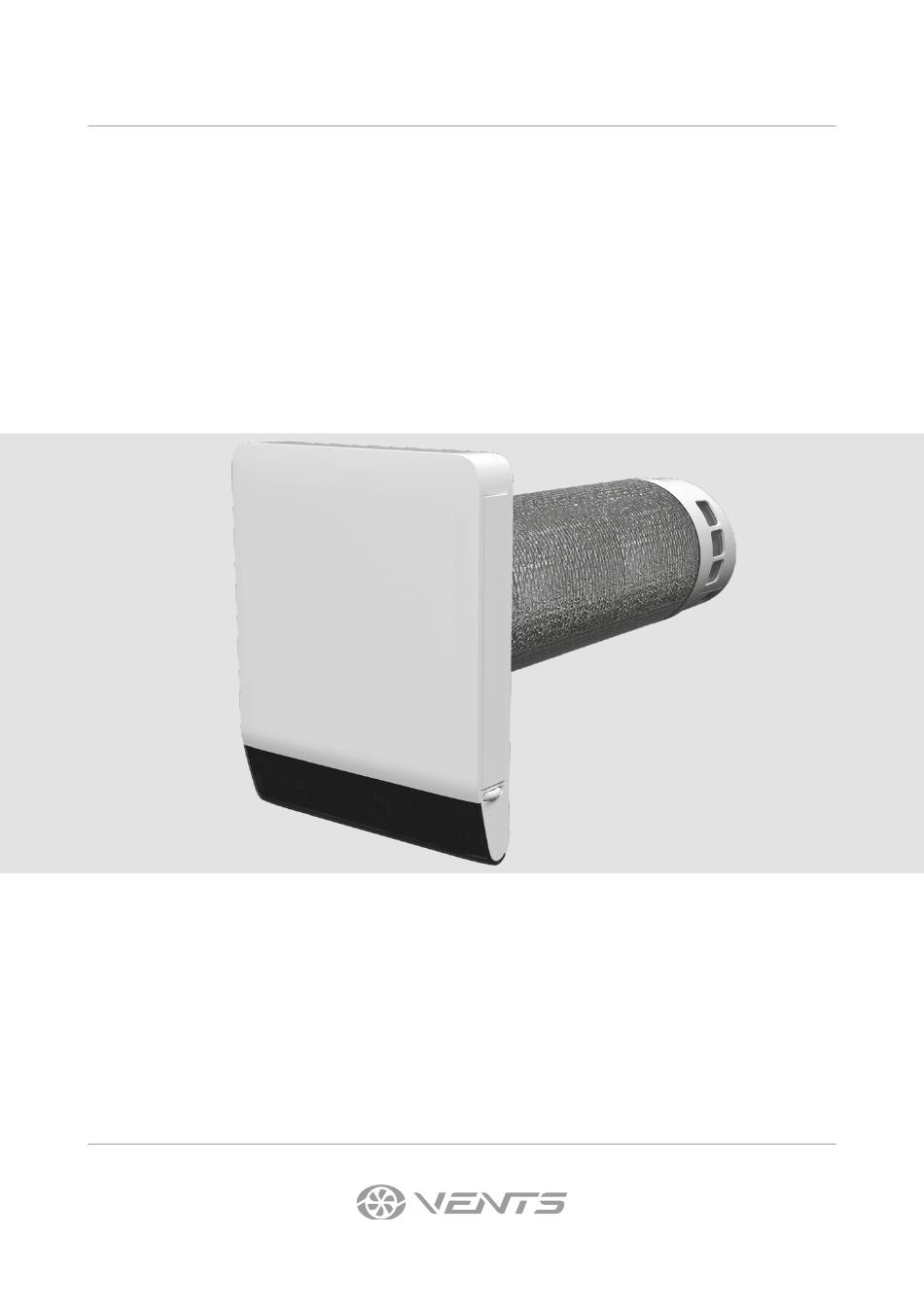

- Page 1 USER’S MANUAL Breezy Eco 160 Breezy Eco 160 L07 Breezy Eco 160-E Breezy Eco 160-E L07 Breezy Eco 160 L055 Breezy Eco 160 L1 Breezy Eco 160-E L055 Breezy Eco 160-E L1 Decentralized Heat Recovery Unit...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the Breezy Eco 160(-E) (L055/L07/L1) unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. - Page 3 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 4: Purpose
Breezy Eco 160(-E) (L055/L07/L1) PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafés and other domestic and public premises. The ventilator is equipped with a heat exchanger that enables supply of fresh filtered air heated by recovering heat from extract air. -
Page 5: Technical Data
Breezy Eco 160(-E) (L055/L07/L1) TECHNICAL DATA The temperature in the room where the indoor unit is installed must be in the range from +1 ˚C to +40 ˚C with relative humidity up to 70 % (no condensation build-up). If the conditions of use of the unit are outside the specified limits, turn off the unit. Provide fresh air supply through windows. -
Page 6: Design And Operating Principle
Breezy Eco 160(-E) (L055/L07/L1) DESIGN AND OPERATING PRINCIPLE The product consists of the operating module (item 1) with the outdoor housing and protective hood assembly (item 2). The operating module contains fans, heat exchangers, heaters and the control system. The operating module of the product contains two air ducts, each has a fan and a heat exchanger. Air can traverse each air duct into the room or to the outside. - Page 7 Breezy Eco 160(-E) (L055/L07/L1) Models labelled as L055; L07; L1 feature an air duct extension node. When using these models, it is possible to manually shorten the product before mounting so that the value L mentioned on the figure in the “Technical data” section equals the wall thickness.
-
Page 8: Mounting And Set-Up
If you can access the mounting site from the external wall side, a compensator pad can be used (delivered separately). The figure below illustrates a set of compensator pads and an example of their use for the Breezy Eco 160 unit in a wall under 440 mm thick. - Page 9 For as optimal match between the product length and wall thickness as possible, when the outdoor wall side is inaccessible, cut theoutdoor housing and extension node for Breezy Eco 160(-E) L055/07/1 models. The allowed values for wall thickness are specified in the table below.
- Page 10 Breezy Eco 160(-E) (L055/L07/L1) 1. Prepare a round core hole with a diameter of 172 mm in the outer wall with a downward slope towards the outside. min 300 3 º min 300 2. Detach the outdoor housing from the operation module.
- Page 11 Breezy Eco 160(-E) (L055/L07/L1) 4. To remove the bottom panel (item 1), pull the bottom edge towards yourself. Remove the upper decorative panel (item 2) from the work module by unscrewing the corresponding screws. 5. Put the mounting template on the wall. Align it with a building level. Afterward, mark the openings to insert dowels from the mounting kit and drill the holes of required depth.
-
Page 12: Connection To Power Mains
Breezy Eco 160(-E) (L055/L07/L1) CONNECTION TO POWER MAINS The unit is designed for connection to power mains with the parameters specified in the “Technical data” section. The unit is connected using a power cord with a mains plug pre-installed by the manufacturer, or through fixed wiring. -
Page 13: Unit Control
Breezy Eco 160(-E) (L055/L07/L1) UNIT CONTROL The product can be controlled using the remote control, a mobile app via Wi-Fi, the Google Assistant and Amazon Alexa. Before turning on the unit, open the rotating dampers on the indoor part of the product. - Page 14 Breezy Eco 160(-E) (L055/L07/L1) Connecting a mobile device to the unit The application is available for download at App Store, Play Market or via the QR code. Vents Home – App Store Vents Home – Play Market To start controlling the product, first connect to it as a Wi-Fi access point with the name FAN: + 16 characters of the ID number indicated on the control board and on the unit casing.
- Page 15 The sensor has a temperature measurement error of ±2 °C. Reheating for Breezy Eco 160-E models The product has a built-in electric heater that can be used to increase the supply air temperature.
-
Page 16: Technical Maintenance
Breezy Eco 160(-E) (L055/L07/L1) TECHNICAL MAINTENANCE Maintenance of the unit means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. To access the filters, remove the decorative panels from the work unit. Remove the filters. -
Page 17: Storage And Transportation Regulations
Breezy Eco 160(-E) (L055/L07/L1) Replacement of the remote control battery (if necessary). No response of the unit for pressing the remote control buttons indicates the need to replace the battery. The battery type is CR2025. Remove the holder with the battery from the lower part of the remote control. -
Page 18: Manufacturer's Warranty
Breezy Eco 160(-E) (L055/L07/L1) MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 19: Certificate Of Acceptance
Breezy Eco 160(-E) (L055/L07/L1) CERTIFICATE OF ACCEPTANCE Unit Type Decentralized Heat Recovery Unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 V271EN-01...
