USER'S MANUAL
Micra 100 WI-FI
Heat recovery air Handling unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micra 100 WI-FI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vents Micra 100 WI-FI

Summary of Contents for Vents Micra 100 WI-FI

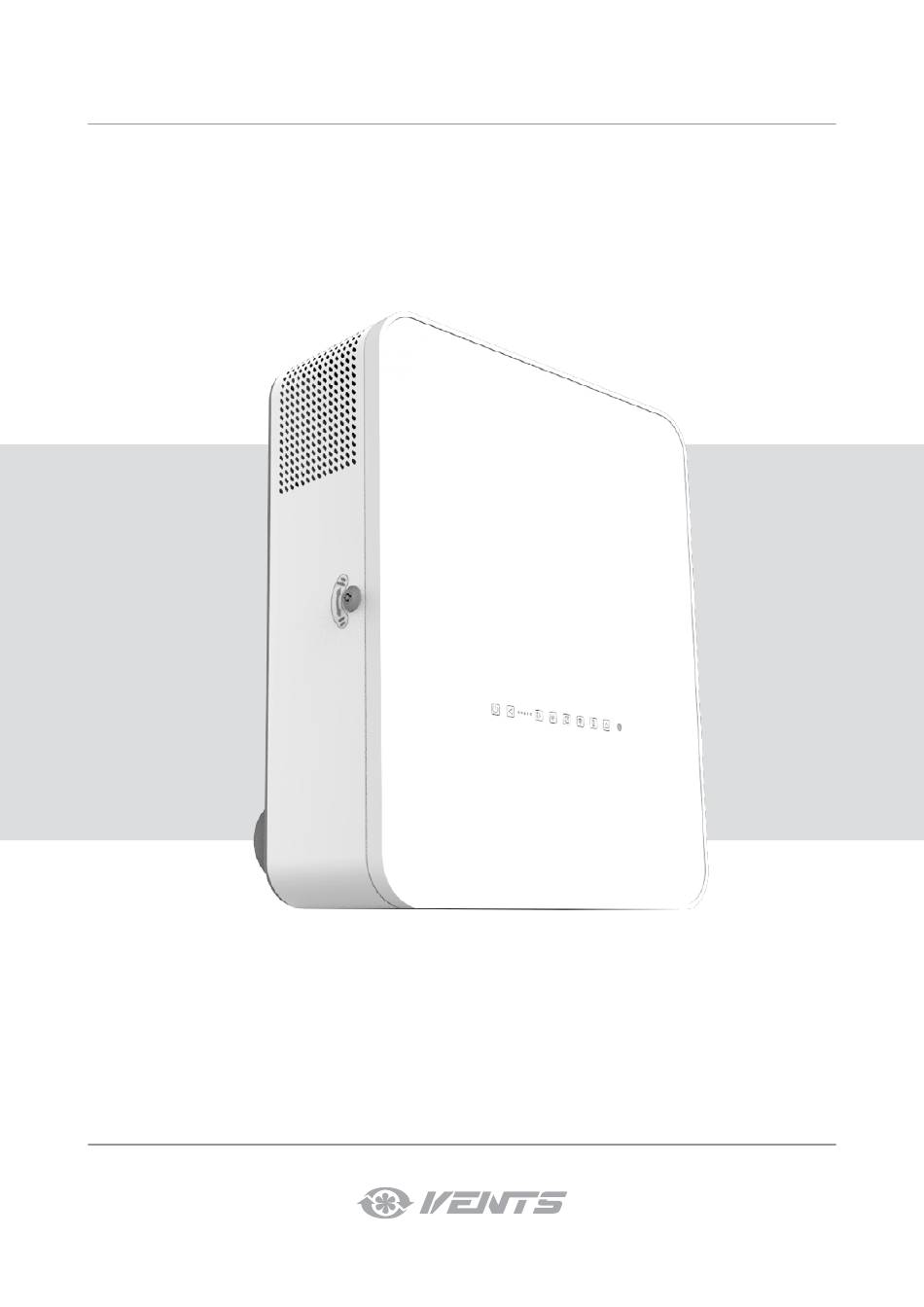

  • Page 1 USER’S MANUAL Micra 100 WI-FI Heat recovery air Handling unit...

  • Page 2: Table Of Contents

    Micra100 Wi-Fi CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 delivery set ......................................5 designation key ....................................5 technical data ....................................6 design and operating principle ............................7 installation and set-up................................8 connection to power mains ..............................12 control ......................................... 13 technical maintenance ................................

  • Page 3: Safety Requirements

    SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • all user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit.
  • Page 4 Micra100 Wi-Fi • do not allow children to operate the unit. • the unit is allowed to be used by children aged from 8 years oldand above and persons with reduced physical, sensory, • disconnect the unit from or mental capabilities or no power mains prior to any experience and knowledge technical maintenance.

  • Page 5: Purpose

    PURPOSE the unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.

  • Page 6: Technical Data

    THE EXTRACT AIR TEMPERATURE SHOULD BE NO HIGHER THAN +40 °C AND RELATIVE HUMIDITY SHOULD NOT EXCEED 70 % OVER THE ENTIRE TEMPERATURE RANGE. Parameter Micra 100 Wi-Fi Micra 100 E Wi-Fi Micra 100 E1 Wi-Fi Micra 100 E2 Wi-Fi...

  • Page 7: Design And Operating Principle

    Parameter Micra 100 ERV Wi-Fi Micra 100 E ERV Wi-Fi MIcra 100 E1 ERV Wi-Fi Micra 100 E2 ERV Wi-Fi Maximum air capacity [m Supply voltage [v/50 (60) Hz] 1~ 110-240 1~ 230 1~ 230 1~ 230 Maximum fan power [W] Sound pressure level at 3 m distance [dBa] preheating electric heater power [W]...

  • Page 8: Installation And Set-Up

    Micra 100 Wi-Fi and Micra 100 e1 Wi-Fi unit models without a preheater is achieved by automatic supply fan speed reduction according to extract air sensor readings.
  • Page 9 Hole spacing template ADDITIONAL HOLE! DRILL UPON CUSTOMER’S REQUEST ONLY! ADDITIONAL HOLE! DRILL UPON CUSTOMER’S REQUEST ONLY! Ø 120 mm hole for Ø 100 mm air duct Ø 120 mm hole for Ø 100 mm air duct Fill the gaps between the wall and the air ducts Fill the gaps between the wall and the air ducts with a mounting foam with a mounting foam...
  • Page 10 Micra100 Wi-Fi 2.1. remove the mounting template and drill two through holes Ø 120 mm for round air ducts. When mounting the unit with an additional extract spigot prepare a hole in the wall for a connecting bend and for laying of a rectangular air duct. a connecting bend, rectangular and round air ducts are available separately.
  • Page 11 to install an additional extract spigot, remove the plug on the rear part of the unit. undo the screws, remove the plug and fix a spigot on its place using screws. 6. Caution! Install the condensate preheater before fixing the unit to the wall (see the Installation manual of the heater).

  • Page 12: Connection To Power Mains

    Micra100 Wi-Fi CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.

  • Page 13: Control

    CONTROL the unit is controlled by means of a control panel on the unit casing, a remote control or via mobile application. Control panel 1. The unit is switched on/off using 2. Ventilation modes can be controlled by the buttons. buttons change the ventilation mode within five speeds.
  • Page 14 Timer on/off operation on/off operation on/off Unit control via the application on the mobile device the application is available for download at app Store https://itunes.apple.com/us/app/vents-micra/id1377555773 or Play Market https://play.google.com/store/apps/details?id=com.embarcadero.ventsMicra or via Qr codes. app Store download link Play Market download link...
  • Page 15 Wi-Fi technical data Standard ieFe 802,11, b/g/n Frequency band [gHz] transmission power [mW] (dBm) 100(+20) network dHcP Wlan safety WPa, WPa2 Following message is displayed if launching an application without connection to the unit: (FAN: + 16 characters of the ID number) after installing the application, connect the mobile device to the unit as to a Wi-Fi access point indicated on the control board and on the unit casing.
  • Page 16 Micra100 Wi-Fi Unit password change Menu ( Connection - At home. • go to • choose the connection and press • enter and confirm the password. characters allowed: 0…9, a…z, a…Z. Password” button. • Press the “Change Wi-Fi parameter setup Menu ( ) - Connection –...
  • Page 17 Client – the unit operates on the home router network. Client enter the home router details and the iP address type for the mode: • enter the name of the Wi-Fi home router access point. • enter the password for the Wi-Fi home router access point. Select an iP address type: DHCP: the iP address is set up automatically upon connection to the home router...
  • Page 18 Micra100 Wi-Fi MENU CONNECTION THROUGH CLOUD SERVER: open the mobile app and go to -> -> ADD NEW ACCOUNT • Press the button. • enter a login, a password and an e-mail address for password recovery. confirm the updated details by pressing •...
  • Page 19 Control buttons: — unit on/Standby. — Selection of pre-set speed. the Basic Settings Timers menu. — timer activation. timer settings are made in the Basic — Week-scheduled operation mode activation. the settings of this mode are made in settings Schedule menu.
  • Page 20 Micra100 Wi-Fi Date and time current time and date are displayed and adjusted in this menu. time display format: hh:mm:ss. date format: dd.mm.yyyy. — to enter the time and date manually. — the same time as in the mobile device will be automatically set.
  • Page 21 Engineering menu Air flow rate Boost air flow rate, preset speed mode are set in this section. Sensors this section displays the current status of all sensors: — outdoor air temperature. — supply air temperature. — extract air temperature upstream of the heat exchanger. —...
  • Page 22 Micra100 Wi-Fi Factory settings in this section you can reset your settings to the factory settings. communication with the unit may be lost after restoration. if necessary, reset your Wi-Fi connection. Alarms this section displays alarms and warnings. alarms are highlighted in red, warnings are highlighted in black. Alarm –...

  • Page 23: Technical Maintenance

    TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance operations of the unit are required 3-4 times per year. Maintenance includes periodic dust removal from surfaces, cleaning and replacement of filters and dry cleaning of fans. Maintenance includes general cleaning of the unit and the following operations: 1.

  • Page 24: Troubleshooting

    Micra100 Wi-Fi 3. Fan maintenance (once a year). even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. clean the fan with a cloth or a soft brush. do not use water, aggressive solvents, or sharp objects as they may damage the impeller.

  • Page 25: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY the product is in compliance with eu norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of electromagnetic compatibility (eMc) directive 2014/30/eu of the european Parliament and of the council, low voltage directive (lvd) 2014/35/eu of the european Parliament and of the council and ce-marking council directive 93/68/eec.

  • Page 26: Certificate Of Acceptance

    Micra100 Wi-Fi CERTIFICATE OF ACCEPTANCE Unit Type Heat recovery air handling unit Model Micra100 ________ Wi-Fi Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date this is to certify acceptance of the complete unit delivery with the user’s manual. the warranty terms are acknowledged and accepted.
