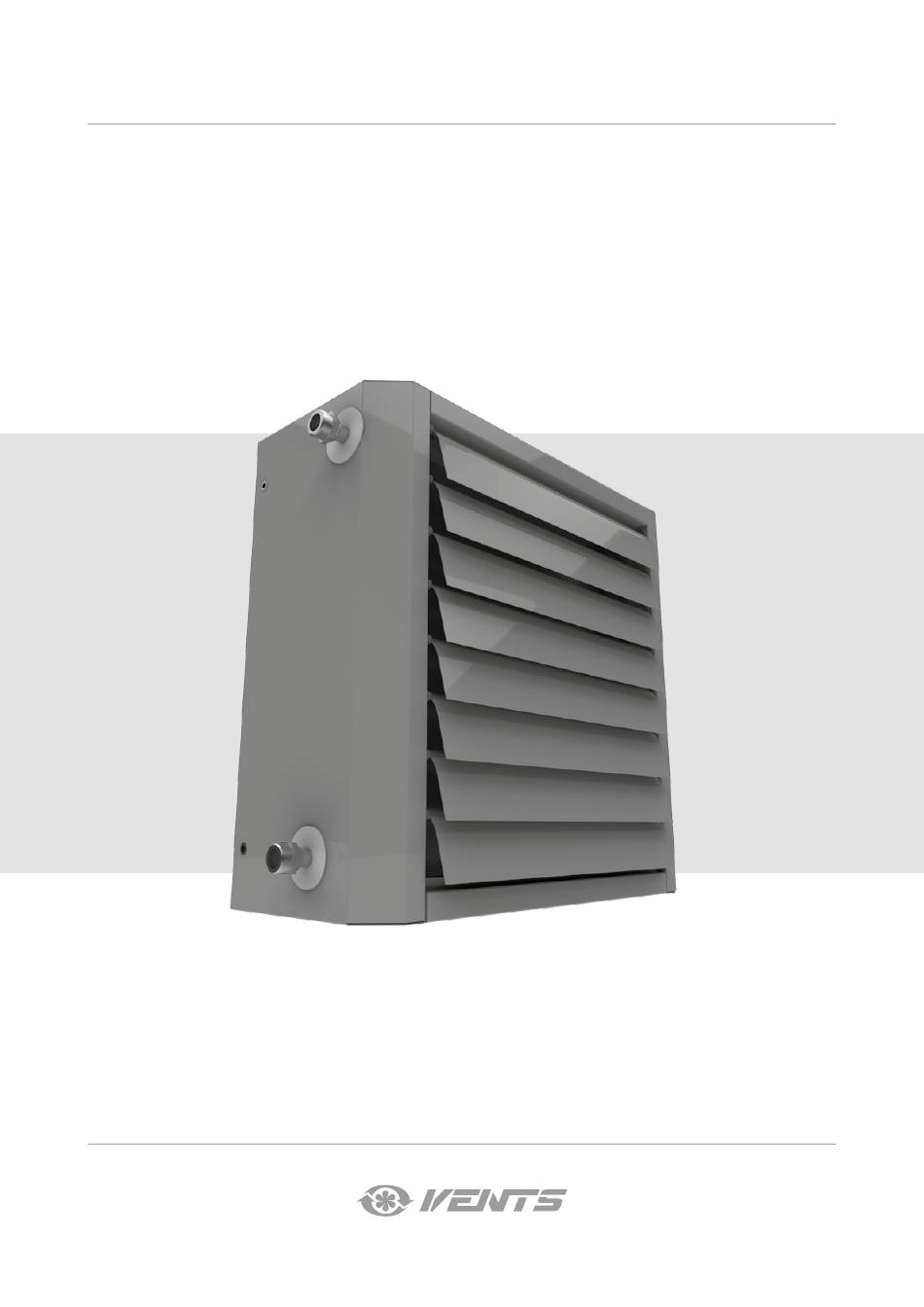

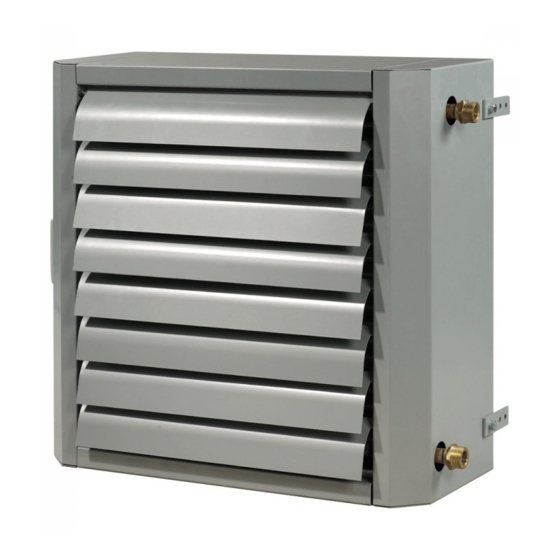

- Page 1 USER'S MANUAL AIR HEATING (COOLING) UNIT...
-
Page 2: Table Of Contents
CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................8 Mounting and set-up .................................. 9 Connection to power mains ..............................11 Technical maintenance ................................12 Troubleshooting ..................................... -
Page 3: Safety Requirements
SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. - Page 4 • Do not touch the unit controls • Do not wash the unit with with wet hands. water. • Do not carry out the • Protect the electric parts of the installation and maintenance unit against ingress of water. operations with wet hands. •...
-
Page 5: Purpose
AOW unit 1 pc. User’s manual 1 pc. Packing box 1 pc. Drain pipe 1 pc. (AOW 25, AOW 30, AOW 45) DESIGNATION KEY х х ХХ Heater power [kW] Material of the casing and component parts _: painted metal... -
Page 6: Technical Data
In summer season cold water is supplied to the heat exchanger, and during the heating period - hot water. The unit design is regularly improved, so some models may slightly differ from those ones described herein. AOW 25, AOW1 25, AOW 30, AOW1 30,... - Page 7 Temperature difference 90/70 °C Intake air Model Air flow [m temperature Output temperature Water pressure loss Power [kW] Water flow [m [°С] [°C] [kPa] 26.0 22.5 AOW 25 2200 21.0 18.0 11.4 27.0 11.2 22.9 AOW 30 3000 21.1 17.7 18.0 24.9 31.8...
-
Page 8: Design And Operating Principle
The AOW 25, AOW 30 and AOW 45 units must be equipped with a drain pipe. Fix the drain pipe to the unit bottom with rivets. The drain pipe and the rivets are supplied with the unit. -
Page 9: Mounting And Set-Up
FAILURE TO PROVIDE MINIMUM DISTANCE TO WALLS OR CEILING WILL IMPAIR THE UNIT AERODYNAMIC AND THERMAL CHARACTERISTICS AS WELL AS SERVICE LIFE OF THE UNIT. Mounting accessories: Model Mounting angles Bracket Multi-angle bracket AOW 25 MKP-AOW MK-AOW 25 MKU-AOW 25 AOW 30 MKP-AOW MK-AOW 30 MKU-AOW 30... - Page 10 INSTALLATION OF THE UNIT WITH AN MKP-AOW MOUNTING SET The MKP-AOW mounting set (not included in the delivery set) is used for ceiling mounting of the unit by means of the mounting studs or chains. Mounting stud min 300 mm INSTALLATION OF THE UNIT WITH MKP-AOW INSTALLATION OF THE UNIT WITH AN MKU-AOW MULTI-ANGLE BRACKET The MKU-AOW mounting multi-angle bracket (not included in the delivery set) is used for ceiling or wall mounting of the unit.
-
Page 11: Connection To Power Mains
CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. -
Page 12: Technical Maintenance
TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance means regular preventive measures during operations. The aluminium ribs must be cleaned of dirt and dust once a year with a wet cloth or a vacuum cleaner. If the internal environment is clean enough, the cleaning may be performed more seldom, as required. -
Page 13: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С to +40 ˚С and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 14: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 15: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type AIR HEATING (COOLING) UNIT Model AOW _______ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 V52EN-05...
