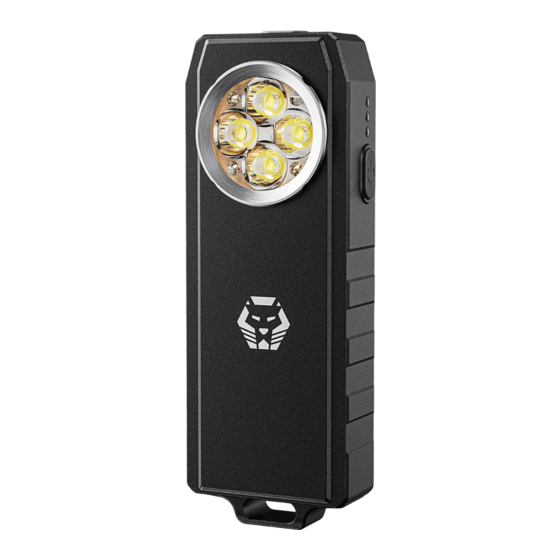

RovyVon Angel Eyes E300S User Manual

Features

Rectangle EDC Angle LED Flashlights
1.
Made of aluminum alloy with Hard Anodization III finish
2.
Oil cooling
3.
3 x CREE XP-G3 S5 LEDs, max output 2000 lumens
4.
3 x Nichia 219C LEDs, max output 1200 lumens
5.
Uses rechargeable Li-polymer 2200mAh battery
6.
Max runtime up to 25 days (Nichia version)
7.
Micro USB charging
8.
Breathing charging indicator and low battery indicator
9.
10. Over charge and discharge protection
11. Internal thermal control sensor
12. Ergonomic design for a comfortable
13. Heat dissipation and anti-slippery grooves
14. Strong detachable reversible pocket clip
15. Stand capability

Battery

Type
Lithium Polymer

Specifications

XP-G3 LEDs
Moonlight
5 lm
20 days
*The runtime was tested till the output step down to 1 lumen.
Turbo mode Graphic (Step down to 30 lumens)
3000
2000
1000
0
Nichia LEDs
Moonlight
1 lm
25 days
Angel Eyes E300S User Manual
Size
115034
Low Medium
60 lm 500 lm
1080 mins 200 mins
Output (Lumens)
Low Medium
50 lm 350 lm
1180 mins 260 mins

Applications

Everyday carry
1.
Headlamp*
2.
Chest pocket light
3.
Bike light*
4.
*Accessory for Headlamp and Bike light will come
soon.

Parameters

Body Material: 6063 aerospace aluminum alloy
Clip & bezel material: Stainless steel
Dimensions: L101mm x W36.7mm x H17.3mm
Weight: 96g
Accessories: 1 x 1m paracord, 1 x Clip, 1 x Micro USB
cable, 1 x extra USB port cover
Typical capacity
2200mAh
High Turbo
1000 lm 2000 lm
360 mins 210 mins
13500cd
197m
1.5m
/
High Turbo
800 lm 1200 lm
360 mins 215 mins
9500cd
147m
Standard voltage
4.2V
Strobe SOS
2000 lm /
/ /
Strobe SOS
1200 lm /
/ /
