RovyVon Aurora Ax User Manual

RovyVon Aurora Ax User Manual

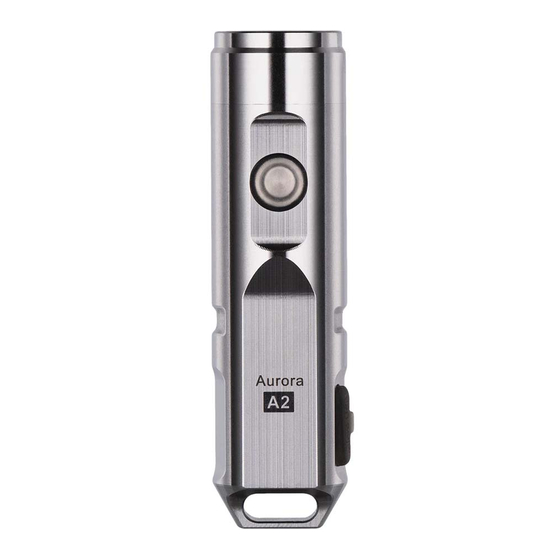

Keychain flashlight

Advertisement

Quick Links

Aurora Ax Keychain Flashlight User Manual (EN)
Parameters
LED: XP-G3 or 219C
Battery: 260mAh, 4.2V, 1.09wH
Material: A2x: Stainless steel; A3x: Aluminum; A4x: Titanium; A9: Copper
Weight: A2x: 1.26oz; A3x: 0.69oz; A4x: 0.81oz; A9: 1.37oz
Length: 2.26";
Accessory: User Manual, Key ring, Pocket clip, USB Cable, Lanyard, Warranty Card
Operation/User Interface
From off: Press and hold=Momentary On (High), release to turn off
From off: Double click=Constant On (Memory mode)
From on: Click=cycle thru moonlight-low-med-high
Turn On over 3mins: 1. Mode memorized; 2. Click=turn off
From on/off: Rapid Triple click=strobe, click to turn off
From on: press 0.3s=turn off
Note: When the light is working at High mode or Medium mode, it will step down
to 100 lumens in 100 seconds due to the massive heat generated.
Aurora Ax Schlüsselanhänger Taschenlampe Bedienungsanleitung
Parameter
LED: XP-G3 or 219C
Batterie: 260mAh, 4.2V, 1.09wH
Material: A2x: Edelstahl; A3x: Aluminium; A4x: Titan; A9: Kupfer
Gewicht: A2x: 35.7g; A3x: 19.5g; A4x: 24.7g; A9: 38.9g
Länge: 57.3mm
Zubehör:
Bedienungsanleitung,
Lanyard, Garantiekarte
Bedienung/Benutzeroberfläche
Aus: Drücken und halten=Momentary On (Hoch), Loslassen, um auszuschalten
Aus: Doppelklick=Konstant ein (Speichermodus)
Von so eins: Click=Zyklus durch Mondschein-niedrig-mittelhoch
Einschalten über 3 Min.: 1. Modus auswendig gelernt; 2. Click=ausschalten
Von ein/aus: Schneller Dreifachklick=strobe, klicken Sie, um auszuschalten
Von an: 0.3s=ausschalten
Hinweis: Wenn das Licht im Hoch- oder Mittelmodus arbeitet,
wird es aufgrund der erzeugten massiven Wärme in 100
Sekunden auf 100 Lumen herunterstufen.
Manuel d'utilisation de la lampe de poche Aurora Ax
Paramètres
LED: XP-G3 or 219C
Batterie: 260mAh, 4.2V, 1.09wH
Matériel: A2x: Acier inoxydable; A3x: Aluminium; A4x: Titane; A9: Cuivre
Poids: A2x: 35.7g; A3x: 19.5g; A4x: 24.7g; A9: 38.9g
Longueur: 57.3mm
Accessoire: Manuel d'utilisateur, Porte-clés, clip de poche, câble USB, lanyard,
carte de garantie
Interface opération/utilisateur
De l'off: Appuyez et maintenez -Momentary On (High), libération pour désactiver
De l'autre côté: Double click-Constant On (mode Mémoire)
À partir de là : Click-cycle thru moonlight-low-medium-high
Allumez 3mins: 1. Mode mémorisé; 2. Click-désactiver
De l'on/off : Triple clic rapide-strobe, cliquez pour désactiver
À partir de maintenant : appuyez sur 0.3s-éteindre
Remarque : Lorsque la lumière fonctionne en mode élevé ou
moyen, elle descend à 100 lumens en 100 secondes en raison
de la chaleur massive générée.
Aurora Ax llavero linterna manual de usuario (ES)
Parámetros
LED: XP-G3 or 219C
Batería: 260mAh, 4.2V, 1.09wH
Material: A2x: Acero inoxidable; A3x: Aluminio; A4x: Titanio; A9: Cobre
Peso: A2x: 35.7g; A3x: 19.5g; A4x: 24.7g; A9: 38.9g
Longitud: 57.3mm
Accesorio: Manual del usuario, llavero, clip de bolsillo, cable USB, cordón, tarjeta de
garantía
Interfaz de operación/usuario
Desde apagado: Mantenga pulsado el botón Momentary On (Alto), suelte para apagar
Desde apagado: Haga doble clic en Constante activado (modo memoria)
A partir de: Haga clic en ciclo a través de la luz de la luna-baja-media-alta
Activar más de 3 minutos: 1. Modo memorizado; 2. Haga clic en el botón de apagado
Desde encendido/apagado: Triple clic rápido-strobe, haga clic para desactivar
A partir de e-p.: pulse 0.3s-turn off
Nota: Cuando la luz está funcionando en modo Alto o Medio,
bajará a 100 lúmenes en 100 segundos debido al calor masivo
generado.
Ready to Go with What You Can Rely On
Diameter: 0.61"
Durchmesser: 15.6mm
Schlüsselanhänger,
Taschenclip,
Diamètre: 15.6mm
Diámetro: 15.6mm
Charging:
Highly recommend charging the light before the first use.
l
Indicator: Breathing blue is charging, Solid blue is fully charged.
l
Charging time: 70 minutes
l
Cutoff voltage: 2.4V
Note: If the battery is low, the indicator will come on Red to remind recharging, click
the button to turn the indicator off.
Warning!!
l
DO NOT look directly into the emitter when it's turned ON
l
DO NOT point the light at human eyes or animal eyes
l
Child under 12 years old is NOT permitted to use the light unsupervised.
Warranty:
l
2 years warranty
l
Any human-made malfunction or defective is not under warranty.
Laden:
Empfehlenswert, das Licht vor dem ersten Gebrauch aufzuladen.
l
Indikator: Breathing blue lädt, Solid Blue ist voll aufgeladen.
l
Ladezeit: 70 Minuten
l
Schnittspannung: 2.4V
Hinweis: Wenn der Akku niedrig ist, wird die Anzeige auf Rot kommen, um das
USB-Kabel,
Aufladen zu erinnern, klicken Sie auf die Schaltfläche, um die Anzeige
auszuschalten.
Warnung!!
Schauen Sie NICHT direkt in die LED, wenn sie eingeschaltet ist
l
l
Zeigen Sie das Licht NICHT auf menschliche oder tierische Augen
l
Kindern unter 12 Jahren ist es NICHT gestattet, das Licht zu benutzen, wenn
sie unbeaufsichtigt sind.
Garantie:
l
2 Jahre Garantie
l
Jegliche
Fehlfunktionen sind nicht unter Garantie.
Charge:
Recommandez fortement de charger la lumière avant la première utilisation.
l
Indicateur : Respirer le bleu est chargé, le bleu foncé est entièrement chargé.
l
Temps de chargement: 70 minutes
l
Tension de coupure : 2.4V
Remarque : Si la batterie est faible, l'indicateur s'allume en rouge pour rappeler la
recharge, cliquez sur le bouton pour désactiver l'indicateur.
Avertissement!!
NE PAS regarder directement dans la LED quand il est tourné on
l
l
NE PAS pointer la lumière sur les yeux humains ou les yeux des animaux
l
L'enfant de moins de 12 ans n'est PAS autorisé à utiliser la lumière s'il n'est
pas surveillé.
Garantie:
l
2 ans de garantie
l
Tout dysfonctionnement ou défaut d'être d'une nature humaine n'est pas sous
garantie.
Carga:
Recomiendo encarecidamente cargar la luz antes del primer uso.
l
Indicador: El azul respiratorio se está cargando, el azul sólido está
completamente cargado.
l
Tiempo de carga: 70 minutos
l
Tensión de corte: 2.4V
Nota: Si la batería está baja, el indicador aparecerá en rojo para recordar la recarga,
haga clic en el botón para apagar el indicador.
Advertencia!!
l
NO mire directamente al LED cuando esté encendido
l
NO apunte la luz a los ojos humanos ni a los ojos de los animals
l
Los niños menores de 12 años NO pueden usar la luz si no están
supervisados.
Garantía:
l
2 años de garantía
l
Cualquier mal funcionamiento o defecto hecho por el ser humano no está
bajo garantía.
vom
Menschen
verursachte
Fehlfunktion
(FR) Keychain
(DE)
oder
defekte
v0
