RovyVon Hybrid Series User Manual

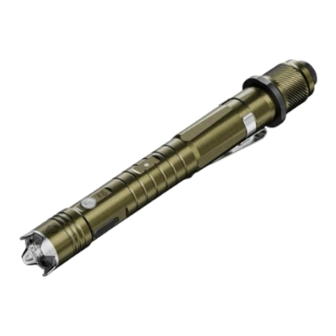

Hybrid Series H3 Pro Tactical Flashlight User Manual

Features

1. Crafted from aerospace 7075 aluminum alloy with hard anodization
2. Uses CREE XP-L HI LED, max output of 600 lumens
3. CNC machined aluminum smooth reflector, max beam distance of 120m
4. Hybrid battery power supply with built-in 330mAh Li-po battery and replaceable AA/14500 battery
5. Dual switch balances between daily use and emergency use (tactical use)
6. Instant mode memory (side switch) and one-touch quick access to strobe/high mode (tail switch)
7. Detachable deep carry stainless steel pocket clip included
8. IPX7 water resistance
Size: 155mm / 6.1" (L) * 19mm / 0.75"
Accessory: Pocket clip*1, USB-C cable*1, Charging port cover*1, O-ring*2, Lanyard*1, Tactical ring*1, User
manual*1, Warranty card*1

Power supply switch

1. By default, it will use the external battery (Alkaline or Ni-MH AA battery or 14500 Li-ion battery) once it was
installed.
2. By holding the side switch for 3 seconds, the power can be switched between internal battery and external
battery
a. If the external battery was used, it will be switched to the internal battery (Li-po) and the battery indicator
will show Blue to indicate it was switched successfully.
b. If the internal battery was used, it will be switched to the external battery and the battery indicator will show
Green to indicate it was switched successfully.
3. It will switch between automatically if the battery is low (Li-po / 14500 is lower than 3.0V or AA battery is lower
than 0.8V).
4. It will fail to switch the power supply in the following cases
a. The board has issues like short circuit, etc.
b. Both batteries are low voltage.

Operation

I. Side switch (Daily use)
1. Turn on: rapid double-click
2. Change mode: when it's turned on, click to cycle through moonlight-low-med-high
Note: the battery indicator will show related color to indicate which battery it uses now – Green is for external
battery and Blue is for internal battery.
3. Turn off: Press and hold for 0.3 seconds
4. Memory: It will go back to the last-used mode when turn on next time.
NOTE:
1. When the light was turned on by the side switch, a Half press or Full press the tail switch will go to Strobe
mode, then Release or Full press the tail switch again will go back to the illuminating mode.
2. If the light works over 1 minutes, Click the side switch, Half press the tail switch then release, or Full press
the tail switch then full press again will turn off the light.
II. Tail switch (Tactical & Emergency)
A. From off
1. Momentary on: Half press to switch between High - Strobe, release to turn off.
2. Constant on: Full press
B. From on (Turned on by the side switch)
Half press or Full press: Strobe
Turn off: Full press

Specifications

Battery
Li-po
Output
AA
Li-po
Runtime
AA
Li-po
Intensity
AA
Beam Li-po
Distance
AA
Impact resistance
Waterproof
*Parameters may vary from environment, using method, and flashlight.
**The data of the AA battery tested with Eneloop Ni-MH rechargeable AA battery.
Website: www.RovyVon.com
Address: Rm. 702 Zongtai Future City, Bao'An, Shenzhen, China
Ready to Go with What You Can Rely On
Weight: 49g / 1.73oz
Moonlight
0.5lm
0.5lm
56H
24H
Shenzhen Runfree Equipment Technology Co., Ltd.
Email: info@RovyVon.com
Postal code: 518102 Tel: 86 755 2760 1970
Low Medium
15lm 200lm
10lm 60lm
12H 75mins
6H 2H
3500cd (max)
1200cd (max)
120m (max)
70m (max)
1.5m
IPX7
High
600lm
120lm
35mins
1H
