RovyVon E5 Manual

RovyVon E5 Manual

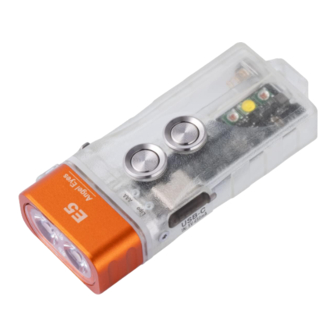

Angel eyes gitd hybrid keychain flashlight

Advertisement

Material: fluorescence polycarbonate (E5: GITD Green, E7 GITD Blue)
Size: 66.1mm/2.6" (L)*27.5mm/1.08" (W)*13.5mm/0.53" (H)
Front LED: Luminus SST-20 6500K Cool white, or SST-20 4000K Warm white, 95 CRI
Auxiliary LEDs: Warm white/UV (E5U, E7U), or Warm white/Red (E5R, E7R)
Lipo battery: 330mAh
Accessories: User manual, key ring (1 of each L & S size), Pocket clip, warranty card

Operation

1) Battery check: Every first action of the turn-on
Blue: internal Li-po battery
Green: external AAA battery
2) Battery switch (manually)
At the moonlight mode, rapid triple click or above (button 1)
2.1 Switch successfully
From Li-po to AAA: the Green indicator will come on for 3 seconds
From AAA to Li-po: the Blue indicator will come on for 3 seconds
2.2 Switch failed
From Li-po to AAA: the Blue indicator will flash for 3 seconds
From AAA to Li-po: the Green indicator will flash for 3 seconds
3) Automatically switch battery
3.1 AAA battery installed; it will use that battery for power supply.
3.2 One of the batteries is low (Lipo <3.0V, AAA <0.8V),
it will switch to the other battery to work.

User Interface

Button 1 (for front LEDs)
1.
Lock: from off, rapid quad click or above, then the Blue indicator will flash 3 seconds
2.
Unlock: rapid quad click or above from the locked mode, then the Green indicator will flash 2 seconds
3.
Moonlight: click from off, click again to turn off
4.
Momentary on: press and hold, release to turn off
5.
Turn on the memorized mode: rapid double click, then click to cycle through Low-Medium-High
6.
Turn off: Press for 0.5s
7.
Strobe: rapid triple click from off or the front light is working (moonlight mode excepted), then click to turn off.
Button 2 (for side auxiliary LEDs)
A. E5U/E7U
1.
From off, click to turn on from White low mode, then click to cycle through low-high, press 0.5s to turn off.
2.
From off or the sidelight was turned on, Rapid double click to turn on the UV, press 0.5s to turn off.
B. E5R (White + Red x2) / E7R (White x2 + Red)
1.
From off, click to turn on from White low mode, then click to cycle through low-high, press 0.5s to turn off.
2.
From off or the sidelight was turned on, rapid double click to turn on the red light from the memorized mode,
then click to cycle through low-high, press 0.5s to turn off.
3.
From off or the sidelight was turned on, rapid triple click to turn on the red emergency from the memorized
mode, then click to cycle through beacon-flash, press 0.5s to turn off.
*The turn-off will memorize the last used mode.
**The button is not functional when another button is in use.
Shenzhen Runfree Equipment Technology Co., Ltd.
Web: www.RovyVon.com
Address: Rm. 702 Zongtai Future City, Bao'An, Shenzhen, China
Postal code: 518102
Ready to Go with What You Can Rely On
Angel Eyes GITD Hybrid Keychain Flashlight
Charge: USB Type C
Email: info@RovyVon.com
Tel: 86 755 2760 1970
E5 & E7
Weight: 41g
Water resistant: IPX6
Lipo: Blue/Red
AAA: Green/Red
Button 1
Button 2
