RovyVon Aurora Ax User Manual

产品说明书（CN）
产品特征：
⚫ 多种灯源可选，CREE XP-G3 冷白光或 Nichia 219C 中白光
⚫ 260mAh 锂聚合物可充电电池
⚫ Micro USB 充电带充电指示灯，约 70 分钟即可充满
⚫
正面电子按键支持单手操作
⚫
恒流电路，稳定输出
⚫
整体符合人体工程学设计，提供更佳的握持手感
⚫
双向口袋抱夹和尾部伞绳孔设计提供多种携带方式
⚫
尾部支持倒立
⚫ IP65 生活防水
产品参数：
材料：A2x：不锈钢；A3x：铝合金；A9：红铜
长度：57.3mm
直径：15.6mm
重量：A2x：35.7g；A3x：19.5g；A9: 38.9g
包装配件：1*说明书，1*不锈钢钥匙环，1*不锈钢抱夹
1*USB 充电线，1*手绳，1*保修卡
操作方式：
照明模式
1.
⚫
一键即亮：按住开关不放，松开即灭
⚫
开机：双击（默认进入月光模式）
⚫
换挡：单击循环 月光-低-中-高
⚫ 关机：任意档位下长按 0.3 秒；
或者任意档位下工作超过 3 分钟，单击关机
记忆模式：工作三分钟后记忆该档位，下次开机进入记忆档位
爆闪
2.
⚫
开机：
1） 关机状态下三击
2） 在照明模式下任意档位三击
⚫
关机：单击
注：高亮档和中亮档工作时，因为产生大量的热，手电亮度会在 1 分半内
降到 100 流明。
充电：
建议收到本产品后首次使用前先将手电充满电！
⚫ 打开位于侧面的充电口，通过 Micro USB 线接入电源
⚫ 充电指示灯：充电状态为红色，充满为蓝色
⚫
充电时间：70 分钟
⚫ 截止电压：2.4V
注：当电量低时，充电指示灯会变红提示需充电，单击可关闭提示。
警告！ ！
⚫
当手电筒点亮时，请勿直视发光体（LED）
⚫
请勿将本产品照射人眼或动物眼睛
⚫ 年龄低于 12 岁的小孩未在监护人陪护下禁止使用本产品
⚫
为了产品可靠性，筒身与筒头密封，无法拆卸
质保服务：
⚫ 保修期：自购买日起 2 年
⚫
任何明显人为原因造成的功能故障或外观不良不在保修范围内

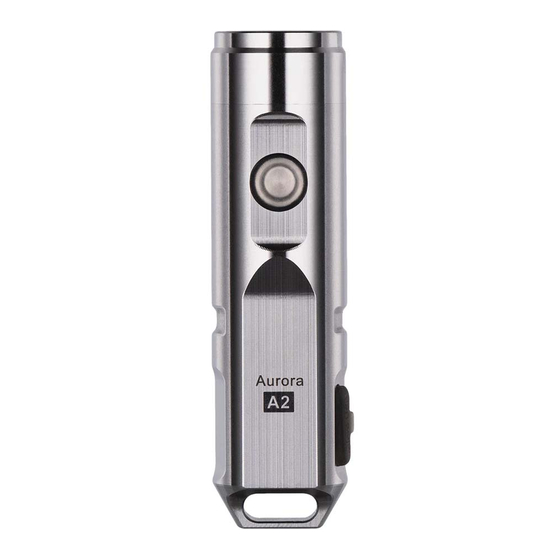

Aurora Ax Keychain Flashlight
User Manual (EN)
Features:
⚫ Optional CREE XP-G3 (max 650 lumens) or Nichia 219C (90+
CRI) LED
⚫ Powered by built-in 260mAh Li-po rechargeable battery
⚫ Micro USB rechargeable with charging indicator, fully charged in
about 70 minutes
⚫ E-switch supports one-handed operation
⚫ Constant Current board, no PWM
⚫ Ergonomic design provides better grip and hold
⚫ Reversable pocket clip included, and paracord hole at tail
⚫ Tail stand capability
⚫ IP65 weather resistance
Parameters
Material: A3: Aluminum; A2: Stainless steel; A9: Copper
Length: 57.3mm / 2.26"
Diameter: 15.6mm / 0.61"
Weight: A2x: 35.7g / 1.26oz
A3x: 19.5g / 0.69oz; A9: 38.9g / 1.37oz
Accessory: 1*User Manual, 1*SS Key ring, 1*SS Pocket clip, 1*USB
Cable, 1*Lanyard, 1*Warranty Card
Operation/User Interface
Illumination
1.
⚫ Momentary ON: Press and hold, release to turn off
⚫ Turn ON: Double click (default from moonlight)
⚫ Switch mode: click to cycle thru Moonlight-Low-Med-High
⚫ Turn Off:
1) At any mode, long press the button 0.3s;
2) Click to turn off when the light works at any mode over 3mins.
Memory: When the light worked at a mode over 3mins,
it will be turned on from the memorized mode next time.
Strobe (Emergency mode)
2.
⚫ Turn ON
From off, triple click
a)
From any mode of Illumination, triple click
b)
⚫ Turn Off: Click
Note: When the light is working at High mode or Medium mode, it will
step down to 100 lumens in 90 seconds due to the massive heat
generated.
Charging:
Highly recommend charging the light before the first use.
⚫ Open the USB port cover and connect to a power source thru
Micro USB cable
Charging indicator: Red is in charging, Blue is fully charged.
⚫
⚫ Charging time: 70 minutes
⚫ Cutoff voltage: 2.4V
Note: If the battery is low, the indicator will come on Red to remind
recharging, click the button to turn the indicator off.
Warning!!
⚫ DO NOT look directly into the emitter when it's ON
⚫ DO NOT point the light at human eyes or animal eyes
⚫ Child under 12 years old is NOT permitted to use the light
unsupervised.
⚫ The flashlight was glue sealed for the reliability, and disassembly
is not under warranty.
Warranty:
⚫ 2 years international manufacturer warranty
⚫ Any human-made malfunction or defective is out of warranty.
v0
