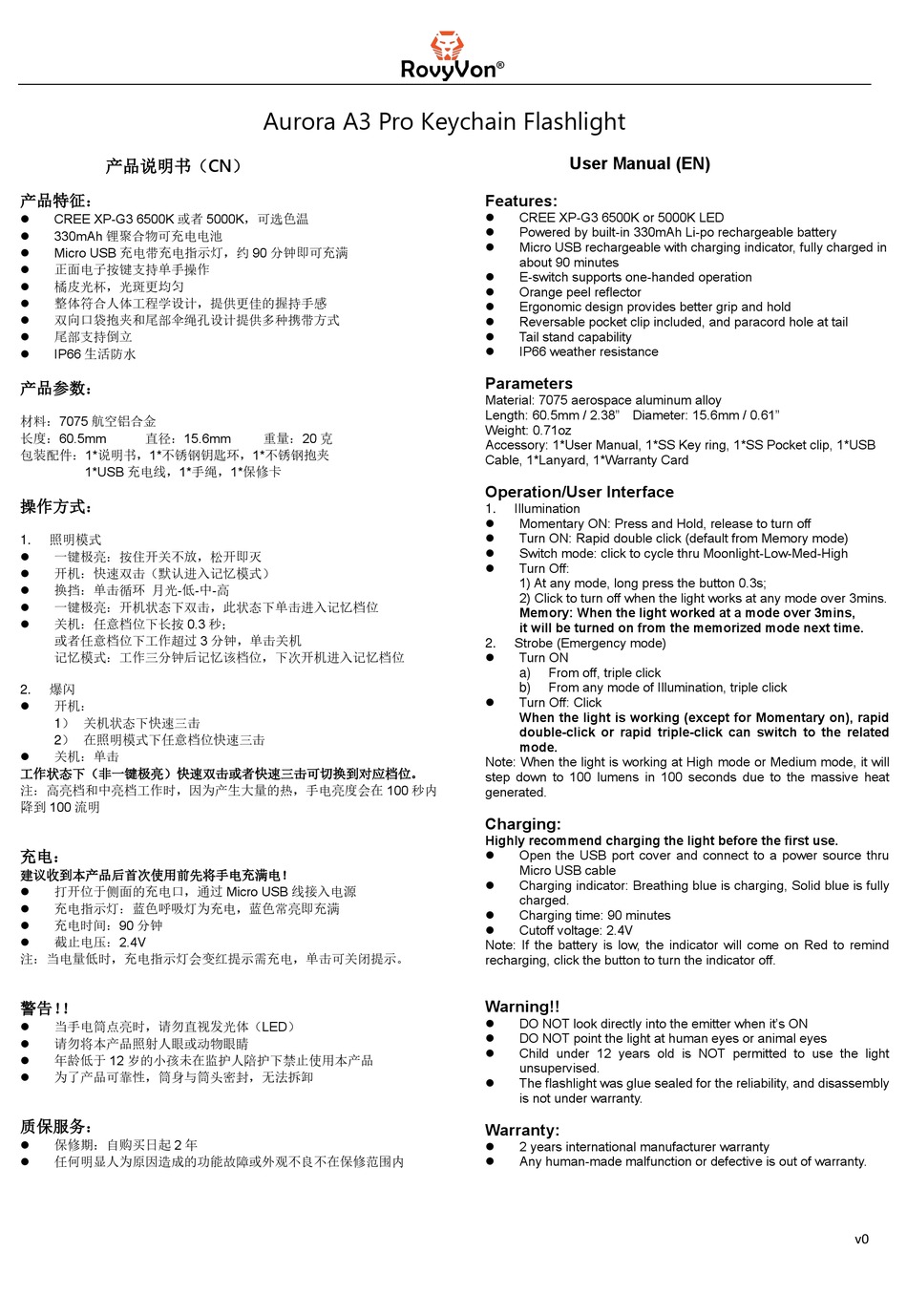

RovyVon Aurora A3 Pro User Manual

产品说明书（CN）
产品特征：
⚫ CREE XP-G3 6500K 或者 5000K，可选色温
⚫ 330mAh 锂聚合物可充电电池
⚫ Micro USB 充电带充电指示灯，约 90 分钟即可充满
⚫
正面电子按键支持单手操作
⚫
橘皮光杯，光斑更均匀
⚫
整体符合人体工程学设计，提供更佳的握持手感
⚫
双向口袋抱夹和尾部伞绳孔设计提供多种携带方式
⚫
尾部支持倒立
⚫ IP66 生活防水
产品参数：
材料：7075 航空铝合金
长度：60.5mm 直径：15.6mm
包装配件：1*说明书，1*不锈钢钥匙环，1*不锈钢抱夹
1*USB 充电线，1*手绳，1*保修卡
操作方式：
照明模式
1.
⚫
一键极亮：按住开关不放，松开即灭
⚫
开机：快速双击（默认进入记忆模式）
⚫
换挡：单击循环 月光-低-中-高
⚫
一键极亮：开机状态下双击，此状态下单击进入记忆档位
⚫ 关机：任意档位下长按 0.3 秒；
或者任意档位下工作超过 3 分钟，单击关机
记忆模式：工作三分钟后记忆该档位，下次开机进入记忆档位
爆闪
2.
⚫
开机：
1） 关机状态下快速三击
2） 在照明模式下任意档位快速三击
⚫
关机：单击
工作状态下（非一键极亮）快速双击或者快速三击可切换到对应档位。
注：高亮档和中亮档工作时，因为产生大量的热，手电亮度会在 100 秒内
降到 100 流明
充电：
建议收到本产品后首次使用前先将手电充满电！
⚫ 打开位于侧面的充电口，通过 Micro USB 线接入电源
⚫ 充电指示灯：蓝色呼吸灯为充电，蓝色常亮即充满
⚫
充电时间：90 分钟
⚫ 截止电压：2.4V
注：当电量低时，充电指示灯会变红提示需充电，单击可关闭提示。
警告！ ！
⚫ 当手电筒点亮时，请勿直视发光体（LED）
⚫
请勿将本产品照射人眼或动物眼睛
⚫ 年龄低于 12 岁的小孩未在监护人陪护下禁止使用本产品
⚫
为了产品可靠性，筒身与筒头密封，无法拆卸
质保服务：
⚫ 保修期：自购买日起 2 年
⚫
任何明显人为原因造成的功能故障或外观不良不在保修范围内

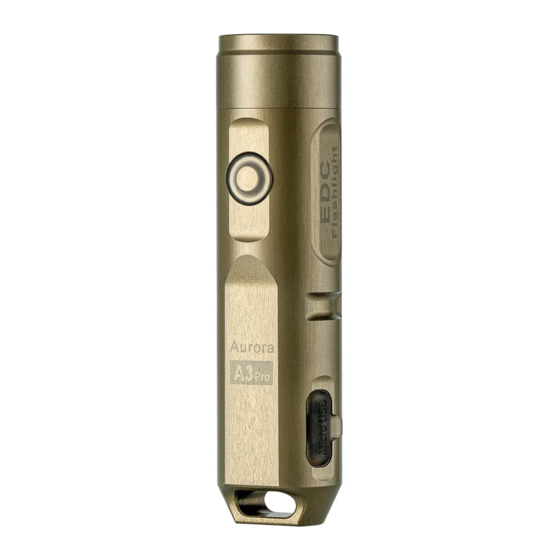

Aurora A3 Pro Keychain Flashlight
重量：20 克
User Manual (EN)
Features:
⚫ CREE XP-G3 6500K or 5000K LED
⚫ Powered by built-in 330mAh Li-po rechargeable battery
⚫ Micro USB rechargeable with charging indicator, fully charged in
about 90 minutes
⚫ E-switch supports one-handed operation
⚫ Orange peel reflector
⚫ Ergonomic design provides better grip and hold
⚫ Reversable pocket clip included, and paracord hole at tail
⚫ Tail stand capability
⚫ IP66 weather resistance
Parameters
Material: 7075 aerospace aluminum alloy
Length: 60.5mm / 2.38" Diameter: 15.6mm / 0.61"
Weight: 0.71oz
Accessory: 1*User Manual, 1*SS Key ring, 1*SS Pocket clip, 1*USB
Cable, 1*Lanyard, 1*Warranty Card
Operation/User Interface
Illumination
1.
Momentary ON: Press and Hold, release to turn off
⚫
⚫ Turn ON: Rapid double click (default from Memory mode)
⚫ Switch mode: click to cycle thru Moonlight-Low-Med-High
⚫ Turn Off:
1) At any mode, long press the button 0.3s;
2) Click to turn off when the light works at any mode over 3mins.
Memory: When the light worked at a mode over 3mins,
it will be turned on from the memorized mode next time.
Strobe (Emergency mode)
2.
⚫ Turn ON
From off, triple click
a)
From any mode of Illumination, triple click
b)
⚫ Turn Off: Click
When the light is working (except for Momentary on), rapid
double-click or rapid triple-click can switch to the related
mode.
Note: When the light is working at High mode or Medium mode, it will
step down to 100 lumens in 100 seconds due to the massive heat
generated.
Charging:
Highly recommend charging the light before the first use.
⚫ Open the USB port cover and connect to a power source thru
Micro USB cable
Charging indicator: Breathing blue is charging, Solid blue is fully
⚫
charged.
⚫ Charging time: 90 minutes
⚫ Cutoff voltage: 2.4V
Note: If the battery is low, the indicator will come on Red to remind
recharging, click the button to turn the indicator off.
Warning!!
⚫ DO NOT look directly into the emitter when it's ON
⚫ DO NOT point the light at human eyes or animal eyes
⚫ Child under 12 years old is NOT permitted to use the light
unsupervised.
⚫ The flashlight was glue sealed for the reliability, and disassembly
is not under warranty.
Warranty:
⚫ 2 years international manufacturer warranty
⚫ Any human-made malfunction or defective is out of warranty.
v0
