RovyVon Hybrid Series User Manual

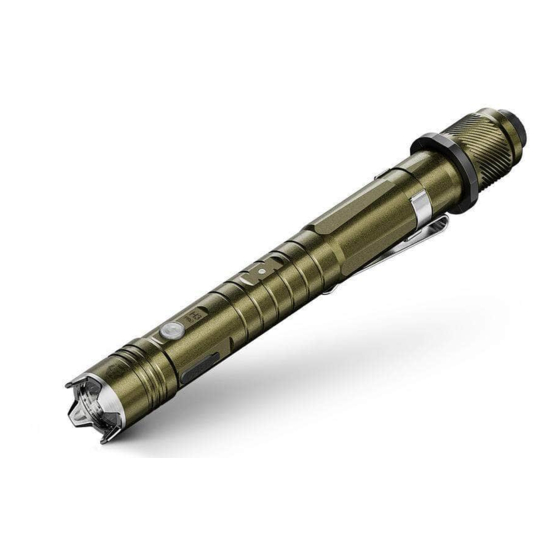

Hybrid Series H3 EDC Penlight User Manual

Features

1. Crafted from aerospace 6063 aluminum alloy
2. Alternative 6500K cool white LED or 5000K warm white high CRI LED
3. LOP (Light Orange Peel) reflector, smooth and eyes friendly beam
4. Hybrid battery supply - internal 300mAh Lipo battery & external (replaceable) AAA/10440 battery
5. USB-C rechargeable
6. Instant mode memory
7. Detachable deep carry stainless steel pocket clip included
8. IPX6 water resistance
Size: 133mm / 5.24" (L) * 16.5mm / 0.65"
Accessory: Pocket clip*1, USB-C cable*1, Charging port cover*1, O-ring*2, Lanyard*1, User manual*1, Warranty
card*1

Power supply switch

1. By default, it will use the external battery (Alkaline or Ni-MH AAA battery or 10440 Li-ion battery) once it was
installed.
2. By holding the side switch for 3 seconds, the power can be switched between internal battery and external
battery
a. If the external battery was used, it will be switched to the internal battery (Li-po) and the battery indicator
will show Blue to indicate it was switched successfully.
b. If the internal battery was used, it will be switched to the external battery and the battery indicator will show
Green to indicate it was switched successfully.
3. It will switch between automatically if the battery is low (Li-po / 10440 is lower than 3.0V or AAA battery is lower
than 0.8V).
4. It will fail to switch the power supply in the following cases
a. The board has issues like short circuit, etc.
b. Both batteries are low voltage.

Operation (Any button)

1. Moonlight: From off, single click, click again to turn off
2. Turn on: Rapid double click
3. Switch mode: click to cycle through moonlight-low-med-high
4. Emergency mode: rapid triple click, and click to cycle through Strobe-SOS-Signal beacon
5. Turn off: Press for 0.3 seconds
6. Memory mode: memorize the last used mode after turned off.
CREE LED
Specs Battery
Li-po
Output
AAA
Li-po
Runtime
AAA
Li-po
Intensity
AAA
Beam Li-po
Distance
AAA
Impact resistance
Waterproof
Nichia LED
Specs Battery
Li-po
Output
AAA
Li-po
Runtime
AAA
Li-po
Intensity
AAA
Beam Li-po
Distance
AAA
Impact resistance
Waterproof
*Parameters may vary from environment, using method, and flashlight.
**The data of the AAA battery tested with Eneloop Ni-MH rechargeable AAA battery.
Website: www.RovyVon.com
Address: Rm. 702 Zongtai Future City, Bao'An, Shenzhen, China
Ready to Go with What You Can Rely On
Weight: 49g / 1.73oz
Moonlight
0.5lm
0.1lm
54H
20H
Moonlight
0.5lm
0.1lm
56H
24H
Shenzhen Runfree Equipment Technology Co., Ltd.
Email: info@RovyVon.com
Postal code: 518102 Tel: 86 755 2760 1970
Low Medium
20lm 200lm
15lm 60lm
10H 90mins
6H 2H
1200cd (max)
600cd (max)
70m (max)
50m (max)
1.5m
IPX6
Low Medium
15lm 160lm
10lm 60lm
12H 100mins
6H 2H
900cd (max)
400cd (max)
50m (max)
30m (max)
1.5m
IPX6
High
500lm
100lm
40mins
50mins
High
400lm
120lm
45mins
1H
v1
