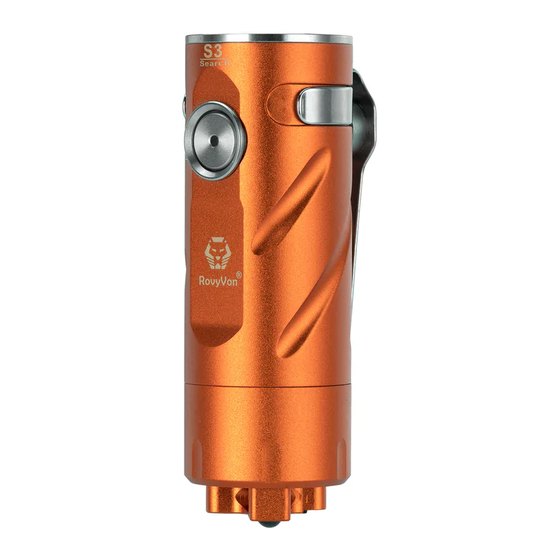

RovyVon S3 Series User Manual

S3 Series EDC Flashlight User Manual

Features

1. Made of aluminum alloy (S3) or titanium alloy (S3 Ti)
2. CREE XP-G3 LEDs or Nichia 219C High CRI LEDs, Max output up to 1800 lumens*
3. Optic Lens from LEDiL
4. Powered by protected Li-ion 16340 battery, compatible with CR123 batteries
5. Metal switch for one-hand operation
6. USB-C quick charge in 90 minutes
7. 1/4" tripod hole on the detachable pocket clip
8. Tail cap includes lanyard hole, charging port, tritium slot, and ceramic glass breaker
9. IPX7 waterproof
Size: 69.6mm / 2.74" (Length) * 24.8mm / 0.97" (Diameter)
Weight (S3): 78g / 2.75oz (Battery and Pocket Clip included)
Weight (S3 Ti): 101g / 3.56oz (Battery and Pocket Clip included)

Operation

A. From Off
1. Press and hold the button >> Momentary on, release to turn off
2. Single click >> Quick access to Low mode, click to turn off
3. Rapid double click >> Turn on from the memorized mode
4. Rapid triple click >> Activate Strobe mode
B. From On
1. If turned on by Double click
a. Click >> Cycle through Low-Med-High-Turbo
b. Long press 0.3s >> Turn off
c. Rapid triple click >> Strobe mode
Memory: It will go back to the last-used mode when turn on next time.
2. If turned on by Triple click
a. Click >> Cycle through Strobe-SOS
b. Rapid double click >> Memorized lighting mode
c. Long press 0.3s >> Turn off
Battery & Recharge
Before the first use, please remove the insulation sheet and fully charge the light.
a) Included battery: 16340 650mAh
*Compatible with standard CR123 batteries but the output (brightness) may vary.
b) Max runtime: 22 hours @Low mode
c) Recharge: USB-C (Charge 16340 batteries ONLY)
d) Charge: 5V/1A, fully charged in 1.5 hours
e) Charging indicator (at the Tail): Red while in charge, and Blue once fully charged
f) Low battery: 2.8V, the low battery indicator (at the Switch) will come on red to remind.
