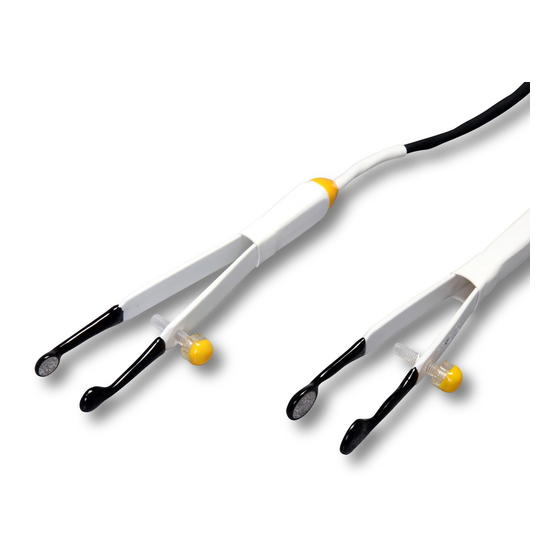

Harvard Bioscience BTX Tweezertrodes User Manual

APPENDIX B: Replacement Parts

Order No. Model Description
45-0165 520KIT Tweezertrode Kit, 7mm, includes cable
45-0118 520 Tweezertrode Electrode, 7 mm Diameter
45-0119 522 Tweezertrode Electrode, 10 mm Diameter
45-0166 522KIT Tweezertrode Kit, 10 mm, includes cable
45-0204 524 Tweezertrode Connection Cable
45-0059 ENHANCER The Enhancer 3000® Monitoring
System 3000SC
45-0486 Platinum Tweezertrode, 1 mm Diameter, includes cables
45-0487 Platinum Tweezertrode, 3 mm Diameter
45-0488 Platinum Tweezertrode, 7 mm Diameter
45-0489 Platinum Tweezertrode, 5 mm Diameter
45-0204 Tweezertrode Cables

APPENDIX C: Troubleshooting

Please contact BTX Technical Service at any of the numbers listed on page 2 in the event of any failure.
Tweezertrodes™
User Manual
IMPORTANT Read all Instructions, Warnings and Precautions prior to use.
:
Safety Terms and Symbols:
Terms that appear in this manual:
GENERAL SAFETY INFORMATION
Review the following safety precautions to avoid injury and prevent damage to this product or any
products connected to it. To avoid potential hazard, use this product only as specified. Only
qualified BTX personnel should perform service procedures.
To Prevent Hazard or Injury:
•
ARCING CAN OCCUR AT HIGH VOLTAGES
An unfavorable combination of parameters such as high voltage settings and a small
sample volume with a highly conductive medium might lead to flashover between the
electrodes (ARC) and/or explosive evaporation of the medium. Reduce voltage or pulse
length to avoid repeating this condition.
•
DO NOT OPERATE WITH SUSPECTED FAILURES
If you suspect there is damage to the product, have it inspected by qualified BTX
service personnel.
•
DO NOT CONTACT ELECTRODES
•
TO AVOID FIRE OR SHOCK HAZARD, OBSERVE ALL RATINGS AND MARKINGS ON THE
PRODUCT OR IN THIS MANUAL BEFORE USING THE DEVICE.
•
AVOID EXPOSURE TO CONTACT
•
DO NOT INSERT FINGERS OR TRY TO REMOVE ELECTRODE OR SAMPLE DURING
PULSING SEQUENCE.
•
WEAR PROPER EYE PROTECTION DURING ELECTROPORATION
•
DO NOT OPERATE IN AN EXPLOSIVE ENVIRONMENT
•
DO NOT OPERATE IN WET/DAMP CONDITIONS
