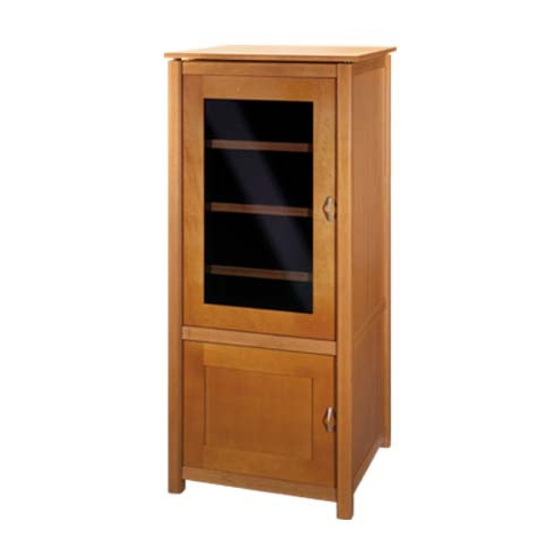

Assembly Instructions for Model: WFA54
Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is
constructed of real hardwood and resonance dampening MDF.
Safety Warning: If you do not understand these directions, or have any doubts about the
www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our
customer service representatives can quickly assist you with installation questions and missing
or damaged parts. Replacement parts for products purchased through authorized dealers will be
shipped directly to you. Never use defective parts. Improper installation may cause damage or
Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or
incorrect use. Please call Sanus Systems before returning products to the point of purchase.
Required Tools: Phillips screw driver

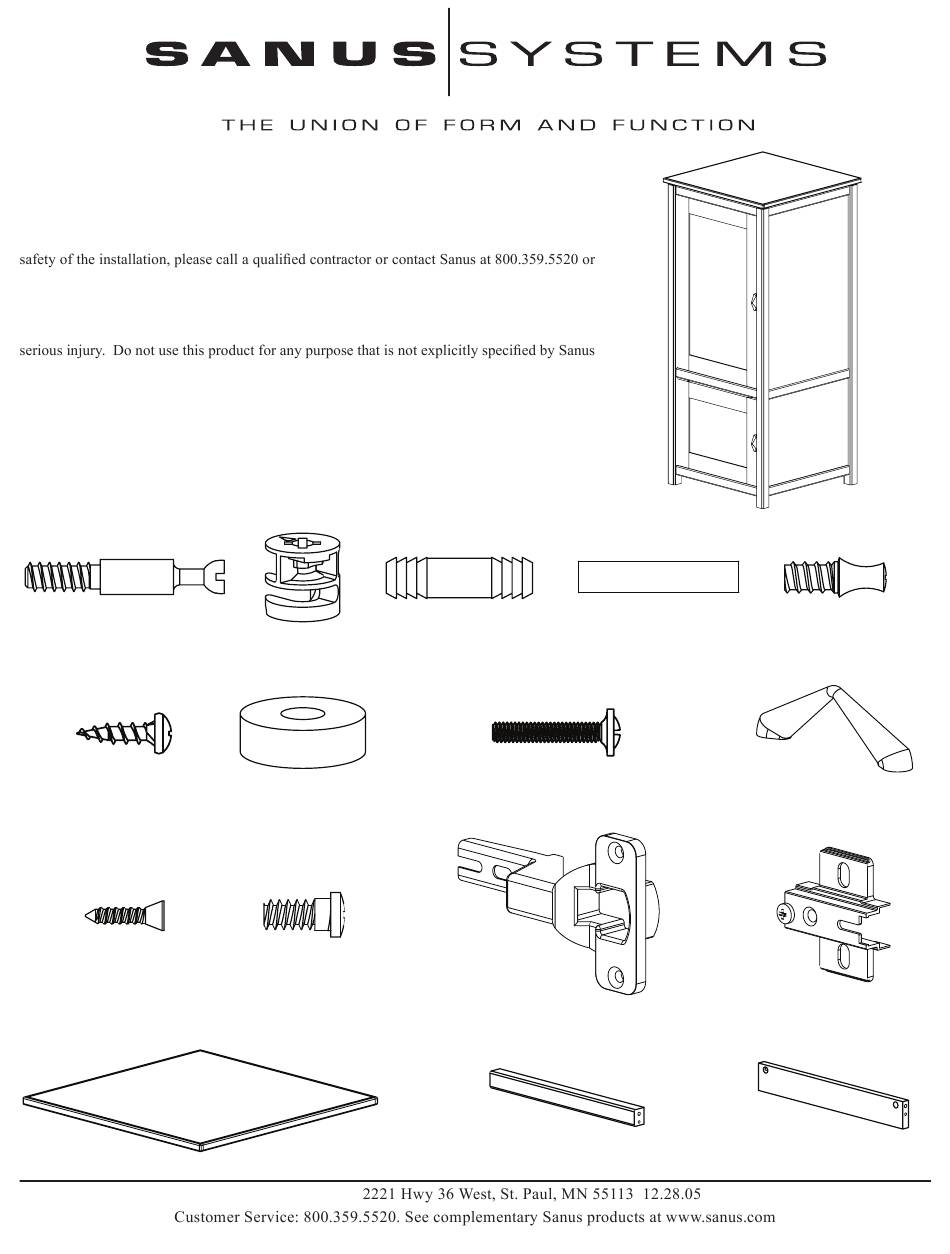

Supplied Parts and Hardware: Some parts may be pre-assembled together*
Hardware: Shown as actual size
(12) Cam Pin - a
(4) Wood Screw - f
(8) Hinge Screw - j
Parts: Not Shown as actual size
(1) Top - n
(12) Cam - b
(4) Spacer - g
(8) Hinge Plate Screw - k
Sanus Systems
(4) Dowel Pin - c
(4) Phillips Bolt - h
(4) Hinge - l*
(3) Front Stretcher - o
(12) Dowel - d
(24) Shelf Pin - e
(2) Door Handle - i*
(4) Hinge Plate - m*
(3) Back Stretcher - p
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sanus Systems WFA54
Summary of Contents for Sanus Systems WFA54
- Page 1 Never use defective parts. Improper installation may cause damage or Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or incorrect use. Please call Sanus Systems before returning products to the point of purchase.
- Page 2 Parts List (Cont) (2) Bottom Shelf - q (4) Mid Shelf - r (1) Small Door - s (1) Wood Panel - x (1) Large Door - w (1) Left Side Panel - t (1) Right Side Panel - u (1) Back Panel - v Step 1: Prepare the Side Panels Thread a Cam Pin (a) into each of the smaller holes in the Side Panels (t,u).
- Page 3 Step 2: Prepare Stretchers Add a Cam (b) to each Front Stretcher (o) and Back Stretcher (p). Make sure the arrow in each Cam faces the hole on the side of the Stretchers. See Diagram 2 for assistance. Diagram 2 Detailed View arrow Step 3: Add Stretchers...
- Page 4 Step 4: Add Side Panel Note: Make sure the hinge holes on the Side Panel are on the same side as the Front Stretchers. Diagram 4 Detailed View hinge holes Step 5: Add Shelf Pins and Bottom Shelf Thread the Shelf Pins (e) into the bottom hole in the line of holes in each Side Panel (t,u). Tighten Shelf Pins with a Phillips screw driver. Note: Diagram 5 is a Back View.
- Page 5 Step 6: Add Top Diagram 6 Detailed View Step 7: Add Door Handle Insert each Phillips Bolt (h) through the Door (w) and into the Door Handle (i). Tighten with a Phillips screw driver. See Diagram 7 for assistance. Diagram 7 shows only the Large Door. Attach the Door Handle to the Small Door in the same manner. The Door Panels can be interchanged by removing and re-installing the plastic border from the perimeter of the Door’s back side.
- Page 6 Step 8: Add Hinge Assembly to Door Insert a Hinge Screw (j) through the Hinge (l) and thread it into the Door (w). Tighten each with a Phillips screw driver. Repeat process until each Hinge Assembly is secure. See Diagram 8 for assistance. Diagram 8 Detailed View Step 9: Door Install...
- Page 7 Step 10: Add Mid Shelves Thread a Shelf Pin (e) into the desired location in the Side Panels (t,u). For each shelf, four Shelf Pins will be required. Insert each shelf for assistance. Diagram 10 Detailed View wood strip Step 11: Add Back Panel Position the Back Panel (v) up against the assembly and thread a Wood Screw (f) through it and into the Back Stretcher (p).
- Page 8 Step 12: Hinge Adjustment for Woodbrook Door Each hinge Assembly is adjustable in multiple directions. See Diagram 12 for assistance. Diagram 12 Side Adjustment Depth Adjustment Height Adjustment Sanus Systems...
