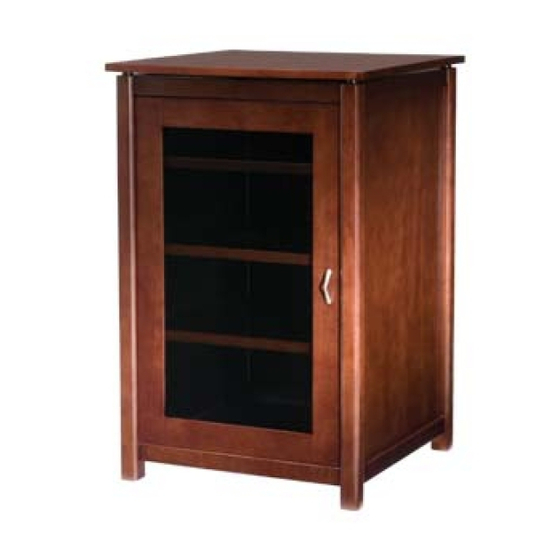

Assembly Instructions for Model: WFA37
Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is
constructed of real hardwood and resonance dampening MDF.
Safety Warning: If you do not understand these directions, or have any doubts about the
safety of the installation, please call a qualified contractor or contact Sanus at 800.359.5520 or
www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our
customer service representatives can quickly assist you with installation questions and missing
or damaged parts. Replacement parts for products purchased through authorized dealers will be
shipped directly to you. Never use defective parts. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus
Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or
incorrect use. Please call Sanus Systems before returning products to the point of purchase.
Required Tools: Phillips screw driver

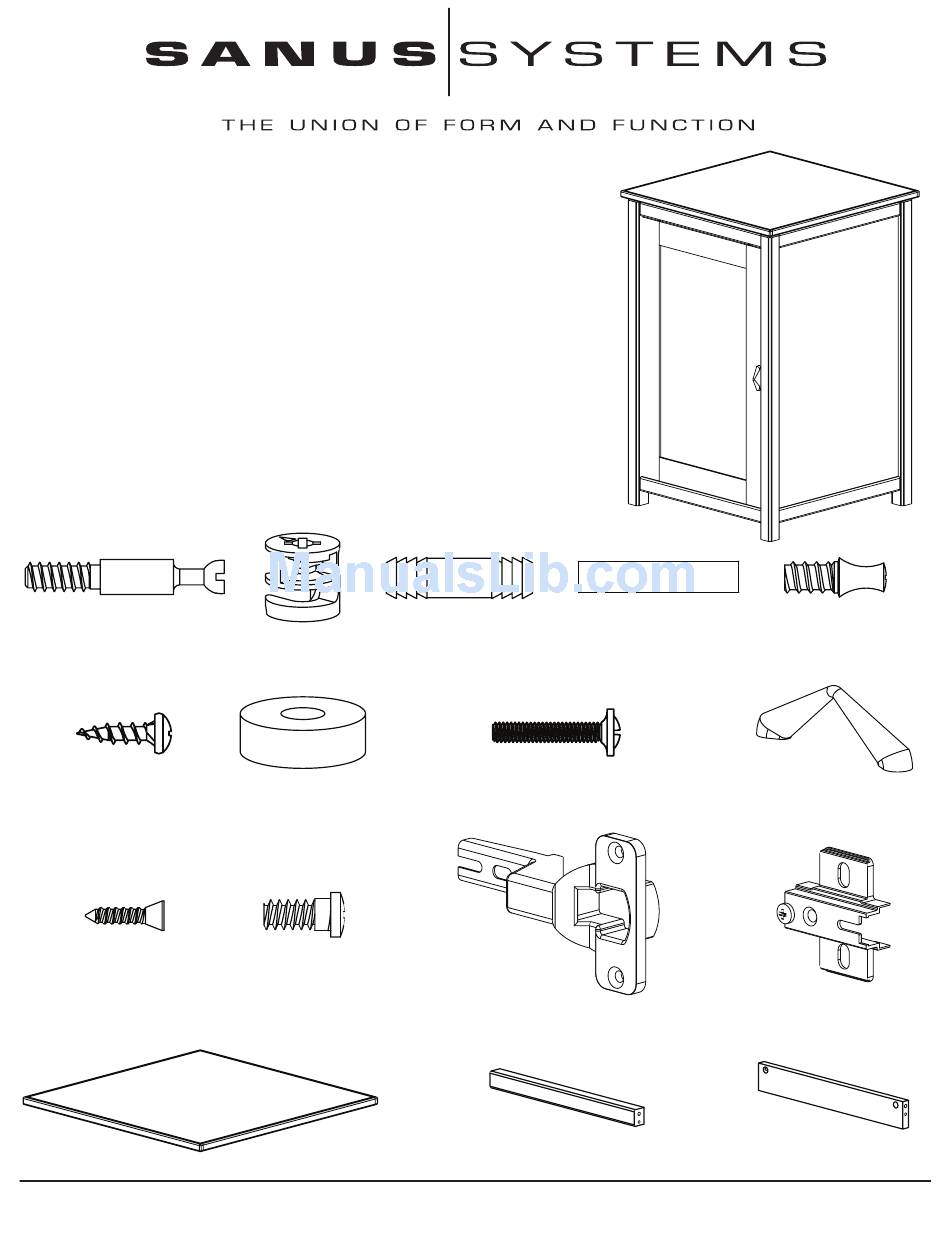

Supplied Parts and Hardware: Some parts may be pre-assembled together*
Hardware: Shown as actual size
(8) Cam Pin - a
(4) Wood Screw - f
(4) Hinge Screw - j
Parts: Not Shown as actual size
(1) Top - n
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
(8) Cam - b
(4) Spacer - g
(4) Hinge Plate Screw - k
Sanus Systems 2221 Hwy 36 West, St. Paul, MN 55113 12.28.05
(4) Dowel Pin - c
(2) Phillips Bolt - h
(2) Hinge - l*
(2) Front Stretcher - o
(8) Dowel - d
(16) Shelf Pin - e
(1) Door Handle - i*
(2) Hinge Plate - m*
(2) Back Stretcher - p
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sanus Systems WFA37
Summary of Contents for Sanus Systems WFA37
- Page 1 Do not use this product for any purpose that is not explicitly specified by Sanus Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or incorrect use. Please call Sanus Systems before returning products to the point of purchase.
- Page 2 Parts List (Cont) (1) Bottom Shelf - q (1) Left Side Panel - s (1) Right Side Panel - t Step 1: Prepare the Side Panels Thread a Cam Pin (a) into each of the smaller holes in the Side Panels (s,t). Tighten each Cam Pin with a Phillips screw driver. Insert a Dowel (d) into the larger adjacent hole in the Side Panels.
- Page 3 Step 2: Prepare Stretchers Add a Cam (b) to each Front Stretcher (o) and Back Stretcher (p). Make sure the arrow in each Cam faces the hole on the side of the Stretchers. See Diagram 2 for assistance. Step 3: Add Stretchers Add the Front and Back Stretchers (o,p) to the Side Panel (s), by aligning the Cam Pin (a) with the hole which the Cams (b) point to and the Dowel (d) goes into the adjacent hole.
- Page 4 Step 4: Add Side Panel Press fit the Side Panel (t) against the Stretchers (o,p) so the Cam Pin (a) goes into the hole which the Cams (b) point to. The Dowel (d) fits into the adjacent hole. Tighten each Cam in a clockwise motion until the Stretchers are secured. Note: Make sure the hinge holes on the Side Panel are on the same side as the Front Stretchers.
- Page 5 Step 6: Add Top Gently tap a Dowel Pin (c) into the holes on the top of each Side Panel (s,t). Slide a Spacer (g) over each Dowel Pin. Press fit the Top (n) so it fits onto the Dowel Pins. See Diagram 6 for assistance. Diagram 6 Step 7: Add Door Handle...
- Page 6 Step 8: Add Hinge Assembly to Door Insert a Hinge Screw (j) through the Hinge (l) and thread it into the Door (v). Tighten each with a Phillips screw driver. Repeat process until both Hinge Assemblies are secured. Diagram 8 Step 9: Door Install Position the Door (v) so the holes in the Hinge Plate (m) line up with the front pair of holes in the Side Panel (s,t).
- Page 7 Step 10: Add Mid Shelves Thread a Shelf Pin (e) into the desired location in the Side Panels (s,t). For each shelf, four Shelf Pins will be required. Insert each Mid Shelf (r) into the assembly and press fit onto the Shelf Pins. Make sure the wood strip on each shelf is facing toward the front. See Dia- gram 10 for assistance.
- Page 8 Each hinge Assembly is adjustable in multiple directions. See Diagram 12 for assistance. Diagram 12 Side Adjustment Depth Adjustment Height Adjustment Sanus Systems 2221 Hwy 36 West, St. Paul, MN 55113 12.28.05 Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
