Assembly Instructions for Model: WFAV66

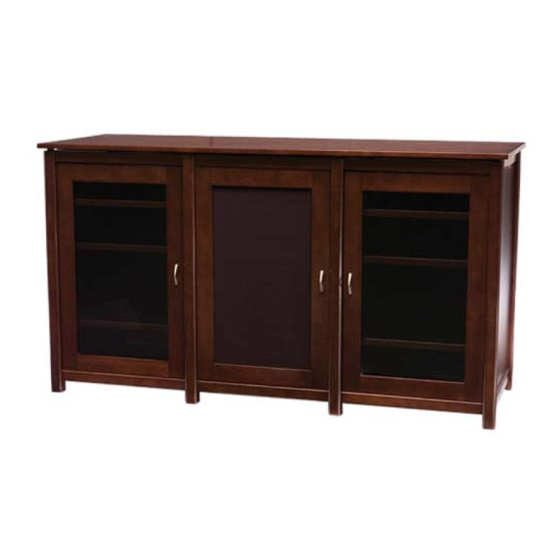

Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is
constructed of real hardwood and resonance dampening MDF.
Safety Warning: If you do not understand these directions, or have any doubts about the
www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our
customer service representatives can quickly assist you with installation questions and missing
or damaged parts. Replacement parts for products purchased through authorized dealers will be
shipped directly to you. Never use defective parts. Improper installation may cause damage or
Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or
incorrect use. Please call Sanus Systems before returning products to the point of purchase.
Required Tools: Phillips screw driver

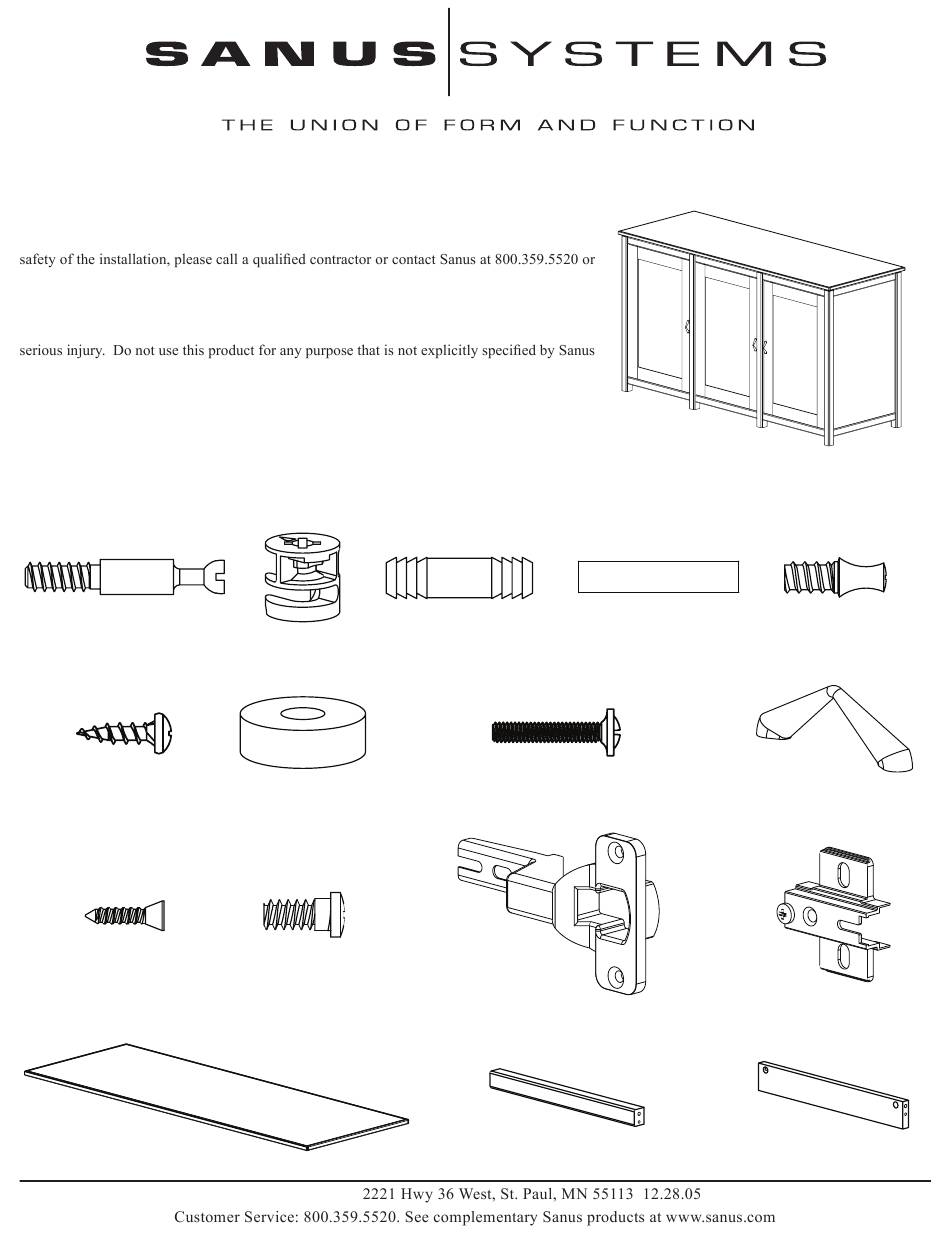

Supplied Parts and Hardware: Some parts may be pre-assembled together*
Hardware: Shown as actual size
(24) Cam Pin - a
(12) Wood Screw - f
(12) Hinge Screw - j
Parts: Not Shown as actual size
(1) Top - n
(24) Cam - b
(8) Spacer - g
(12) Hinge Plate Screw - k
Sanus Systems
(8) Dowel Pin - c
(6) Phillips Bolt - h
(6) Hinge - l*
(6) Front Stretcher - o
(24) Dowel - d
(48) Shelf Pin - e
(3) Door Handle - i*
(6) Hinge Plate - m*
(6) Back Stretcher - p
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sanus Systems WFAV66
Summary of Contents for Sanus Systems WFAV66
- Page 1 Never use defective parts. Improper installation may cause damage or Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or incorrect use. Please call Sanus Systems before returning products to the point of purchase.
- Page 2 Parts List (Cont) (3) Door - s (2) Wood Panel Insert - t (3) Back Panel - u (1) Left Side Panel - v (1) Right Side Panel - w (2) Center Panel - x Step 1: Prepare the Side Panels Thread a Cam Pin (a) into each of the smaller holes in each Side Panel (v,w).
- Page 3 Step 2: Prepare Center Panels Thread a Cam Pin (a) into each of the smaller holes in each Center Panel (x). Tighten each Cam Pin with a Phillips screw driver. Insert a Dowel (d) into the larger adjacent hole in the Panels. See Diagram 2 for assistance. Diagram 2 Detailed View Step 3: Prepare Stretchers...
- Page 4 Step 4: Add Stretchers Add the Front and Back Stretchers (o,p) to the Side Panel (v), by aligning the Cam Pin (a) with the hole which the Cams (b) point to and the Dowel (d) goes into the adjacent hole. Make sure the stretchers are oriented so the Cams face inward. Tighten each Cam closest to the Side Panel in a clockwise motion until the stretchers are secured.
- Page 5 Step 6: Add Stretchers Add the Front and Back Stretchers (o,p) to the Center Panel (x), by aligning the Cam Pin (a) with the hole which the Cams (b) point to. The Dowel (d) goes into the adjacent hole. Make sure the stretchers are oriented so the Cams face inward. Tighten each Cam closest to the Center Panel in a clockwise motion until the stretchers are secured.
- Page 6 Step 8: Add Stretchers Add the Front and Back Stretchers (o,p) to the Center Panel (x), by aligning the Cam Pin (a) with the hole which the Cams (b) point to. the Side Panel in a clockwise motion until the stretchers are secured. See Diagram 8 for assistance. Note: Front stretchers attach to the same side as the hinge holes are on.
- Page 7 Step 10: Add Shelf Pins and Bottom Shelf Thread the Shelf Pins (e) into the bottom hole in the line of holes in each Panel (v,w,x). Tighten Shelf Pins with a Phillips screw driver. Diagram 10 Detailed View Step 11: Add Top Detailed View Diagram 11...
- Page 8 Step 12: Prepare Doors Insert each Phillips Bolt (h) through the Door (s) and into the Door Handle (i). Tighten with a Phillips screw driver. See Diagram 12a for assistance. The Door Panels can be interchanged by removing and re-installing the plastic border from the perimeter of the Door’s back side.
- Page 9 Step 14: Add Mid Shelves Thread a Shelf Pin (e) into the desired location in the Panels (v,w,x). For each shelf, four Shelf Pins will be required. Insert each Mid gram 14 for assistance. Note: Diagram 14 is a Back View. Detailed View Diagram 14 Step 15: Add Back Panel...
- Page 10 Step 16: Hinge Adjustment for Woodbrook Door Each hinge Assembly is adjustable in multiple directions. See Diagram 16 for assistance. Diagram 16 Side Adjustment Depth Adjustment Height Adjustment Sanus Systems...
