Assembly Instructions for Model: WFV66

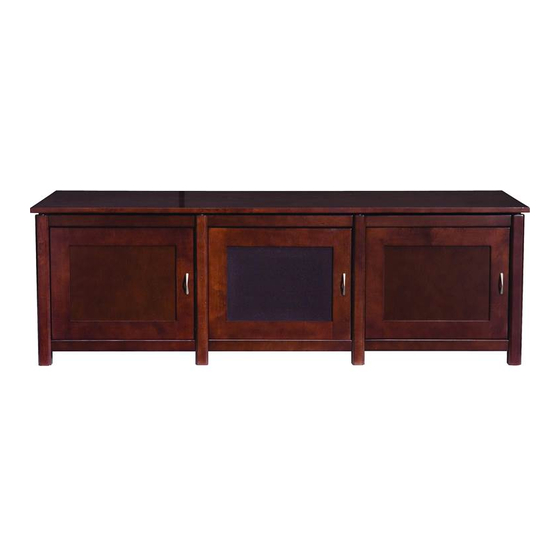

Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is
constructed of real hardwood and resonance dampening MDF.
Safety Warning: If you do not understand these directions, or have any doubts about the
safety of the installation, please call a qualified contractor or contact Sanus at 800.359.5520 or
www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our
customer service representatives can quickly assist you with installation questions and missing
or damaged parts. Replacement parts for products purchased through authorized dealers will be
shipped directly to you. Never use defective parts. Improper installation may cause damage or
serious injury. Do not use this product for any purpose that is not explicitly specified by Sanus
Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or
incorrect use. Please call Sanus Systems before returning products to the point of purchase.
Required Tools: Phillips screw driver

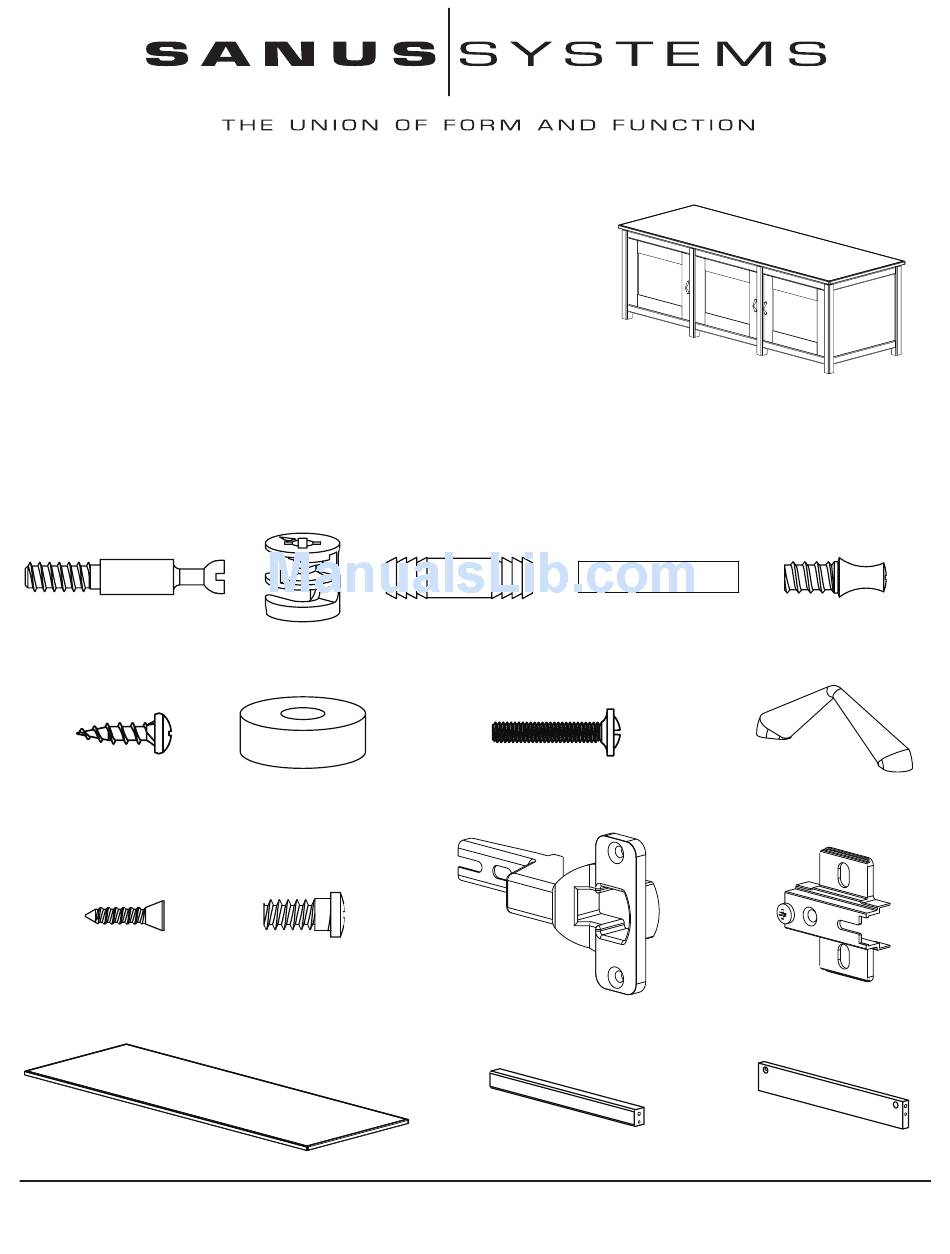

Supplied Parts and Hardware: Some parts may be pre-assembled together*
Hardware: Shown as actual size
(24) Cam Pin - a
(12) Wood Screw - f
(12) Hinge Screw - j
Parts: Not Shown as actual size
(1) Top - n
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
(24) Cam - b
(8) Spacer - g
(12) Hinge Plate Screw - k
Sanus Systems 2221 Hwy 36 West, St. Paul, MN 55113 12.28.05
(8) Dowel Pin - c
(6) Phillips Bolt - h
(6) Hinge - l*
(6) Front Stretcher - o
(24) Dowel - d
(24) Shelf Pin - e
(3) Door Handle - i*
(6) Hinge Plate - m*
(6) Back Stretcher - p

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Woodbrook Furniture WFV66 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanus Systems Woodbrook Furniture WFV66

  • Page 1 Do not use this product for any purpose that is not explicitly specified by Sanus Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or incorrect use. Please call Sanus Systems before returning products to the point of purchase.
  • Page 2: Parts List (Cont)

    Parts List (Cont) (3) Bottom Shelf - q (3) Door - s (1) Left Side Panel - v Step 1: Prepare the Side Panels Thread a Cam Pin (a) into each of the smaller holes in each Side Panel (v,w). Tighten each Cam Pin with a Phillips screw driver. Insert a Dowel (d) into the larger adjacent hole in the Panels.
  • Page 3 Step 2: Prepare Center Panels Thread a Cam Pin (a) into each of the smaller holes in each Center Panel (x). Tighten each Cam Pin with a Phillips screw driver. Insert a Dowel (d) into the larger adjacent hole in the Panels. See Diagram 2 for assistance. Diagram 2 Step 3: Prepare Stretchers Add a Cam (b) to each Front Stretcher (o) and Back Stretcher (p).
  • Page 4 Step 4: Add Stretchers Add the Front and Back Stretchers (o,p) to the Side Panel (v), by aligning the Cam Pin (a) with the hole which the Cams (b) point to and the Dowel (d) goes into the adjacent hole. Make sure the stretchers are oriented so the Cams face inward. Tighten each Cam closest to the Side Panel in a clockwise motion until the stretchers are secured.
  • Page 5 Step 6: Add Stretchers Add the Front and Back Stretchers (o,p) to the Center Panel (x), by aligning the Cam Pin (a) with the hole which the Cams (b) point to. The Dowel (d) goes into the adjacent hole. Make sure the stretchers are oriented so the Cams face inward. Tighten each Cam closest to the Center Panel in a clockwise motion until the stretchers are secured.
  • Page 6 Step 8: Add Stretchers Add the Front and Back Stretchers (o,p) to the Center Panel (x), by aligning the Cam Pin (a) with the hole which the Cams (b) point to. The Dowel (d) fits into the adjacent hole. Make sure the stretchers are oriented so the Cams face inward. Tighten each Cam closest to the Side Panel in a clockwise motion until the stretchers are secured.
  • Page 7 Step 10: Add Shelf Pins and Bottom Shelf Thread the Shelf Pins (e) into the bottom hole in the line of holes in each Panel (v,w,x). Tighten Shelf Pins with a Phillips screw driver. Add the Bottom Shelf (q) by inserting it into the assembly and press fit it onto the Shelf Pins. Make sure the Bottom Shelf is flush against the Front Stretcher (o).
  • Page 8 Step 12: Prepare Doors Insert each Phillips Bolt (h) through the Door (s) and into the Door Handle (i). Tighten with a Phillips screw driver. See Diagram 12a for assistance. The Door Panels can be interchanged by removing and re-installing the plastic border from the perimeter of the Door’s back side.
  • Page 9 Step 14: Add Mid Shelves Thread a Shelf Pin (e) into the desired location in the Panels (v,w,x). For each shelf, four Shelf Pins will be required. Insert each Mid Shelf (r) into the assembly and press fit onto the Shelf Pins. Make sure the wood strip on each shelf is facing toward the front. See Dia- gram 14 for assistance.
  • Page 10: Side Adjustment

    Each hinge Assembly is adjustable in multiple directions. See Diagram 16 for assistance. Diagram 16 Side Adjustment Depth Adjustment Height Adjustment Sanus Systems 2221 Hwy 36 West, St. Paul, MN 55113 12.28.05 Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
