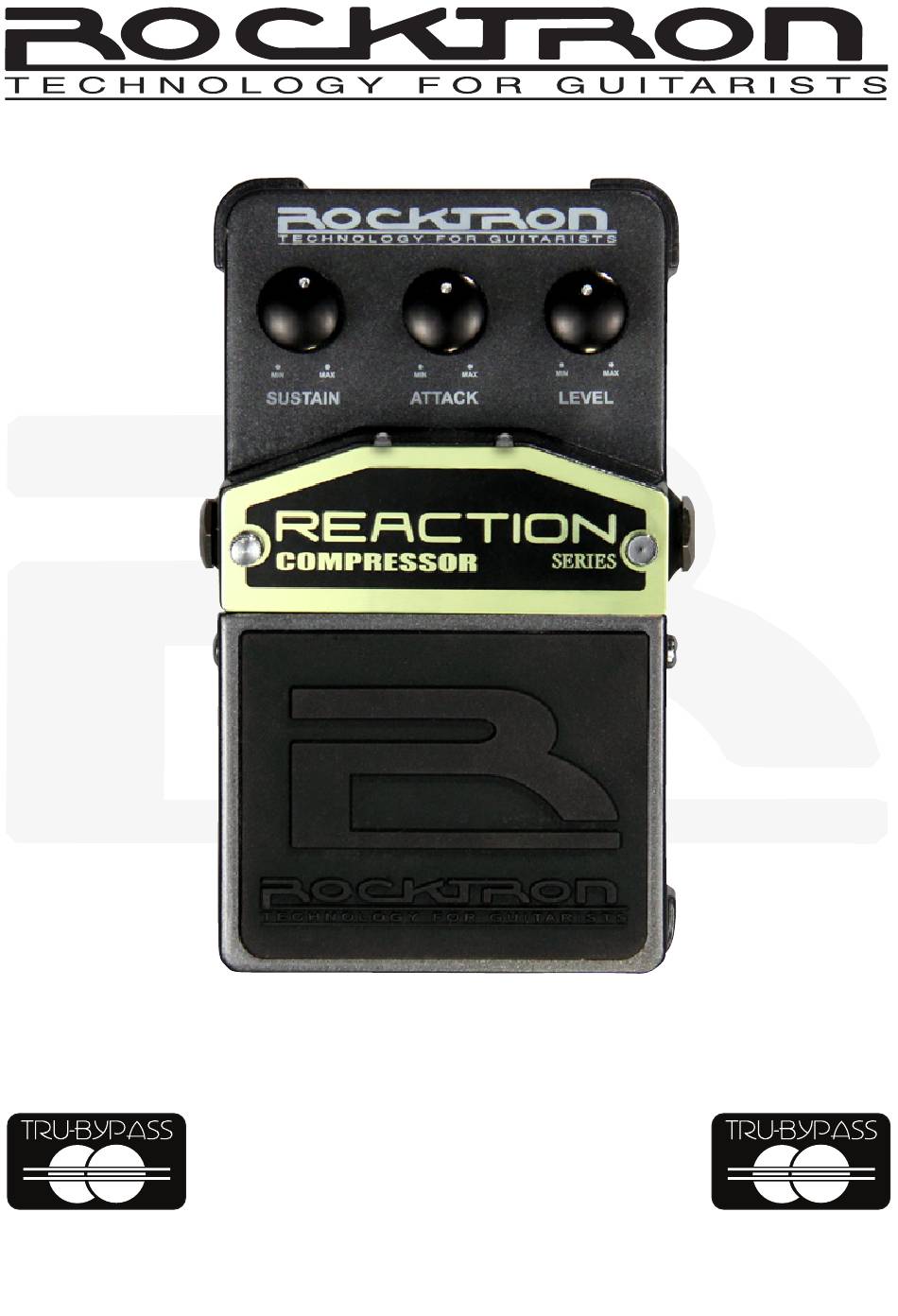

- Page 1 Reaction Compressor Instruction Manual May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 To insure against this possibility, always use good shielded cables for all audio input and output connections. This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website (www.rocktron.com).
- Page 3 Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
- Page 4 Most studio compressors are big and bulky and quite difficult to set. Rocktron comes to the rescue with the Reaction Compressor. It’s as easy as 1, 2, 3 to get professional results that will improve your live performances. Here’s some tips. Start by setting the ATTACK and LEVEL controls around the 12::00 o’clock position.
- Page 5 LEVEL control to fine tune your output level. That’s it! Sound check is done. Use the Reaction Compressor as a master SOLO switch to not only define what you play but also to raise the volume! The soundman can worry about something else…you have performance control!.
- Page 6 Descriptions...
- Page 7 Turning the knob to the right produces a faster attack and to the left a slower attack. 9VDC Input - This input jack provides 9VDC power to the pedal from the Rocktron DC OnTap 9V power supply (sold seperately). LEVEL Control - This control determines the controls the amount of effect added to the output.
- Page 8 Descriptions continued..THUMB SCREWS for Battery Compartment. Unscrew these thumb screws to access the battery compartment. FOOTSWITCH - Use this switch to turn on or off the pedal. The On/Off Led will show you if the pedal is on or off. OUTPUT Jack - Using a standard 1/4”...
-
Page 9: Typical Connection
Typical Connection... -
Page 10: Specifications
7dBu Imput Impedance 2.2MΩ Output Impedance 10KΩ Current Consumption 45mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Uni- veral Power Supply (sold seperately). Negative Tip Dimensions 125mm x 78mm 61mm 5” x 3.25” x 2.5” Weight 0.7kg 1.5lbs... -
Page 11: How To Change The Battery
Place the battery compartment cover on the pedal and re-insert the thumb screws. Save yourself tons of money in batteries by using the Rocktron DC OnTap Universal Power Supply to power this pedal (sold seperately). The Rock- tron DC OnTap provides a constant flow of power to the pedal, unlike a battery that will degrade over time. - Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 7-27-09 2009.1...
