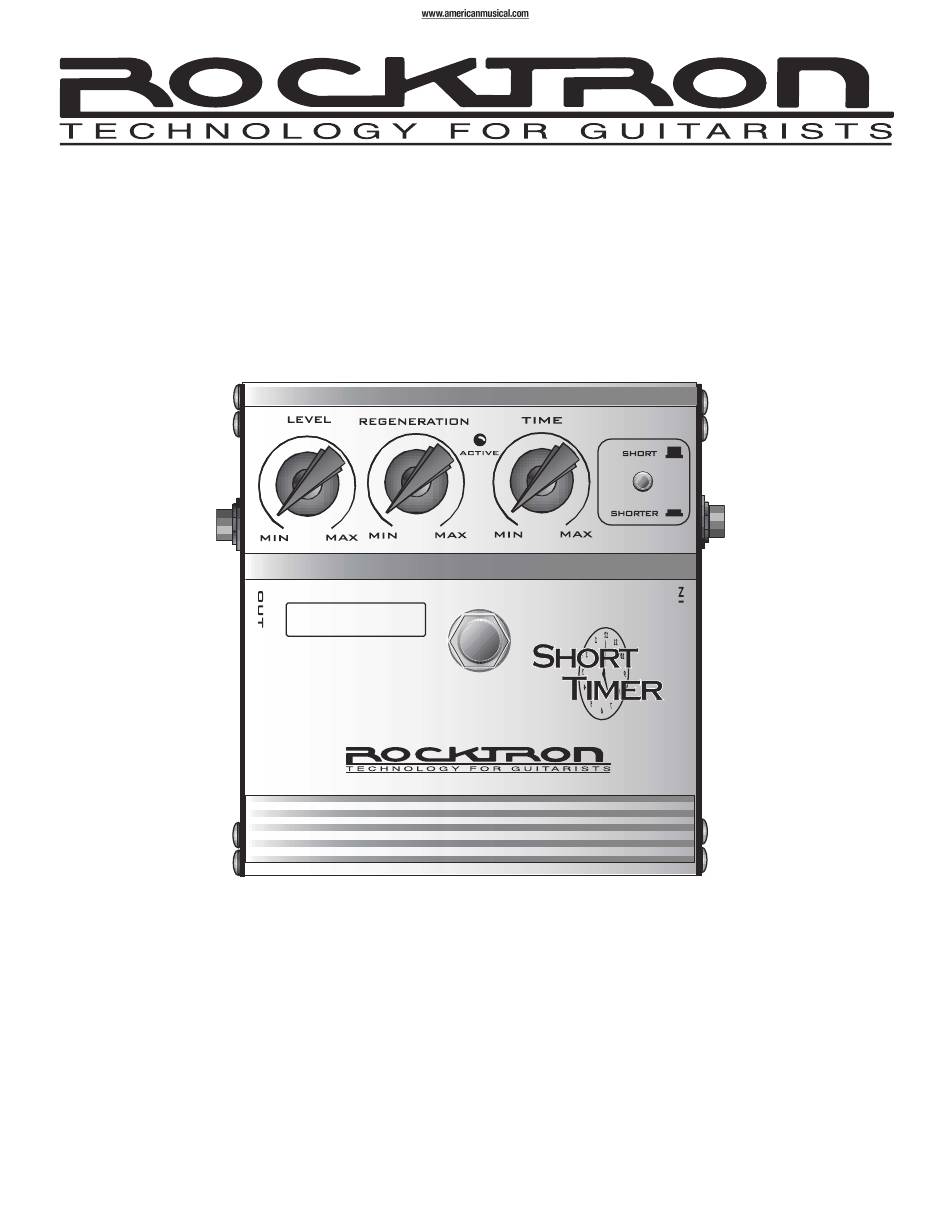

Short Timer Retro Digital Delay Instruction Manual
RETRO
DIGITAL DELAY
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309,
4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.
Other patents pending. Foreign patents pending.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Short Timer Retro Digital Delay and is the answer not in the manual?

Questions and answers

Related Manuals for Rocktron Short Timer Retro Digital Delay

Summary of Contents for Rocktron Short Timer Retro Digital Delay

  • Page 1 Short Timer Retro Digital Delay Instruction Manual RETRO DIGITAL DELAY May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
  • Page 2 This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website - www.rocktron.com). Precautions Read all instructions contained in this manual.
  • Page 3 Precautions Continued..Do not block any ventilation openings (if applicable). Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. This product is not equipped with a plug or cable. This pedal runs on a 9 Volt Battery, if a 9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions.
  • Page 4 Introduction Congratulations on your purchase of the Rocktron Short Timer Retro Digital Delay Pedal. The Short Timer Retro Digital Delay has been specifi- cally designed to provide a short or quick slapback delay that is warm and lush. The Short Timer is an extremely useful live and studio digital delay.
  • Page 5 Connection 1...
  • Page 6 Connection 2...
  • Page 7 RETRO DIGITAL DELAY Level Control - Adjusts the overall volume of the delay effect. Turning the control clockwise increases the volume of the delay. Turning the control counter-clockwise decreases the volume. Regeneration Control - Adjusts the number of repetitions of delay effect.

  • Page 8: Left Side

    Bottom Left Side Right Side Output Jack - Using a standard guitar cable with a 1/4” jack, plug into the input of your guitar amplifier or next stomp box Input - Using a standard guitar cable with a 1/4” jack, plug the output of your distortion pedal or your guitar into this jack.

  • Page 9: Specifications

    Specifications +10dBu Maximum Input 1M ohm Input Impedance 27ma Current Consumption 9VDC <=300ma Power Requirements * CE Approved * Hints and Tips: Digital Delay pedals usually sound better when placed after distortion. Thus, if you are using a distortion pedal, place the Short Timer after the distortion pedal in the signal chain.

  • Page 10: Other Rocktron Products

    Other Rocktron Products Rack Gear: Gainiac (preamp w/12ax7 tube)  Chameleon 2000 (preamp w/multi-effects) RepliTone MP(modelling preamp w/multi-effects) Xpression (multi-effects processor) Blue Thunder (bass preamp w/multi-effects)  Voodu Valve (preamp w/12ax7 tube and multi-effects) Prophesy (our top of the line preamp with multi-effects) ...

  • Page 11: Foot Controllers

    Foot Controllers: MIDI Mate (Midi Foot Controller) MIDI XChange(MIDI Footcontroller)  All Access (Midi Foot Controller ) HEX (Expression Pedal) RMM900(7-pin Din MIDI Cable) RM4 (MIDI Controller for Vendetta amps) RFS1 and RFS2 (Single and Double Latching Footswitchs for Rampage Amps) Electric Guitar - Acoustic Guitar and Bass Amplifiers: Vendetta Head(100 W Head 4-Channels All Tube - MIDI Switchable) Vendetta Combo (100W 2x12 Combo Celestion 90s all Tube4-Channel MIDI Switchable)
  • Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49015 Rocktron Phone: 1-(269)-968-3351 Email: info@rocktron.com www.rocktron.com 2003-0001 Rev. 02/01/03...
