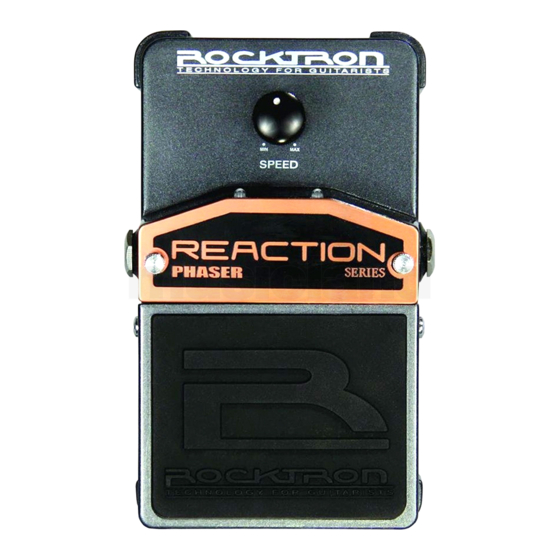

Rocktron Reaction Phaser Instruction Manual

Rocktron reaction series pedals instruction manual
Hide thumbs

Advertisement

Quick Links

Download this manual

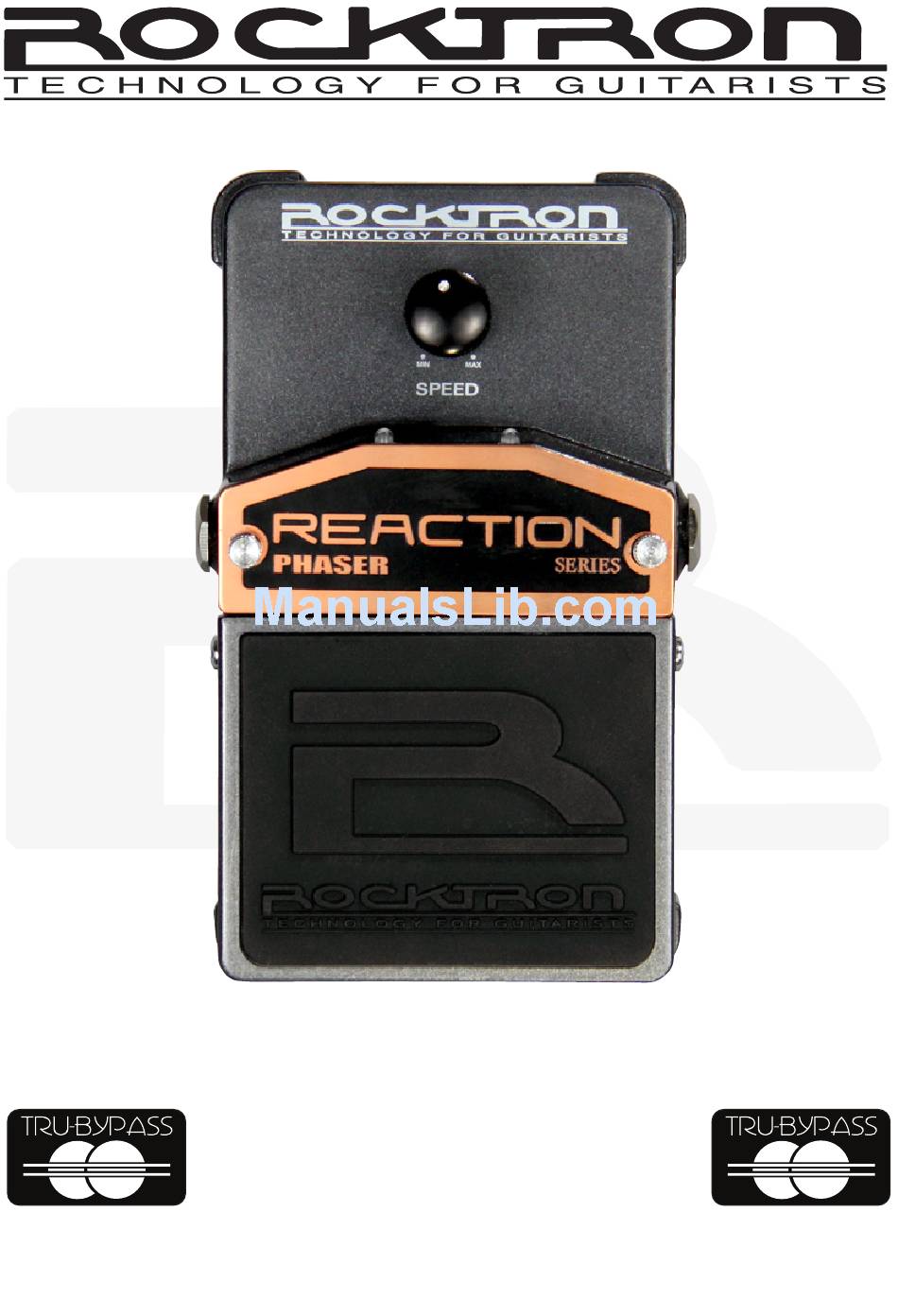

Reaction Phaser
Instruction Manual
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047,
4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.
Other patents pending. Foreign patents pending.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Reaction Phaser and is the answer not in the manual?

Questions and answers

Related Manuals for Rocktron Reaction Phaser

Summary of Contents for Rocktron Reaction Phaser

  • Page 1 Reaction Phaser Instruction Manual May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
  • Page 2 To insure against this possibility, always use good shielded cables for all audio input and output connections. This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website (www.rocktron.com).
  • Page 3 Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
  • Page 4 The Reaction Phaser is a TRUE BYPASS pedal: when you turn it off…it is out of your signal path! The Reaction Phaser is very easy to use. Just set the SPEED control and off you go. The SPEED knob controls the speed of the modula- tion waveform.
  • Page 5 Introduction continued..Placing the Reaction Phaser first in the chain in front of your distortion or directly into your amp will produce a grainy, gritty effect that adds excitement to your playing. Conversely, if placed after your distortion pedal, or within the effects loop of an amp, it will produce a smoother effect.
  • Page 6 Descriptions...
  • Page 7 9VDC Input - This input jack provides 9VDC power to the pedal from the Rocktron DC OnTap 9V power supply (sold seperately). ON/OFF Leds - These LEDs shows if the pedal is on or off. When the LED is lit the pedal is on.
  • Page 8 Descriptions continued..THUMB SCREWS for Battery Compartment. Unscrew these thumb screws to access the battery compartment. FOOTSWITCH - Use this switch to turn on or off the pedal. The On/Off Led will show you if the pedal is on or off. OUTPUT Jack - Using a standard 1/4”...

  • Page 9: Typical Connection

    Typical Connection...

  • Page 10: Specifications

    -3dBu Imput Impedance 470kΩ Output Impedance 10kΩ Current Consumption 20mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Univeral Power Supply (sold seperately) Nega- tive tip Dimensions 125mm x 78mm x 61mm 5” x 3.25” x 2.5” Weight 0.7kg...

  • Page 11: How To Change The Battery

    The Rocktron DC OnTap provides a constant flow of power to the pedal, unlike a battery that will degrade over time. The Rocktron DC OnTap Univeral Power Supply can also power up to 20 pedals and can be used with both 110V and 220V power sources.
  • Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 7-27-09 2009.1...
