- Page 1 Reaction Octaver Instruction Manual May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 To insure against this possibility, always use good shielded cables for all audio input and output connections. This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website (www.rocktron.com).
- Page 3 Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

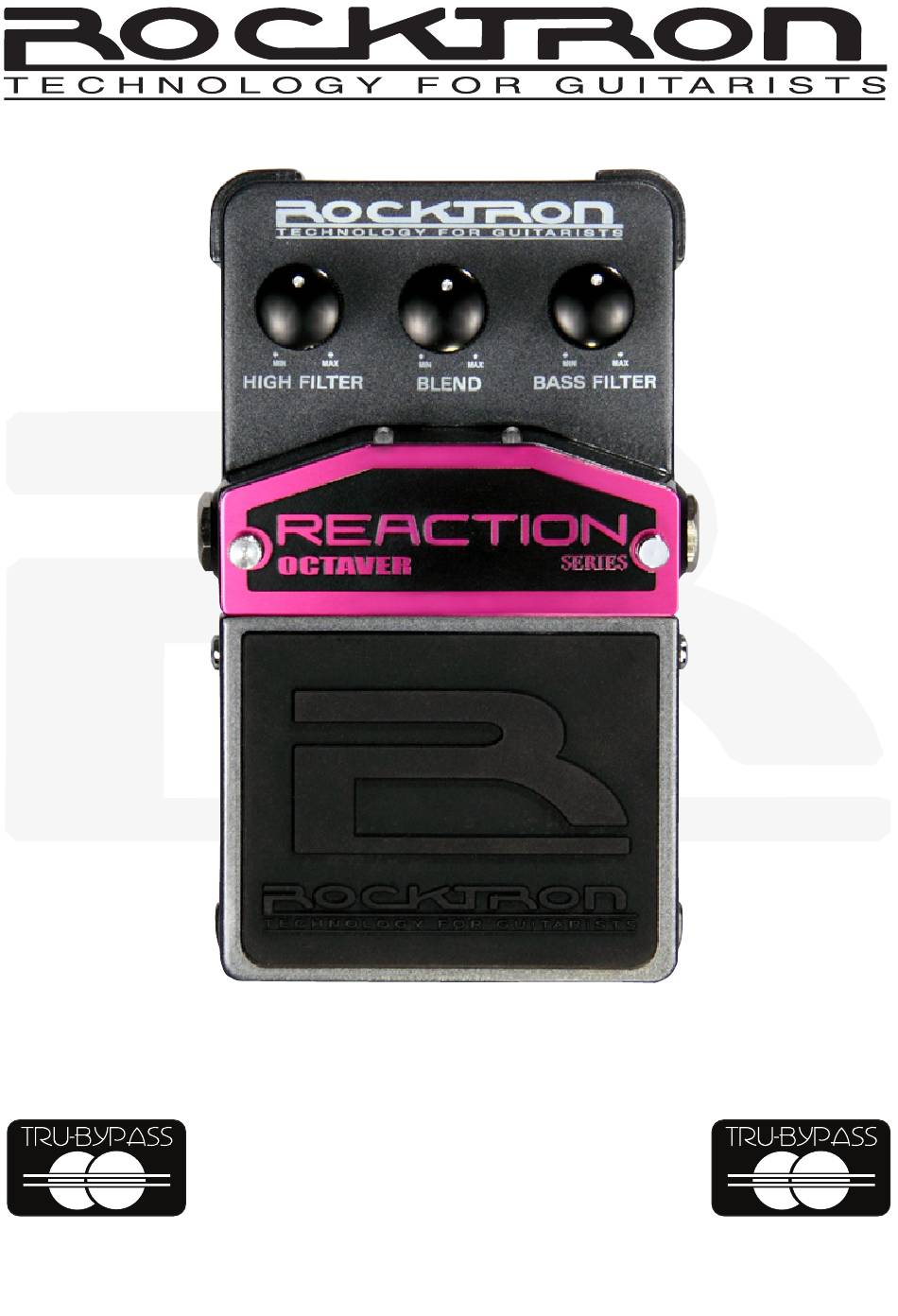

- Page 4 Rocktron’s Reaction Series pedals are built into a rugged metal slim form factor chassis, taking up as little space as possible on your pedalboard. The Reaction Octaver is a TRUE BYPASS pedal: when you turn it off…it is out of your signal path!
- Page 5 The footswitch on the Reaction Octaver controls On/Off status as shown by the LED indicator. Reaction stomp boxes run on a 9V Alkaline battery, or may also be powered by Rocktron’s DC OnTap Universal Power...
- Page 6 Descriptions...
- Page 7 9VDC Input - This input jack provides 9VDC power to the pedal from the Rocktron DC OnTap 9V power supply (sold seperately). BASS FILTER Control - This control determines the overall bass EQ content of the effect.
- Page 8 Descriptions continued..INPUT Jack - Using a standard 1/4” guitar cable, plug your guitar into this jack. THUMB SCREWS for Battery Compartment. Unscrew these thumb screws to access the battery compartment. FOOTSWITCH - Use this switch to turn on or off the pedal.
-
Page 9: Typical Connection
Typical Connection... -
Page 10: Specifications
Maximum Output 4dBu Imput Impedance 1MΩ Output Impedance Current Consumption 20mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Univeral Power Supply (sold seperately). Negative tip. Dimensions 125mm x 78mm 61mm 5” x 3.25” x 2.5” Weight 0.7kg 1.5lbs... -
Page 11: How To Change The Battery
Place the battery compartment cover on the pedal and re-insert the thumb screws. Save yourself tons of money in batteries by using the Rocktron DC OnTap Universal Power Supply to power this pedal (sold seperately). The Rock- tron DC OnTap provides a constant flow of power to the pedal, unlike a battery that will degrade over time. - Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 7-27-09 2009.1...
