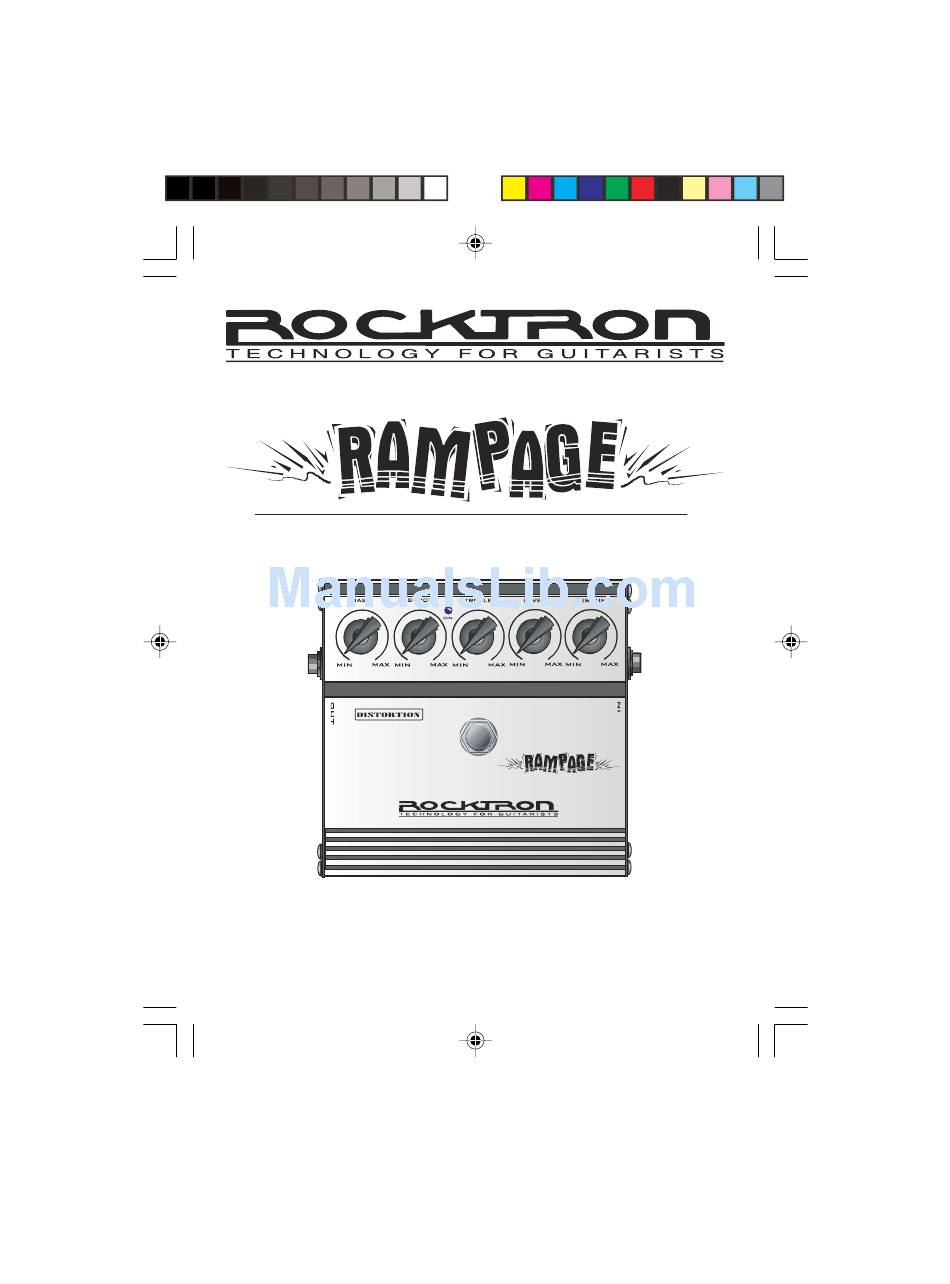

- Page 1 U S E R ' S M A N U A L May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 Your Rampage pedal has been tested and complies with the following Standards and Directives as set forth by the European Union: Council Directive(s): 89/336/EEC Electromagnetic Compatibility Standard(s): EN55013, EN50082-1 This means that this product has been designed to meet stringent guidelines on how much RF energy it can emit, and that it should be immune from other sources of interference when properly used.
- Page 3 Along with Bass, Treble, Sustain and Output level controls, the Rampage also provides a special "Scoop" control which allows you to cut the mids by up to 30dB. The Rampage is housed in an ultra-rugged chassis with slightly recessed controls to protect against any accidental bumps which might alter your settings.
- Page 4 Functions 1 = Adjusts low frequency levels 2 = Adjusts mid frequency levels 3 = LED - When lit the LED indicates that the Rampage is "Active". 4 = Adjusts high frequency levels 5 = Adjusts overall volume levels 6 = Adjusts level of distortion...
- Page 5 Connection...
- Page 6 Using the Rampage with a power amp and speaker cabinets...
- Page 7 I n t r o d u c t i o n French France F u n c t i o n s...
- Page 8 France 1 = Règle le niveau des graves 2 = Règle le niveau des médiums 3 = LED - Quand la LED est allumée cela signifie que la pédale Rampage est en fonction 4 = Règle le niveau des aigus 5 = Règle le niveau de volume général...
- Page 9 I n t r o d u c t i o n German Germany F u n c t i o n s...
- Page 10 5 = Einstellen der Gesamtlautstärke 6 = Einstellen der Intensität der Verzerrung 7 = 9 Volt DC Netzteilanschluss 8 = Eingangsbuchse (Klinke) 9 = Ausgangsbuchse (Klinke) 10 = Batteriefach 11 = Dieser Schalter schaltet das Rampage Pedal abwechselnd auf aktiv oder auf „Bypas...
- Page 11 I n t r o d u c t i o n Italian Italy F u n c t i o n s...
- Page 12 1 = regola il livello delle basse frequenze 2 = regola il livello delle medie frequenze 3 = LED - quando la luce del LED è accesa indica che il Rampage è attivo 4 = regola il livello delle alte frequenze...
- Page 13 I n t r o d u c t i o n Portuguese Portugal Pedal de Distorção RAMPAGE F u n c t i o n s...
- Page 14 (Portugal) 1 = Ajuste do nível das frequências baixas 2 = Ajuste do nível das frequências médias 3 = LED – Quando aceso, o LED indica que o pedal RAMPAGE está “Activo”. 4 = Ajuste do nível das frequências altas 5 = Ajuste do volume global 6 = Ajuste do nível da distorção...
- Page 15 I n t r o d u c t i o n Spanish Spain F u n c t i o n s...
- Page 16 1 = Ajusta el nivel de Graves 2 = Ajusta el nivel de Medios 3 = LED - Cuando se ilumina indica que el Rampage está "Activo". 4 = Ajusta el nivel de Agudos 5 = Ajusta el nivel general de volumen 6 = Ajusta el nivel de distorsión...
- Page 17 S p e c i f i c a t i o n s Maximum Input +8dBu Maximum Output +8dBu Input Impedance Output Impedance Bass Control ±15dB Treble Control ±15dB Scoop Control -30dB @800Hz Sustain Control >75dB of gain Current Consumption 17mA Power Requirements 9V battery or 9V DC adaptor...
- Page 18 Check out some of our other products: Rack Gear: Gainiac (preamp w/12ax7 tube) Chameleon 2000 (preamp w/multi-effects) Voodu Valve (preamp w/12ax7 tube and multi-effects) Prophesy (our top of the line preamp with multi-effects) Xpression (Multi-effects processor for Guitar and Bass) Blue Thunder (Bass Preamp with Multi-effects) HUSH Super C (guitar noise silencing system) Vendetta VP4 Preamp (All Tube 4-Channel Guitar preamp - 2 Rack Space)
- Page 19 Nitro Booster HEX Volume/Expression Pedal Black Cat Moan Wah Wah Foot Controllers: MIDI Mate (Midi Foot Controller) MIDI XChange (MIDI Footcontroller) All Access (Midi Foot Controller RMM900(7-pin Din MIDI Cable) RFS1 and RFS2 (Single and Double Latching Footswitchs for Rampage Amps)
- Page 20 Rocktron -A Division of GHS Corporation 2813 Wilber Avenue Battle Creek MI 49015 Rocktron Phone: 1-(269)-968-3351 Email: info@rocktron.com Check us out on the web at: www.rocktron.com 2003-1105 Rev. 11/05/03...
