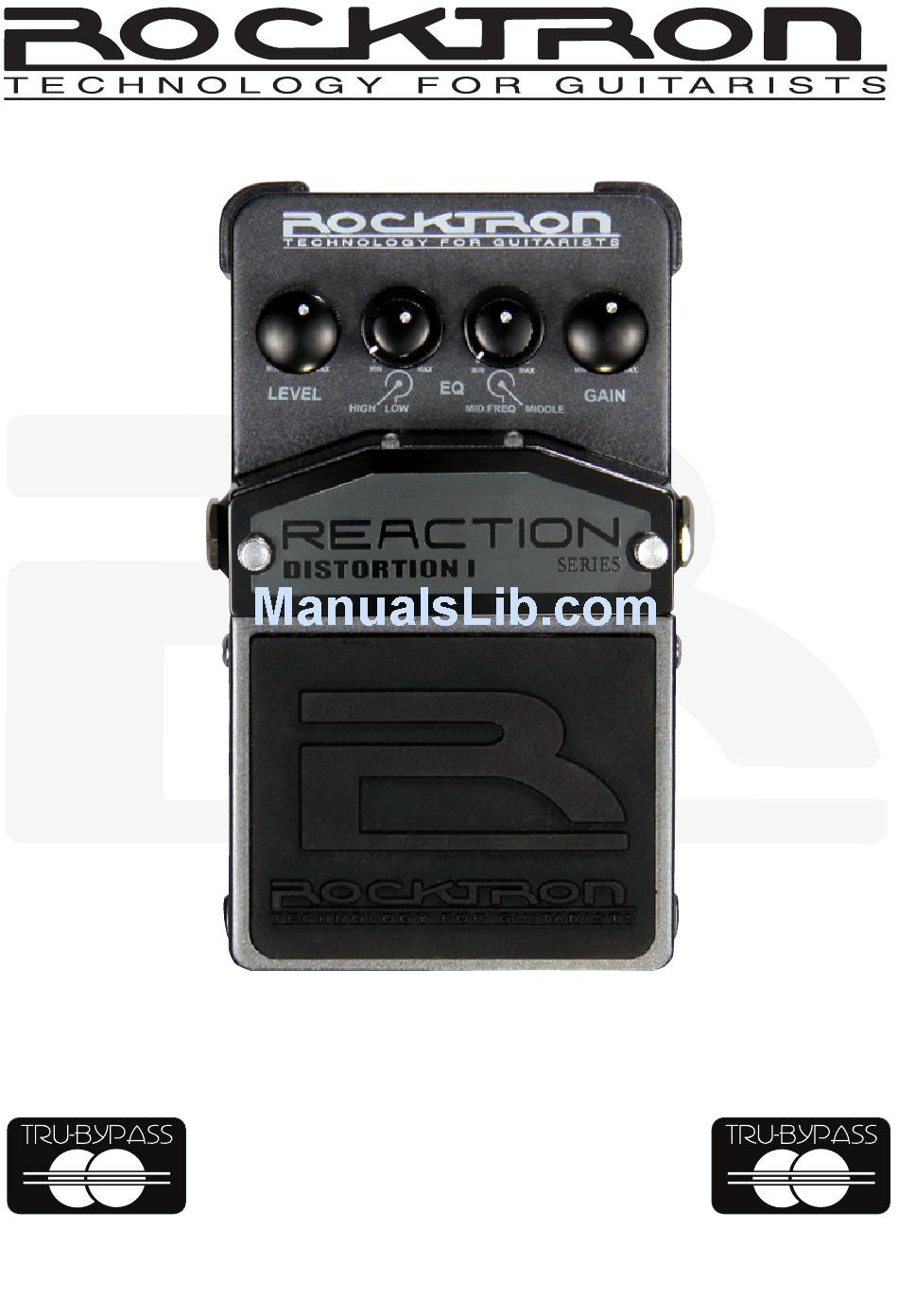

- Page 1 Reaction Distortion 1 Instruction Manual May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 To insure against this possibility, always use good shielded cables for all audio input and output connections. This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website (www.rocktron.com).
- Page 3 Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

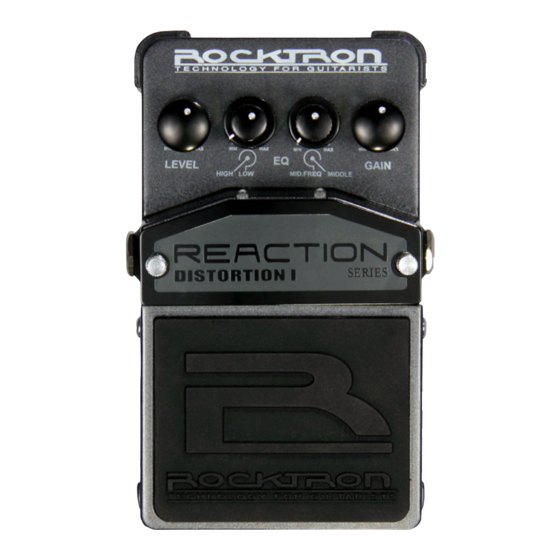

- Page 4 Introduction Not just any distortion pedal, we call this the Rocktron Reaction Distortion because you are gonna get a huge reaction out of your audience with this one! This is wall to wall gain with a full body slammin’ punch to the gut distortion.
- Page 5 The footswitch on the Reaction Distortion controls On/Off status as shown by the LED indicator. Reac- tion stomp boxes run on a 9V Alkaline battery, or may also be powered by Rocktron’s DC OnTap Universal Power Supply adaptor.
- Page 6 Descriptions...
- Page 7 HIGH Control - This control determines the highend treble of the EQ 9VDC Input - This input jack provides 9VDC power to the pedal from the Rocktron DC OnTap 9V power supply (sold seperately).METAL MIDDLE FREQUENCY Control - This control adjusts the midrange EQ sweep.
- Page 8 Descriptions continued..ON/OFF Leds - These LEDs shows if the pedal is on or off. When the LED is lit the pedal is on. When the LED is not lit the pedal is off. BATTERY COMPARTMENT and COVER - The 9V battery can be found in this compartment.
-
Page 9: Typical Connection
Typical Connection... -
Page 10: Specifications
Maximum Output Imput Impedance 1MΩ Output Impedance 1kΩ Current Consumption 20mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Uni- veral Power Supply (sold seperately). Negative Tip. Dimensions 125mm x 78mm 61mm 5” x 3.25” x 2.5” Weight 0.7kg 1.5lbs... -
Page 11: How To Change The Battery
Save yourself tons of money in batteries by using the Rocktron DC OnTap Universal Power Supply to power this pedal (sold seperately). The Rocktron DC OnTap provides a constant flow of power to the pedal, unlike a battery that will degrade over time. - Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 7-27-09 2009.1...
