- Page 1 Reaction Digital Delay Instruction Manual May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617. Other patents pending. Foreign patents pending.
- Page 2 To insure against this possibility, always use good shielded cables for all audio input and output connections. This will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the Rocktron website (www.rocktron.com).
- Page 3 Precautions Refer all service to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.

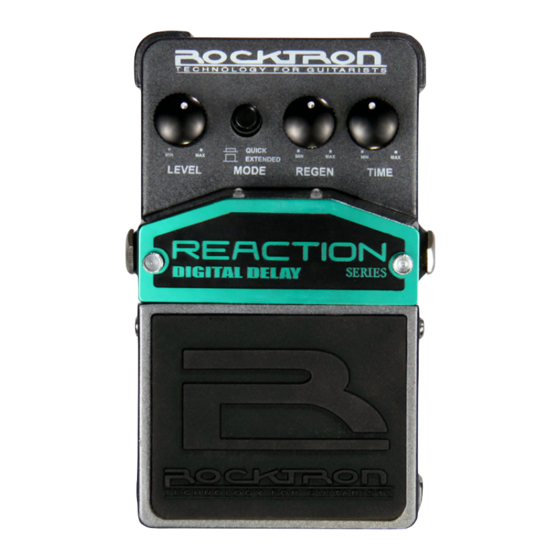

- Page 4 Reaction Digital Delay is a TRUE BYPASS pedal: when you turn it off…it is out of your signal path! The Reaction Digital Delay is very easy to use. Controls include LEVEL, which controls the output level of the effect. MODE determines whether the Delay time range is Quick (62.5 ms –...
- Page 5 Introduction continued..the Time control to find that classic rock phrasing echo. Country pickers or Rockabilly jammers, set the Reaction Digital Delay mode to Quick and dial up your favorite slapback! Most players find that delay pedals will sound better when placed after distortion.
- Page 6 Descriptions...
- Page 7 200ms and 400 ms. The actually delay time is then adjusted using the TIME control knob. 9VDC Input - This input jack provides 9VDC power to the pedal from the Rocktron DC OnTap 9V power supply (sold seperately). REGEN Control - This control determines the number of reptitions (regeneration) of the delay effect.
- Page 8 Descriptions continued..BATTERY COMPARTMENT and COVER - The 9V battery can be found in this compartment. INPUT Jack - Using a standard 1/4” guitar cable, plug your guitar into this jack. THUMB SCREWS for Battery Compartment. Unscrew these thunb screws to access the battery compartment.
-
Page 9: Typical Connection
Typical Connection... -
Page 10: Specifications
3dBu Imput Impedance 1MΩ Output Impedance 1kΩ Current Consumption 36mA Power Requirements 9V Alkaline Battery or Rocktron DC OnTap Uni- veral Power Supply (sold seperately). Negative Tip. Dimensions 125mm x 78mm 61mm 5” x 3.25” x 2.5” Weight 0.7kg 1.5lbs... -
Page 11: How To Change The Battery
Save yourself tons of money in batteries buy using the Rocktron DC OnTap Universal Power Supply to power this pedal (sold seperately). The Rocktron DC OnTap provides a constant flow of power to the pedal, unlike a battery that will degrade over time. - Page 12 Rocktron - A Division of GHS Corporation 2813 Wilber Ave Battle Creek MI 49037 www.rocktron.com info@rocktron.com tel: 1-269-968-3351 rev. 7-27-09 2009.1...
