Summary of Contents for Easee Equalizer Amp

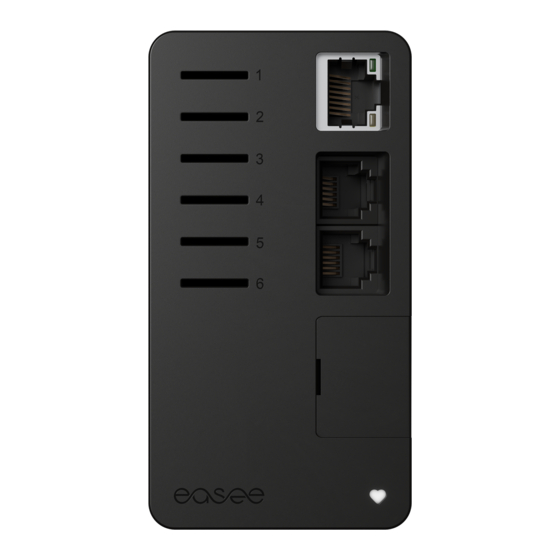

- Page 1 User guide / Installation guide Benutzeranleitung / Installationsanleitung Equalizer Amp...
-
Page 2: Table Of Contents
English Table of contents Deutsch 10 Introduction Introduction Product overview Safety instructions Technical specifications Installation Installation instructions Daily use and operation Practical details IMPORTANT: Read carefully before use. Keep for future reference. When passing on the product, ensure this guide is also passed on. -
Page 3: Introduction
Easee Charging Robot(s) and the building for those that do not have a smart meter installed. Operating conditions Power cable The product must be connected to an Easee Equalizer with the cable provided. For installation and operation purposes, a smartphone with internet connection is needed. -
Page 4: Safety Instructions
Safety instructions Technical specifications Read the entire manual carefully before General installing and operating the product. Observe the following instructions: Dimensions (mm): H: 95 x W: 51 x D: 30 Permitted temperature: -20 °C to +50 °C — Do not use the product if it is damaged Weight: 105 g or does not function properly. -
Page 5: Installation Instructions
Mounting instructions WARNING! This product shall only 1. Mount the Equalizer Amp on the DIN be installed, repaired or serviced rail (A) inside the fuse cabinet. If that’s by an authorised electrician. All not possible, screw the DIN bracket (B) - Page 6 2. Plug the current sensors, L1, L2 and L3, Current sensors Attaching into their respective terminals 1, 2 and 3. Terminal 4, 5 and 6 are extra slots. NOTICE! Depending on national standards, 1. Attach current sensor(s) around each the colour of the cables can vary from conductor either in front or behind the illustration.
- Page 7 Ѐ The current direction is correct on the 1. Connect the included power cable to current sensors. a suitable power source. A separate Ѐ The charging sites and the Equalizer Amp fuse with a maximum rating of 16A is have the same phase sequence. recommended.
- Page 8 1. Go to Ongoing sites, or Update existing Equalizer Setting up site, and select your site. 2. Under Site structure, select Add Equalizer. 3. Enter the WiFi information (the same Use the Installer App to configure the network the chargers are connected to). 4.
-
Page 9: Practical Details
A crossed-out dustbin symbol indicates that where the product is purchased. All correctly a product and its accessories must not be installed Easee hardware is covered by our disposed of in household waste at the end of 3 years* limited warranty. - Page 10 Easee AS. Easee and all other Easee product names and slogans are trademarks or registered trademarks of Easee AS. Easee products can be protected by one or more patents. All other products and services mentioned may be trademarks or service marks of their respective owners.
- Page 11 Easee AS Grenseveien 19 4313 Sandnes, Norway .easee.com...
