Reassembly Instructions - Megger BM5200 Firmware Upgrade Manual

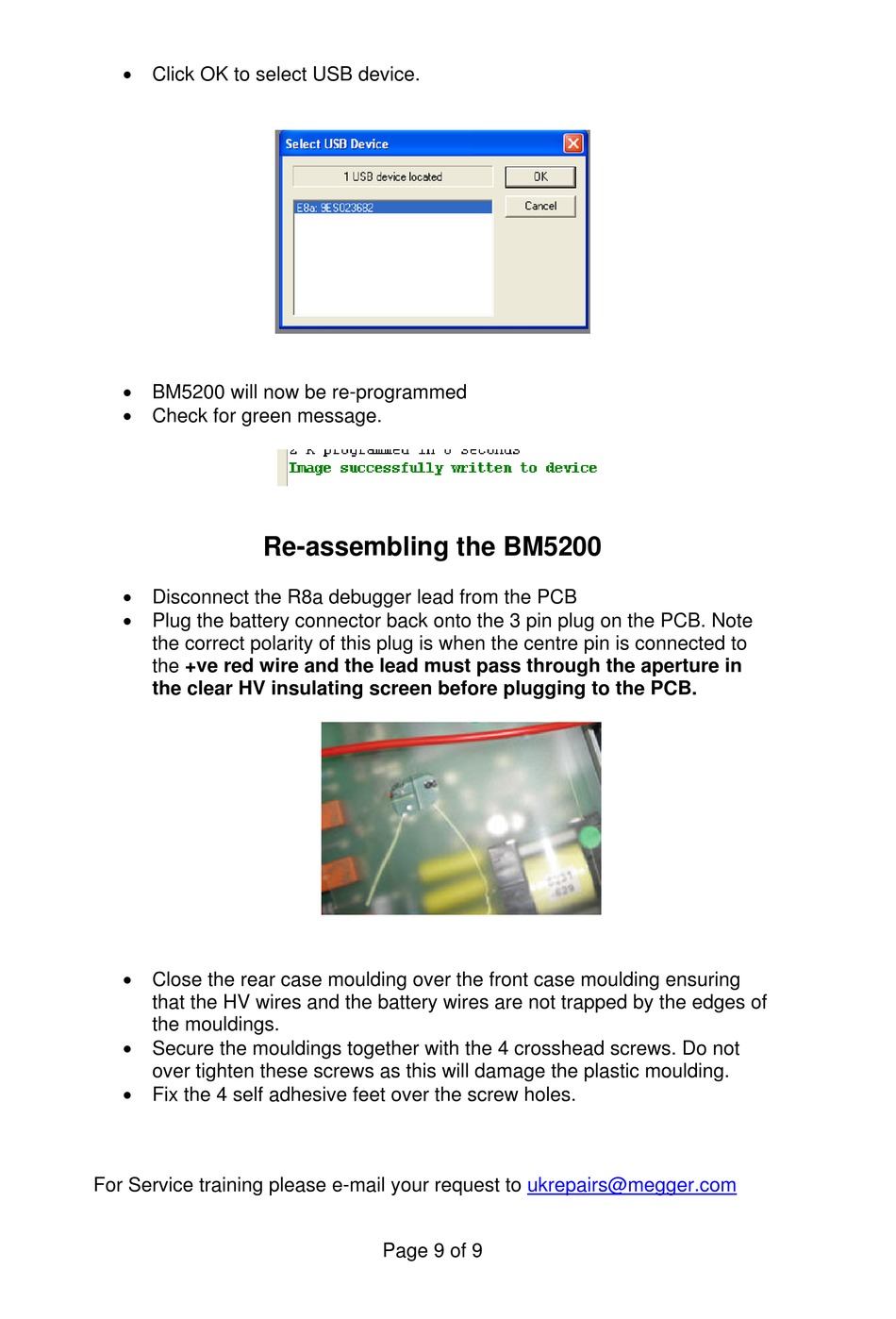

 Click OK to select USB device.
 BM5200 will now be re-programmed
 Check for green message.
 Disconnect the R8a debugger lead from the PCB
 Plug the battery connector back onto the 3 pin plug on the PCB. Note
the correct polarity of this plug is when the centre pin is connected to
the +ve red wire and the lead must pass through the aperture in
the clear HV insulating screen before plugging to the PCB.
 Close the rear case moulding over the front case moulding ensuring
that the HV wires and the battery wires are not trapped by the edges of
the mouldings.
 Secure the mouldings together with the 4 crosshead screws. Do not
over tighten these screws as this will damage the plastic moulding.
 Fix the 4 self adhesive feet over the screw holes.
For Service training please e-mail your request to
Re-assembling the BM5200
Page 9 of 9
