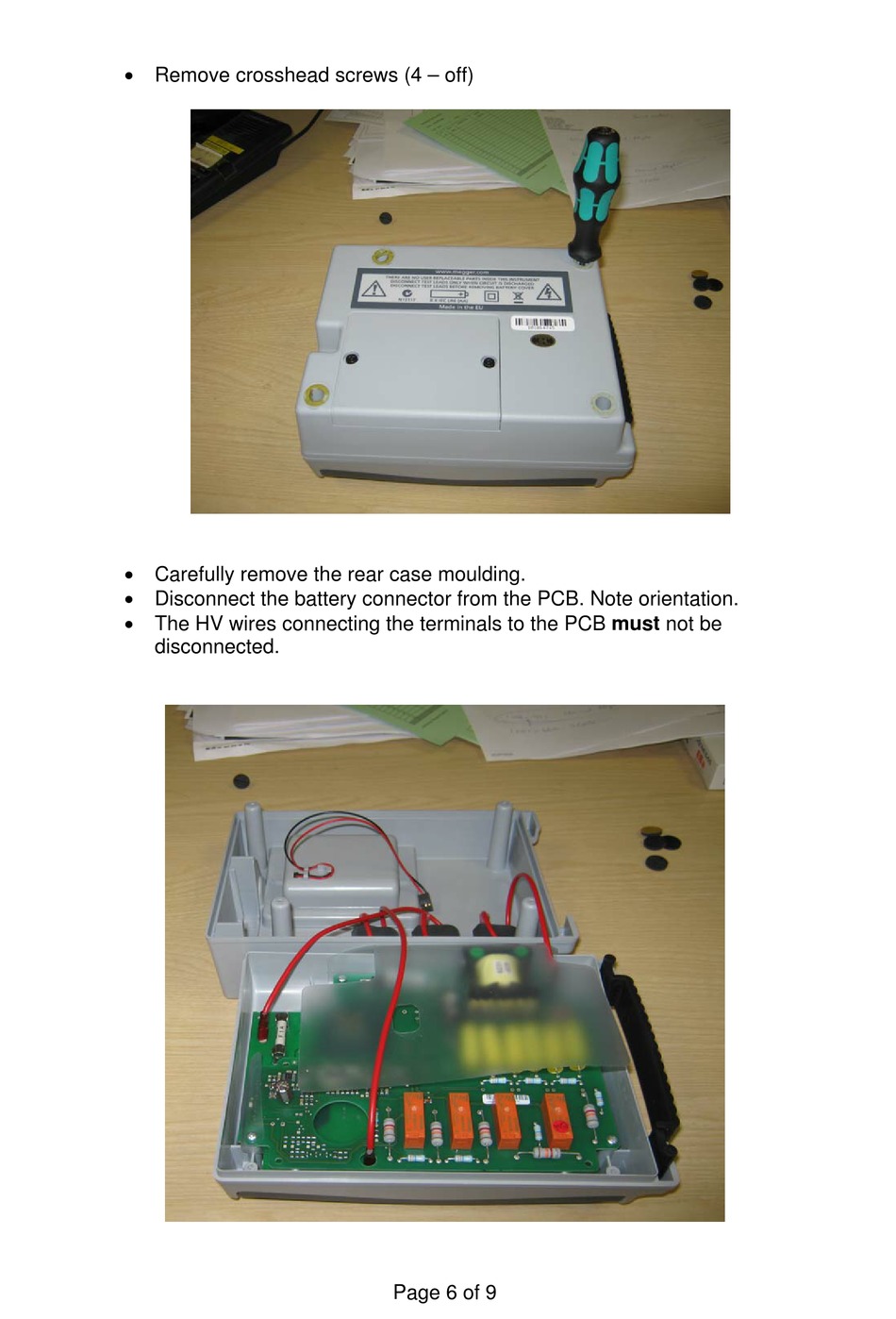

 Remove crosshead screws (4 – off)
 Carefully remove the rear case moulding.
 Disconnect the battery connector from the PCB. Note orientation.
 The HV wires connecting the terminals to the PCB must not be
disconnected.
Page 6 of 9
