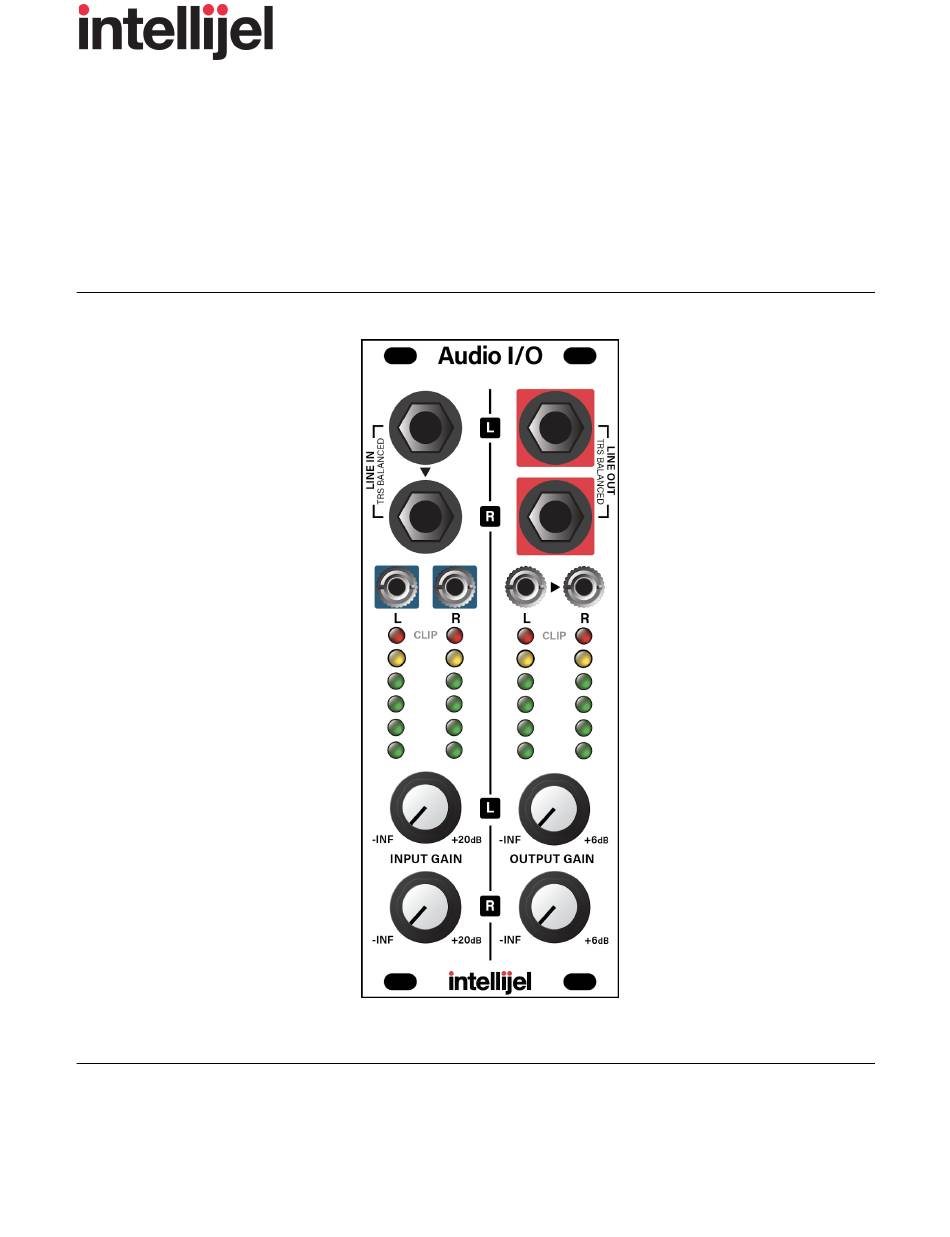

- Page 1 Audio I/O v3 [2023] Eurorack <-> Line Level Audio Interface Manual (English) Revision: 2022.04.10...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION Installing Your Module OVERVIEW FEATURES FRONT PANEL Controls Inputs & Outputs INSTRUCTION Input From an External Source Back Panel I/O TECHNICAL SPECIFICATIONS Audio I/O v3 [2023] Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
INSTALLATION Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, make sure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labeled with “-12V” and/or a thick white stripe, while others have shrouded headers to prevent accidental reversal. -
Page 6: Overview

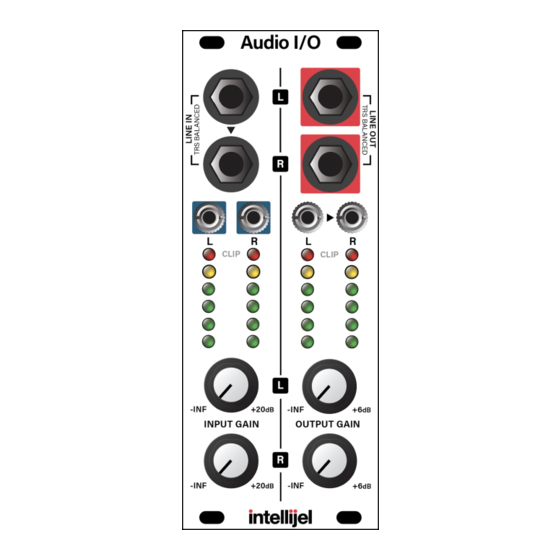

OVERVIEW The Audio I/O allows you to interface your Eurorack modular system to the pro balanced line level world (+4 dBu). You can send and return to rack mount/desktop fx units, patch to external line level instruments like synths and drum machines, interface to a DAW and much more. FEATURES ●... -
Page 7: Front Panel
FRONT PANEL Controls INPUT GAIN L/R : These knobs set the Left and Right channel gain of the signals coming into the modular via the balanced TRS LINE IN L/R jacks. The knob range is from -∞ (no signal) to +20 dB. The signal levels are indicated on the INPUT LEVEL LEDs INPUT LEVEL LEDs : LED ladder indicates the signal level present at the EURO OUT L/R... -
Page 8: Instruction
INSTRUCTION The Audio I/O is divided into two halves that function independently. The left side is the Input side, which takes signals from line level sources such as sound cards, synthesizers, or mixers, and converts them to modular level. The right side is the Output side, and takes signals from modular level sources and converts them to line level for sending to a sound card, mixer, or other outboard processor. -
Page 9: Back Panel I/O
Back Panel I/O You can use the 3-pin CHAIN-IN and 3-pin CHAIN-OUT connectors on the back panel to patch compatible modules to or from the Audio I/O without using the front panel eurorack jacks. The 3-pin CHAIN-IN connector allows you to sum (in parallel) other audio sources to go from Eurorack level to the balanced LINE OUT jacks.
