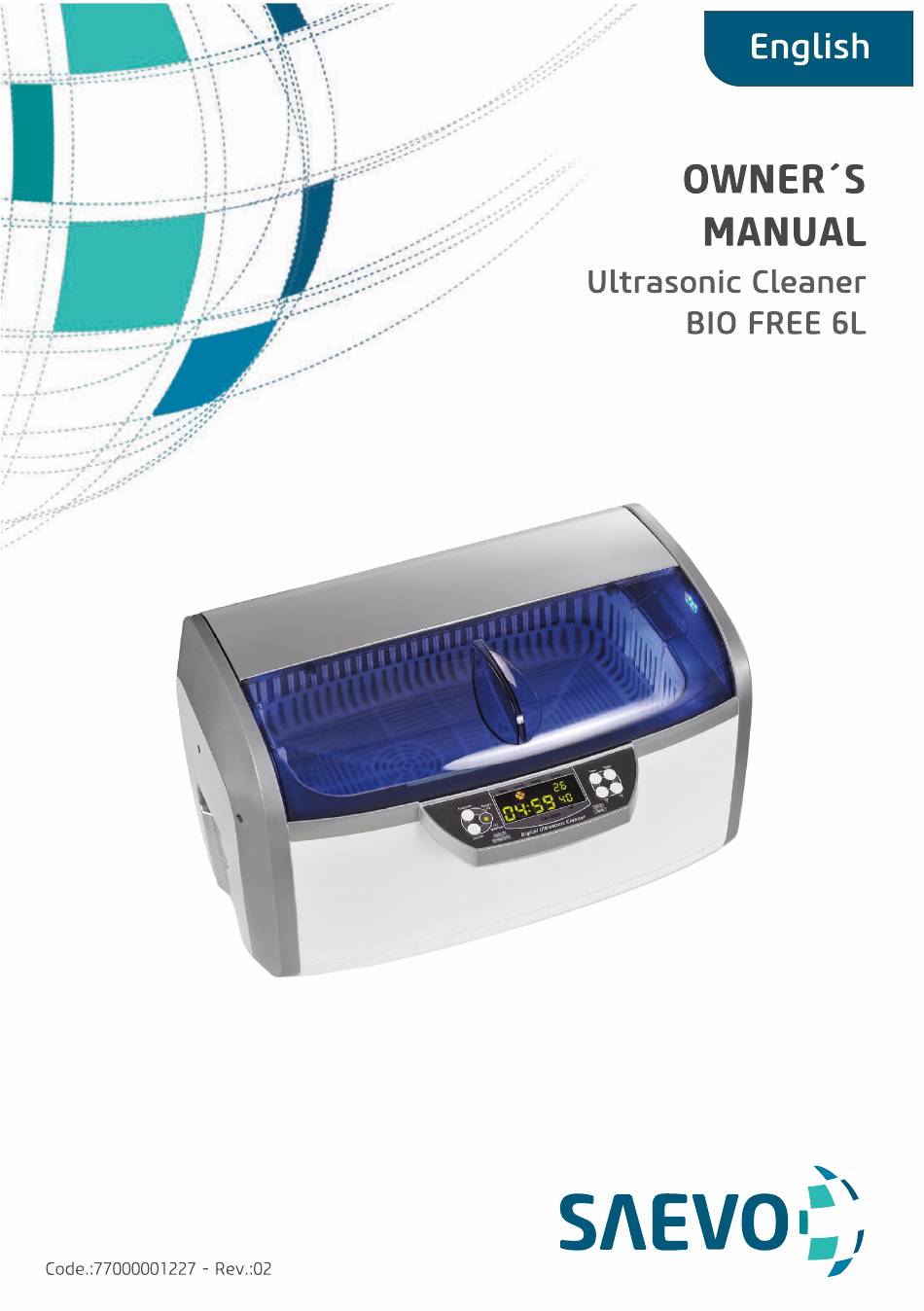

SAEVO BIO FREE 6L Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for SAEVO BIO FREE 6L

Summary of Contents for SAEVO BIO FREE 6L

  • Page 2: Presentation Of Manual

    PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Ultrasound Instrument Cleaning Device Trade Name: Ultrasonic Cleaner Model: Bio Free 6L Brand: Saevo Manufacturer / Distribuitor: Alliage S/A Indústrias Médico Odontológica Rodovia Abrão Assed, Km 53 + 450m - CEP 14097-500 Ribeirão Preto - SP - Brasil...
  • Page 3 INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 04 Indication of Equipment 05 Description of Equipment 06 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 07 APPLICATIONS 08 TECHNICAL SPECIFICATIONS 08 General features 10 Symbology 12 EQUIPMENT OPERATION 19 PRECAUTIONS, RESTRICTIONS AND WARNINGS 20 Recommendations for preserving the equipment 20 Transportation, storage and operation 20 Sensitivity to predictable environmental conditions in ordinary situations of use...

  • Page 4: Identification Of Equipment

    IDENTIFICATION OF EQUIPMENT Dear Customer This manual is a general presentation of your product and it will give you important details to help you to solve possible problems. Please, read it and keep this with you. Indication of Equipment Medical, dental and laboratory instruments and supplies cleaning "removal of blood and small particles on the instruments prior to disinfection".

  • Page 5: Principles And Fundamentals Applied To The Product Functioning

    IDENTIFICATION OF EQUIPMENT Principles and fundamentals applied to the product functioning Cleaning occurs by cavitation, reaching uniformly throughout the material to be clean, even in hard to reach places. This occurs through an ultrasonic vibration generator, where a field test is subjected to a vibration in high frequency when immersed in liquid solution.

  • Page 6: Modules, Accessories, Options And Materials Of Con- Sumption

    MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION The content of this page is for information purposes, and the equipment can be shown different. So, when purchasing, check the technical compatibility between the equipment, couplings and accessories. A - Cover H - Drain tube I - Power Switch B - LED Lights...
  • Page 7 APPLICATIONS Application examples Debris left in small holes and cracks are difficult to clean, where bacteria and fungi can develop. Use ultrasonic cleaning to deep clean items prior to disinfection. Precision parts Articles that use PCBs Personal items Bearings, gears, valves, fuel PCBs cell phones, MP4, ink Glasses and sunglasses.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical specifications of the product and its accessories Features: Cleaning Tank Tank capacity 6000 ml Two industrial ultrasonic transducers More even distribution of sound waves, deep cleaning and high durability Two-color LED display Clock with a range from 10 to 30 minutes, five temperature settings, operating status indicators Two ceramic heaters Modern, safe, efficient and durable Independent control circuits for each ultrasonic transducer...
  • Page 9 TECHNICAL SPECIFICATIONS Number of stages Monophasic / Biphasic Power 310W (220V) / 290W (127V) Ultrasonic Frequency 35.000Hz Tank capacity 6000 ml Tank Dimensions 32,3 x 20,5 x 9,9 cm Longer object allowed in the tank 34 cm Digital clock setting Clock with 1-30 minute interval Tank material Stainless Steel...
  • Page 10 TECHNICAL SPECIFICATIONS SYMBOLOGY The following symbols are used both throughout this manual and on the product. Make sure you fully understand each symbol and follow the instructions that come with it. Fragile, handle with care Maximum stacking Protect from rain Temperature limit This side Up Protect from sunlight...
  • Page 11 TECHNICAL SPECIFICATIONS Function button - Functions Quick clock setting button (Degassing/Normal) Digital display Degassing status Normal cleaning status Heater status Clock quick setup button Time setting button Heater power button Temperature setting button Indicator Light - Working Status On/Off button...

  • Page 12: Equipment Operation

    EQUIPMENT OPERATION Control panel and operations 1. Indicator light – Working status Green - Normal operating status, ready for use. Red - Under the protection of overheating, it takes 15 minutes of waiting for the light changes from red to green. The operation can be resumed later. 2.
  • Page 13 EQUIPMENT OPERATION 5. Normal cleaning status - Illuminated, normal cleaning is in progress. 6. Heater status Press the TC button, it flashes , indicating that the heater is on. Press the TC button again, it turns off , indicating that the heater is off. 7.
  • Page 14 EQUIPMENT OPERATION Cleaning methods Appropriate places: Optical stores, laboratories chemical Regular cleaning and dental clinics. Cleaning methods: 1. Add water to the cleaning tank to a level between the lines "MIN" and "MAX" and above the object. 2. Place the objects to be cleaned inside the basket and place the basket inside the tank.

  • Page 15: Advanced Cleaning

    EQUIPMENT OPERATION Cleaning methods: 1. Place the object inside a container. Add the proper fluid to submerge the object. 2. Place the container directly into the tank. Add water to a level between MIN and MAX, without covering the container. 3.

  • Page 16: Special Cleaning

    EQUIPMENT OPERATION Special cleaning Objects made of silver, copper or brass darkened by oxidation need special cleaning. Appropriate places: Manufacturers of products made of copper, silver or bronze. Cleaning methods: 1. Place the objects in the basket and then in the tank; add water to a level between MIN and MAX above the objects.
  • Page 17 EQUIPMENT OPERATION Operating guidelines Open the lid, as shown, place the objects in the basket and then place them in the cleaning tank. Add water to a level between “MIN” and “MAX” and above the objects. If the device is switched on without water, the ultrasonic energy will not be absorbed.
  • Page 18 EQUIPMENT OPERATION Select one of four cleaning methods previously recommended. a. When the heater is needed, press the TEMP button to select one of five preset temperature settings. Press the TC button, it will flash , indicating that the heater is on. The LED display shows the actual temperature of water.

  • Page 19: Precautions, Restrictions And Warnings

    PRECAUÇÕES, RESTRIÇÕES E ADVERTÊNCIAS PRECAUTIONS, RESTRICTIONS AND WARNINGS Não ligue o aparelho sem que haja água no tanque. Do not connect the device without water in the tank. Mesmo que a unidade tenha sido projetada com múltiplas Even if the unit has been designed with multiple protections, if it proteções, se ela estiver ligada há...

  • Page 20: Transportation, Storage And Operation

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Recommendations for preserving the equipment Your equipment has been designed and developed according to the standards of modern techology. Similarly to other kinds of equipment, it requires special care, which is many times neglected due to several reasons and circunstances. Therefore, here are some important reminders for your daily routine.

  • Page 21: Precautions And Warnings "During The Use" Of Equipment

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Grounding is compulsory, only this way the user will be completely safe. It is only the user's responsibility not to ground, implying in the loss of warranty. Use threepin outlet. Never connect the grounding to the neutral. Precautions and warnings “during the use”...

  • Page 22: Corrective And Preventive Maintenance And Preservation

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Precautions in case of alteration in the functioning of equipment - If the equipment has any abnormality, check if the problem is related to any item listed in the topic of unforeseen events (failures, causes and solutions). If it is not possible to resolve the problem, turn off the equipment, remove the power supply cable from the socket and contact your representative (Alliage).
  • Page 23 CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION Preventive Maintenance The equipment must suffer routinely measurements, following the current legislation of the country. But, never with a period superior to 3 years. For protecting your equipment, look for a Alliage’ technical assistance for periodic reviews as preventive maintenances.

  • Page 24: Unforeseen Events - Solution Of Problems

    UNFORESEEN EVENTS – SOLUTION OF PROBLEMS Upon coming across any problem in operation, follow the instructions below to check and repair the problem, and/or get in touch with your representative. Problem Probable Cause Solution - Completely dead. - Plug disconnected from ne- –...
