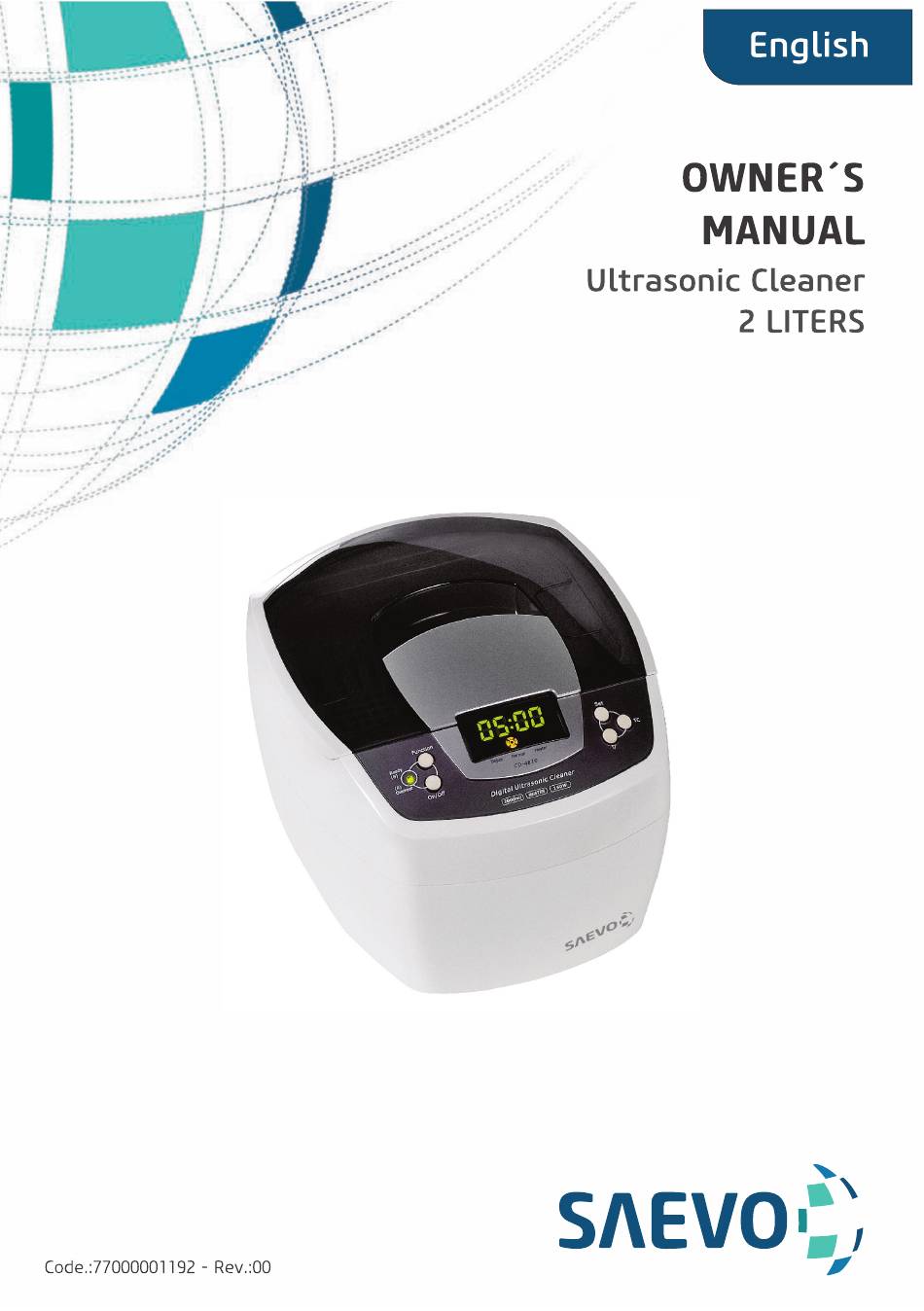

SAEVO BioFree 2L Owner's Manual

2 liters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioFree 2L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SAEVO BioFree 2L

Summary of Contents for SAEVO BioFree 2L

  • Page 2: Presentation Of Manual

    PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Ultrasonic Cleaner Trade Name: BioFree Ultrasonic Cleaner 2L Model: BioFree 2L Brand: Saevo Manufacturer / Distribuitor: Alliage S/A Indústrias Médico Odontológica C.N.P.J. 55.979.736/0001-45 - Insc. Est. 582.002.897.114 Rod. Abrão Assed, Km 53+450m - Cx. Postal 782 CEP 14097-500 Ribeirão Preto - S.P.
  • Page 3 INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 04 Indication of Equipment 05 Description of Equipment 06 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 07 APPLICATIONS 08 TECHNICAL SPECIFICATIONS 08 General features 10 Packing symbols 10 Product symbols 12 EQUIPMENT OPERATION 19 PRECAUTIONS, RESTRICTIONS AND WARNINGS 20 Recommendations for preserving the equipment 20 Transportation, storage and operation...

  • Page 4: Identification Of Equipment

    Please, read it and keep this with you. IDENTIFICATION OF PRODUCT Technical Name: Ultrasonic Cleaner Trade Name: BioFree Ultrasonic Cleaner 2L Model: BioFree 2L Brand: Saevo Indication of Equipment Medical, dental and laboratory instruments and supplies cleaning "removal of blood and small particles on the instruments prior to disinfection".

  • Page 5: Principles And Fundamentals Applied To The Product Functioning

    IDENTIFICATION OF EQUIPMENT Principles and fundamentals applied to the product functioning Cleaning occurs by cavitation, reaching uniformly throughout the material to be clean, even in hard to reach places. This occurs through an ultrasonic vibration generator, where a field test is subjected to a vibration in high frequency when immersed in liquid solution.

  • Page 6: Modules, Accessories, Options And Materials Of Con- Sumption

    MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION The content of this page is for information purposes, and the equipment can be shown different. So, when purchasing, check the technical compatibility between the equipment, couplings and accessories. digital panel A - Cover B - Stainless steel bowl C - Retreat to dump water D - Dashboard...
  • Page 7 APPLICATIONS Application examples Debris left in small holes and cracks are difficult to clean, where bacteria and fungi can develop. Use ultrasonic cleaning to deep clean items prior to disinfection. Precision parts Articles that use PCBs Personal items Bearings, gears, valves, fuel PCBs cell phones, MP4, ink Glasses and sunglasses.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS Technical specifications of the product and its accessories Features: Cleaning Tank Tank capacity 2000 ml. Industrial ultrasonic transducer More even distribution of sound waves, deep cleaning and high durability. Two-color LED display Clock with a range from 10 to 30 minutes, suitable for various cleaning applications. Guard against overheating Avoid overheating prolonging equipment life.
  • Page 9 TECHNICAL SPECIFICATIONS Power 160W (220V) / 150W (127V) Ultrasonic Frequency 35.000Hz Tank capacity 2000 ml Tank Dimensions 18,3 x 15,3 x 7,7 cm Longer object allowed in the tank 20,4 cm Digital clock setting Clock with 1-30 minute interval Tank material Stainless Steel Body Material (housing) Net weight...

  • Page 10: Packing Symbols

    TECHNICAL SPECIFICATIONS Packing symbols It determines the maximum Packing to be transported and / quantity of boxes which can be or stored avoiding humidity, rains stacked during transportation and and wet floor. storage “as per packaging”. The packing must be stored and Packing to be transported and / transported away from direct sun or stored with the harrows up.
  • Page 11 TECHNICAL SPECIFICATIONS Product symbols Refer to the instruction manual. Digital display Degassing status Normal cleaning status Heater status Clock quick setup button Time setting button Heater power button...

  • Page 12: Equipment Operation

    EQUIPMENT OPERATION Control panel and operations 1. Indicator light – Working status Green - Normal operating status, ready for use. Red - Under the protection of overheating, it takes 15 minutes of waiting for the light changes from red to green. The operation can be resumed later. 2.

  • Page 13: Heater Status

    EQUIPMENT OPERATION Control panel and operations - Degassing status - Illuminated, the degassing function is selected. - Blinking, the degassing is in progress. - Normal cleaning status - Illuminated, normal cleaning is in progress. Heater status Press the TC button, it flashes indicating that the heater is on.
  • Page 14 2. When objects are relatively large and with oily residues, they can be placed directly into the tank. We inform that the Saevo Biofree Ultrasonic Washing Machines present outstanding results when it is used only water in the cleaning process, however, in case any customer wishes...

  • Page 15: Cleaning Methods

    EQUIPMENT OPERATION Cleaning methods Indirect clearing Place objects in a separate container. Use ultrasonic waves to penetrate the container and to clean. Appropriate places: Print shops, technical assistance of mobile phones and electronics. Different industries use different fluids to be used inside the containers: 1.

  • Page 16: Special Cleaning

    EQUIPMENT OPERATION Cleaning methods Advanced cleaning Appropriate places: Automotive repair and hardware manufacturers stores. 1. Place the objects directly in the cleaning tank. Do not place objects over each other, to avoid friction during cleaning. 2. Add water to a level between MIN and MAX above the objects.
  • Page 17 EQUIPMENT OPERATION Operating guidelines Remove the lid, place the items in the basket, and then put them in the cleaning tank. Add water until a level between MIN and MAX and above the objects. If the device is switched on without water, the ultrasonic energy will not be absorbed.
  • Page 18 EQUIPMENT OPERATION Operating guidelines Press the On/Off button once to start the cleaning. During cleaning, a humming can be heard coming from the cleaning tank, indicating that cleaning is in progress. Closing the lid will reduce the noise level. The LED display will count down, showing the remaining cleaning time.

  • Page 19: Precautions, Restrictions And Warnings

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Do not connect the device without water in the tank. Even if the unit has been designed with multiple protections, if it is turned on for more than 15 seconds without water in the tank, it could damage it or reduce dramatically its lifetime.

  • Page 20: Transportation, Storage And Operation

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Recommendations for preserving the equipment Your equipment has been designed and developed according to the standards of modern techology. Similarly to other kinds of equipment, it requires special care, which is many times neglected due to several reasons and circunstances. Therefore, here are some important reminders for your daily routine.
  • Page 21 - The equipment should only be operated by duly enabled and trained technicians (Dental Surgeons, Capacitated Professionals). - If any maintenance should be required, only use services of the Saevo Authorized Technical Assistance. - The equipment has been manufactured to handle both continuous and intermittent operation; so follow the cycles described in these Instructions for Use.

  • Page 22: Corrective And Preventive Maintenance And Preservation

    (failures, causes and solutions). If it is not possible to resolve the problem, turn off the equipment, remove the power supply cable from the socket and contact your representative (Saevo). Precautions to be adopted against foreseeable or uncommon risks, related to the...
  • Page 23 (situation, cause and solution). If it’s not possible to solve the problem, shutdown the equipment and demand the presence of a technician from the nearest resale, or ask through the Attendance Service Saevo: + 55 (16) 3512-1212.

  • Page 24: Unforeseen Events - Solution Of Problems

    Whenever you need, demand the presence of a Saevo’ technician from the nearest resale, or ask through the Attendance Service Saevo: + 55 (16) 3512-1212.
