Drip Loop
Although the connector is specified to withstand water ingress it is recommended to install
with a drip loop in the cable. (See Figure 19).
1.1.3
Protection Cover
Install a cover over the top of the sensor to deflect the material away from the connector.
(See Figure 20). Self-amalgamating tape can also be used to seal the connector.
22
Hydro-Probe Installation Guide HD0675 Rev 1.5.0
Mounting Sleeve
Hydro-Probe

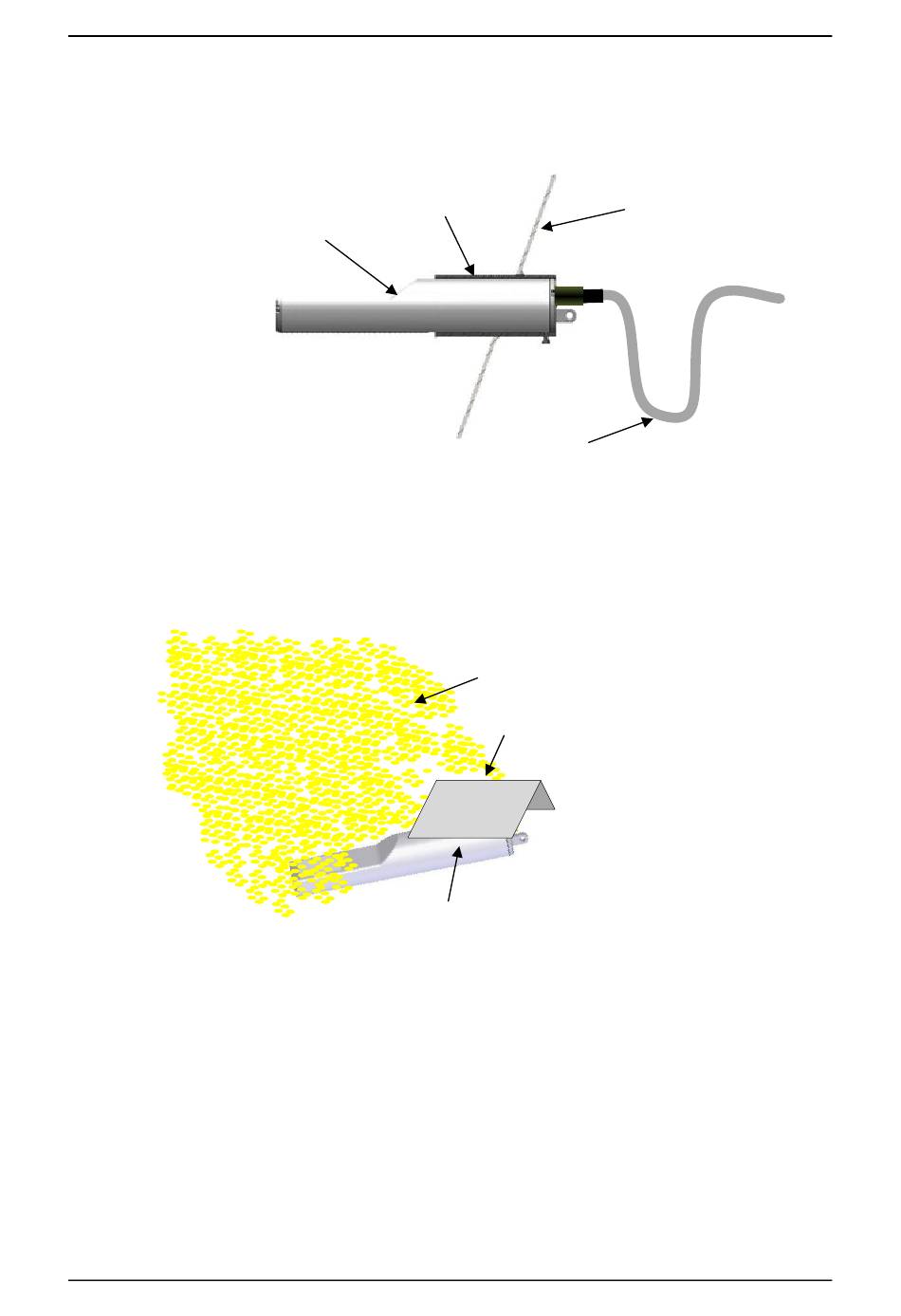

Figure 19: Hydro-Probe installed with a Drip Loop

Hydro-Probe

Figure 20: Hydro-Probe Protection Cover

Bin wall
Drip Loop
Material
Protection cover
Corrosion Protection
