Chapter 1 Hydro-Probe Installation; Figure 1: The Hydro-Probe Sensor - Hydronix Hydro-Probe Installation Manual

Chapter 1
Available accessories:
0023 Clamp Ring
0025 Standard Mounting Sleeve
0026 Extension Mounting Sleeve
0024A Flanged Mounting Sleeve (for vertical mounting)
0023 Clamp Ring for use with Flanged Mounting Sleeve
0975A 4m sensor cable
0975A-10m 10m sensor cable
0975A-25m 25m sensor cable
0116 Power Supply – 30 Watt for up to 4 sensors
0067 Terminal Box (IP56, 10 terminals)
0049A RS232/485 converter (DIN rail mounting)
0049B RS232/485 converter (9 pin D type to terminal block)
SIMxx USB Sensor Interface Module including cables and power supply
Hydro-Com configuration and diagnostics software is available for free download from
www.hydronix.com

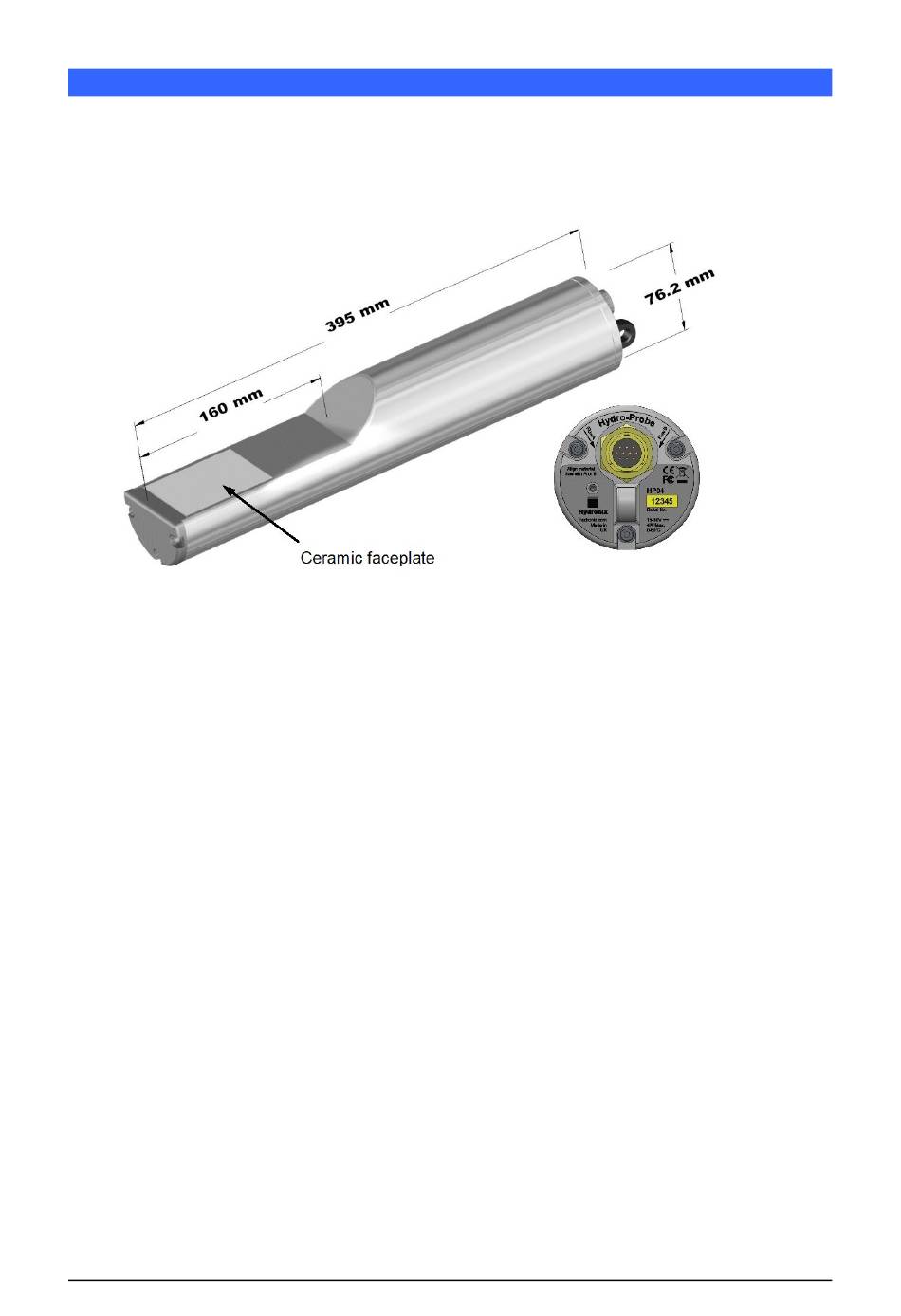

Figure 1: The Hydro-Probe Sensor

Hydro-Probe Installation
