Bin Wall Mounting
2.3
The sensor can be placed horizontally in the bin wall, or if the space is limited, angled
down to 45° as shown, using the Standard Mounting Sleeve (part no: 0025).
If the sensor does not reach the main flow of material, then an Extension Mounting Sleeve
(part no 0026) should be used, as shown below.
14
Hydro-Probe Installation Guide HD0675 Rev 1.5.0

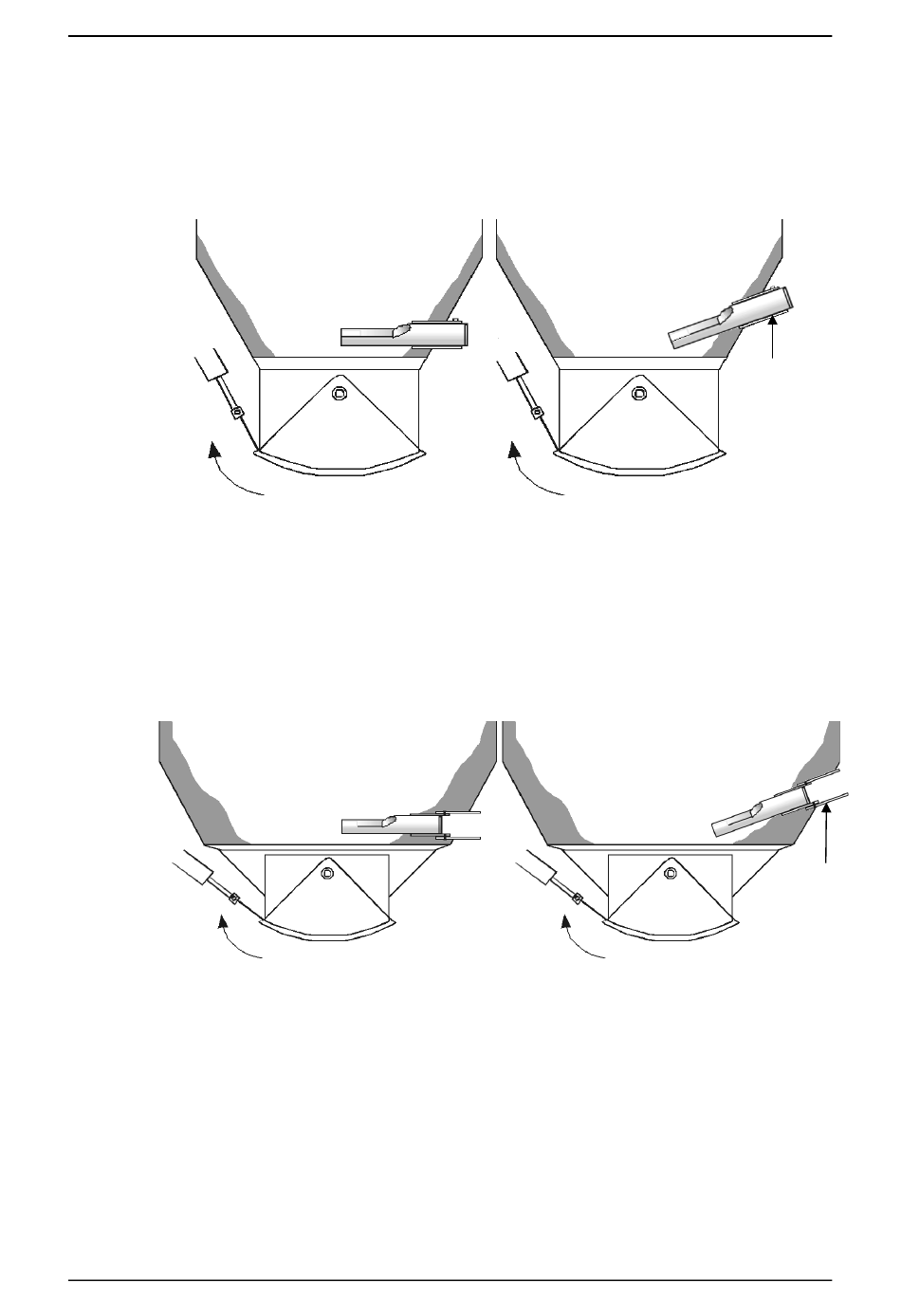

Figure 6: Mounting the Hydro-Probe in the Bin Wall
Figure 7: Mounting the Hydro-Probe in Large Bins
Hydro-Probe Installation
Standard
Mounting Sleeve
(part no 0025)
Extension
Mounting
Sleeve
