3 Installing the Sensor
There are three mounting accessories available from Hydronix.
Standard Mounting Sleeve (part no 0025)
3.1
218mm
Extension Mounting Sleeve (part no 0026)
3.2
For installation in larger bins
A
A – Sensor is secured to the inner sleeve by 6 hex screws (use Locktite or similar) on screw threads
B – Outer sleeve welded to bin
18
Hydro-Probe Installation Guide HD0675 Rev 1.5.0
<338mm

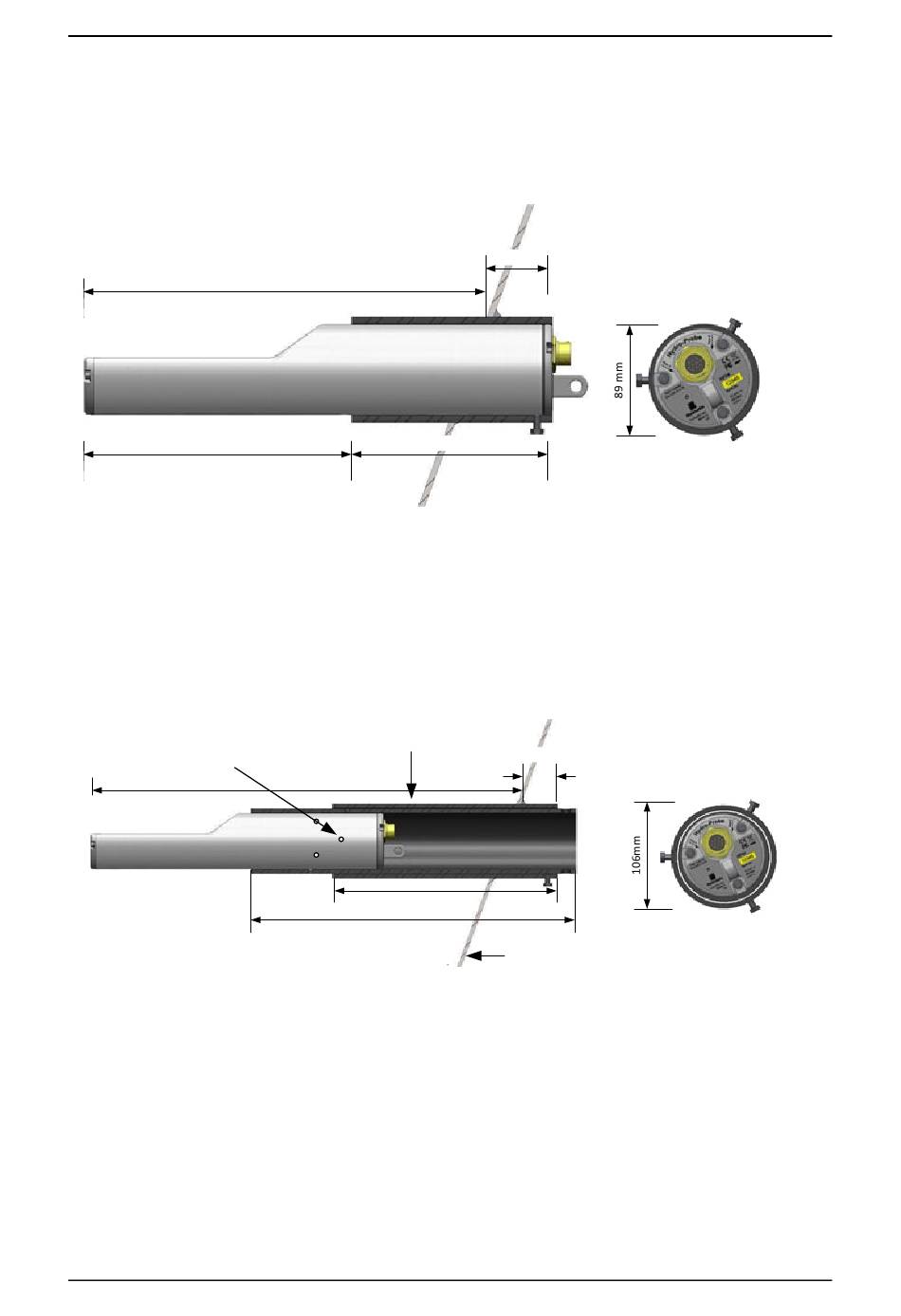

Figure 14: The Standard Mounting Sleeve (part no 0025)
B
<583mm
440mm
Figure 15: The Extension Mounting Sleeve (part no 0026)
50mm
170mm
50mm
305mm
Bin Wall
