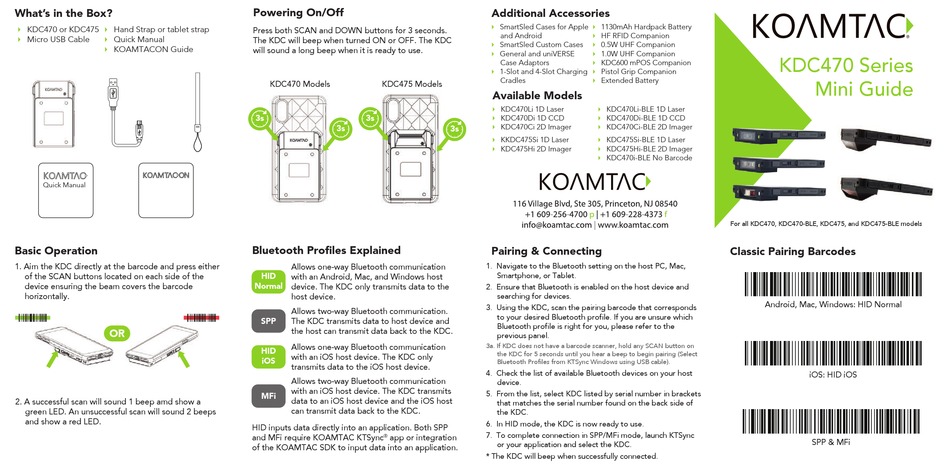

KoamTac KDC470-BLE Mini-Manual

What's in the Box?
KDC470 or KDC475 Hand Strap or tablet strap
• •
Micro USB Cable Quick Manual
• •
KOAMTACON Guide
•
Quick Manual
Basic Operation
1. Aim the KDC directly at the barcode and press either
of the SCAN buttons located on each side of the
device ensuring the beam covers the barcode
horizontally.
OR
2. A successful scan will sound 1 beep amd show a
green LED. An unsuccessful scan will sound 2 beeps
and show a red LED.
Powering On/Off
Press both SCAN and DOWN buttons for 3 seconds.
The KDC will beep when turned ON or OFF. The KDC
will sound a long beep when it is ready to use.
KDC470 Models KDC475 Models
3s 3s
3s
Bluetooth Pro les Explained
Allows one-way Bluetooth communication
HID
with an Android, Mac, and Windows host
Normal
device. The KDC only transmits data to the
host device.
Allows two-way Bluetooth communication.
SPP The KDC transmits data to host device and
the host can transmit data back to the KDC.
Allows one-way Bluetooth communication
HID
with an iOS host device. The KDC only
iOS
transmits data to the iOS host device.
Allows two-way Bluetooth communication
with an iOS host device. The KDC transmits
MFi
data to an iOS host device and the iOS host
can transmit data back to the KDC.
HID inputs data directly into an application. Both SPP
and MFi require KOAMTAC KTSync ® app or integration
of the KOAMTAC SDK to input data into an application.
Additional Accessories
SmartSled Cases for Apple 1130mAh Hardpack Battery
• •
and Android HF RFID Companion
•
SmartSled Custom Cases 0.5W UHF Companion
• •
General and uniVERSE 1.0W UHF Companion
• •
Case Adaptors KDC600 mPOS Companion
•
1-Slot and 4-Slot Charging Pistol Grip Companion
• •
Cradles Extended Battery
•
Available Models
KDC470Li 1D Laser KDC470Li-BLE 1D Laser
• •
KDC470Di 1D CCD KDC470Di-BLE 1D CCD
• •
KDC470Ci 2D Imager KDC470Ci-BLE 2D Imager
3s • •
KKDC475Si 1D Laser KDC475Si-BLE 1D Laser
• •
KDC475Hi 2D Imager KDC475Hi-BLE 2D Imager
• •
KDC470i-BLE No Barcode
•
Pairing & Connecting
1. Navigate to the Bluetooth setting on the host PC, Mac,
Smartphone, or Tablet.
2. Ensure that Bluetooth is enabled on the host device and
searching for devices.
3. Using the KDC, scan the pairing barcode that corresponds
to your desired Bluetooth profile. If you are unsure which
Bluetooth profile is right for you, please refer to the
previous panel.
3a. If KDC does not have a barcode scanner, hold any SCAN button on
the KDC for 5 seconds until you hear a beep to begin pairing (Select
Bluetooth Profiles from KTSync Windows using USB cable).
4. Check the list of available Bluetooth devices on your host
device.
5. From the list, select KDC listed by serial number in brackets
that matches the serial number found on the back side of
the KDC.
6. In HID mode, the KDC is now ready to use.
7. To complete connection in SPP/MFi mode, launch KTSync
or your application and select the KDC.
* The KDC will beep when successfully connected.
®
KDC470 Series
Mini Guide
For all KDC470, KDC470-BLE, KDC475, and KDC475-BLE models
Classic Pairing Barcodes
Android, Mac, Windows: HID Normal
iOS: HID iOS
SPP & MFi
