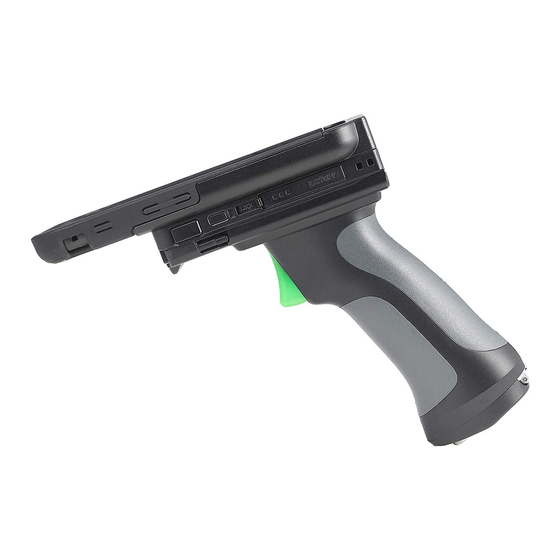

KoamTac KDC475 Assembly Manual

Pistol grip

Hide thumbs Also See for KDC475:

Download this manual

What's in the Box?

• 1 x KDC470/KDC475 Pistol Grip Adapter

• 1 x Pistol Grip

• 1 x Li-ion Battery (6000mAh)

• 4 x screws + 1 extra

*KDC470/475 sold separately.

Tweezers and PH0 screwdriver (not included)

will be necessary to complete assembly.

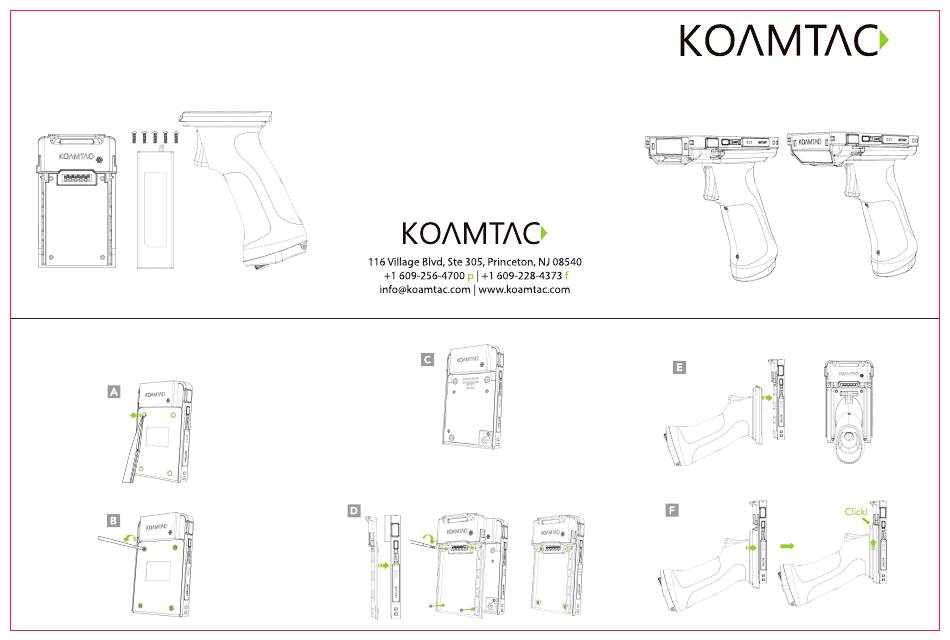

Assembly Instructions:

1. Using tweezers, carefully remove all four (4) screw caps

from back of KDC470/475. (A)

2. Remove all four (4) screws from back of KDC470/475. (B)

Additional KDC470/475 Accessories:

• 1-Slot Charging Cradle

• Extended Battery

3. Remove cover plate from back of KDC470/475. (C)

4. Align screw holes of Pistol Grip Adapter with screw holes

of KDC470/475. Use four (4) included screws to attach

Pistol Grip Adapter to KDC470/475.

KDC470/475 Pistol Grip

Assembly Manual

5. Align notch in top of Pistol Grip with top notch

of the Pistol Grip Adapter. (E)

6. Slide Pistol Grip up until it clicks. (F)
