- Page 1 KDC470 & KDC475 User Manual 116 Village Blvd, Suite 305, Princeton, NJ 08540 USA ©2019 KOAMTAC, Inc. T: + 1-609-256-4700 F: +1-609-228-4373 UM_KDC470475_20190517 info@koamtac.com www.koamtac.com...
-
Page 2: Table Of Contents
HID Normal (Basic Mode) - Keyboard Wedge or HID Keyboard ............. 11 3.1.3 SPP (Application Mode) ........................12 USB OTG: How to enable OTG on your KDC470 (Android Only) ............12 Serial: How to enable Serial on your KDC470/475 (iOS Only) ..............13 Using Keyboard Wedge (HID Keyboard) ....................14 Using KTSync –... - Page 3 KDC470 & KDC475 User Manual Scan Options ..............................20 Data Process - Wedge/Store, Enter Key & Extend Key ................20 Data Process – Data Edit ..........................21 Data Process – Data Format and Handshake .................... 21 Data Process – Termination Character & Duplicate Check ..............21 Bluetooth ..............................
-
Page 4: What Is Kdc470/475 About

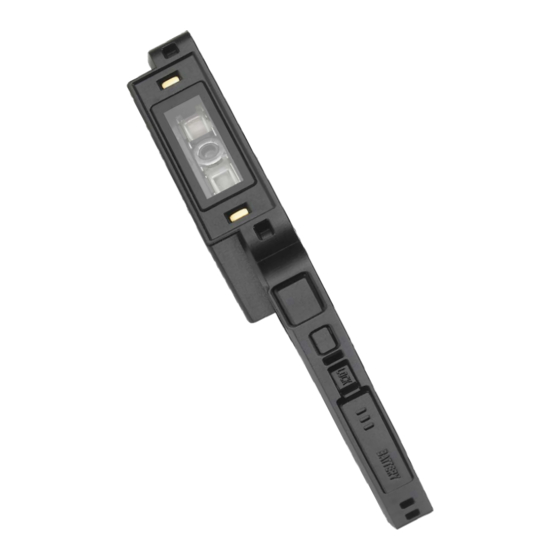

This Barcode/RFID/mPOS SmartSled is our most modular product yet. Whether you need to read barcodes or RFID tags this is the KDC for you. The KDC470 and KDC475 are rugged devices with an IP65 rating and are built to last. No matter what type of data you need to collect or how you need to collect it, there is a companion module to get the job done quickly and accurately. -
Page 5: Key Features
Extended Battery Pack o Pistol Grip o PCI/EMV Payment Companion c) Custom Smart Case for simultaneous charging o One USB charging port (or charging cradle) charges both KDC470/475 and smartphone/tablets. See Reference Manual for more detailed information. Visit store.koamtac.com... -
Page 6: Product Spec
KDC470 & KDC475 User Manual Introduction KOAMTAC’s KDC470/475 works with a wide variety of portable applications. You can use it as an accessory for PC, PDA, smart watch, smart glass, smartphone, or smart tablet. 2.1 Product Spec Item KDC470/475 Design Standard SmartSled KDC470: 2.56"... - Page 7 KDC470 & KDC475 User Manual Laser > 60,000 # of scans CCD > 50,000 (1 sec interval) Imager > 25,000 Laser > 20,000 # of scans CCD > 15,000 (10 sec interval) Imager > 10,000 Laser (L): 1.97” to 7.48” (50 to 190 mm) Laser (S, Code128): 1.2”...
-
Page 8: Kdc470/475 Diagram
To turn on, press any SCAN button and DOWN button together for 3 seconds at the same time until you hear a short beep sound. KDC470/475 will sound a long beep when it is ready to use. (You should hear the long beep in about 30 seconds.) (* 2017/2018/early 2019 versions of KDC470/475 turn on upon pressing scan button. -
Page 9: How To Install/Uninstall The Smart Device Into The Integrated Case (Android/Ios)
KDC470 & KDC475 User Manual c) To turn off, press any SCAN button and DOWN button together for 3 seconds at the same time. You can make sure that it is turned off by pressing any SCAN button to read a barcode after that. -
Page 10: How To Connect Pc With Kdc Or Phone
The KDC470/475 automatically sets up a communication path with PC when you plug in USB cable to KDC470/475 so that you can use KTSync on PC or download a new firmware into KDC from PC (KDC Path). But, if you want to connect PC with your phone without taking out the phone from the case (Phone Path), you can set up by pressing DOWN button for 3 seconds. -
Page 11: Bluetooth: How To Pair Kdc470/475 To Smart Device (Android/Macos/Windows)
* Integrated Case and Universal Case support simultaneous charging for both phone and KDC 3.1 Bluetooth: How to pair KDC470/475 to smart device (Android/MacOS/Windows) To read barcode data with your KDC wirelessly, the user must first pair the KDC and smart device via Bluetooth. -
Page 12: Two Bluetooth Profiles
Navigate to the Bluetooth settings on the host device and turn Bluetooth on. e) Underneath the list of available devices, tap on the KDC470/475. The serial number will appear in brackets which you can cross check with the serial number on the back of the KDC. -
Page 13: Spp (Application Mode)
First, connect the KDC to the phone in SPP mode. If the KDC is already connected, make sure to unpair it first b) Scan the SPP/MFi & Pairing bar code on the quick manual. The LED on the side of your KDC470/475 will begin blinking... -
Page 14: Serial: How To Enable Serial On Your Kdc470/475 (Ios Only)
KDC470 & KDC475 User Manual c) Once OTG is configured, it will be stored in the KDC NVRAM and KDC470/475 will run as an OTG mode whenever it restarts. d) Mount your Android smart device into the integrated smart case then they connect via USB OTG automatically. -
Page 15: Using Keyboard Wedge (Hid Keyboard)
KDC470 & KDC475 User Manual Usage Now it is ready to use. You can use HID Keyboard, KTSync, KTSync Keyboard, other developed applications with our free SDK. 4.1 Using Keyboard Wedge (HID Keyboard) This option is only available using Bluetooth connection with HID profile. -
Page 16: Using Ktsync Keyboard - Android
KDC470 & KDC475 User Manual 4.3 Using KTSync Keyboard – Android Once your KDC is connected to KTSync from Chapter 4.2, you can use your KDC as a keyboard. a) While KTSync is running in the background, navigate to Settings > Language & Input > Virtual Keyboard >... - Page 17 KDC470 & KDC475 User Manual < Fig. 6 > < Fig. 7 > c) Open the application you want to scan into and tap on the screen, so the on-screen keyboard appears. d) Press and hold the globe icon located to the left of the spacebar.
-
Page 18: Using Other Developed Applications With Free Sdk - Android/Ios
Note: The KDC must be connected to KTSync & the KTSync keyboard must be selected for this to work. 4.5 Using other developed applications with free SDK – Android/iOS A Software Development Kit (SDK) for Android and iOS is available to all KOAMTAC customers to ensure smooth development of applications that work seamlessly with a KDC scanner. -
Page 19: Things To Know
The battery may be recharged from any USB port or KDC charging cradle and may be recharged about 300 times before it needs to be replaced. KOAMTAC recommends replacing the battery annually, as a declining battery will cause noticeable performance degradation in the KDC. - Page 20 KDC470 & KDC475 User Manual 8) Close the battery cover and slide the lock switch down See Reference Manual for more detailed information. Visit store.koamtac.com to purchase additional KDCs and accessories.
-
Page 21: Scan Options
KDC470 & KDC475 User Manual Appendix. Useful Special Barcodes 6.1 Scan Options Wide Scan Angle* Narrow Scan Angle* Enable Auto Trigger Disable Auto Trigger * Opticon Laser Model only 6.2 Scan Options Enable Auto Trigger Disable Auto Trigger 6.3 Data Process - Wedge/Store, Enter Key & Extend Key Wedge Only Wedge &... -
Page 22: Data Process - Data Edit
KDC470 & KDC475 User Manual Save if Not Sent 6.4 Data Process – Data Edit Start Prefix Enter Start Suffix Enter Finish Prefix / Suffix Enter Cancel Prefix / Suffix Enter 6.5 Data Process – Data Format and Handshake Data format = Barcode only Data format = Packet data 6.6 Data Process –... -
Page 23: Bluetooth
KDC470 & KDC475 User Manual Termination Character = LF Termination Character = CR+LF Termination Character = Tab Enable Duplicate Check Disable Duplicate Check 6.7 Bluetooth Enable Bluetooth Power Disable Bluetooth Power Disconnect Enter Pairing Mode Bluetooth Profile = SPP Bluetooth Profile = HID iOS See Reference Manual for more detailed information. -
Page 24: Hid Initial Delay
KDC470 & KDC475 User Manual Bluetooth Profile = HID Normal Bluetooth Profile = MFi 6.8 HID Initial Delay HID Initial Delay = Disabled HID Initial Delay = 1second HID Initial Delay = 2seconds HID Initial Delay = 3seconds HID Initial Delay = 5seconds HID Initial Delay = 10seconds 6.9 HID Character Delay... -
Page 25: System
KDC470 & KDC475 User Manual HID Character Delay = 50msec HID Character Delay = 100msec 6.10 System Memory Status Reset Memory Reset BT Registry Display Version Factory Default KDC Reset 6.11 OTG/Bluetooth (Android) USB OTG Mode Bluetooth Mode See Reference Manual for more detailed information.
