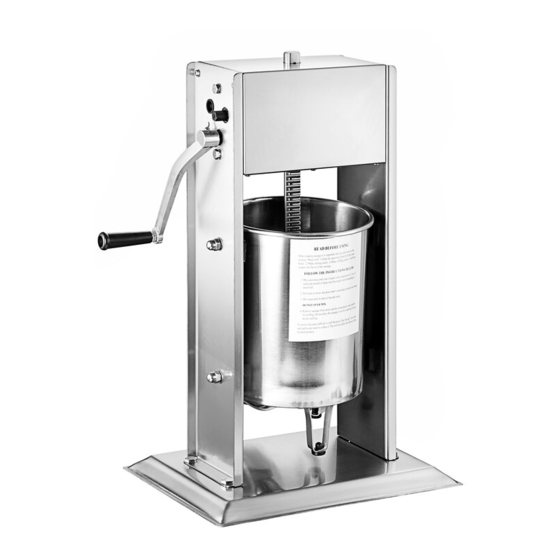

- Page 1 User Manual User Manual Churro Stuffer Models: 177CS11V, 177CS15V, 177CS20V, 177CS20VKIT, 177CS30V, 177CS30VKIT, 177CS7V 03/2023 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
- Page 2 User Manual General Safety Regulations WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.
- Page 3 User Manual Assembly and Installation PLUNGER ASSEMBLY 1. Slide the Plunger Seal onto the Plunger (figure 1). 2. Assemble the Pressure Release Valve Kit onto the Plunger. From the top of the Plunger, place the Washer onto the Valve Hole, then insert the Screw through the Washer and into the Valve Hole.
- Page 4 User Manual STUFFER ASSEMBLY continued 7. Rest Canister’s Bottom Brackets onto the Canister Mounts inside the Housing of the Stuffer. Pivot the Canister fully into the Stuffer Housing, snapping the Top Brackets into the Canister Mounts (figure 5). 8. Insert the Stuffing Funnel of choice through the Front Ring Nut.
- Page 5 User Manual Disassembly and Cleaning NOTE: BE SURE TO CLEAN ALL PARTS IMMEDIATELY AFTER USE. 1. Remove the Stuffing Funnel by unscrewing the Front Ring Nut and pulling the Funnel out. 2. Turn the Handle until the Plunger comes up and out of the Canister. 3.
- Page 6 User Manual Stuffing Instructions CAUTION! When the plunger is pulled out of the Canister, RELEASE THE HANDLE SLOWLY! Pressure or gravity could cause the Handle to spin back slightly and cause injury. NOTE: Apply a food-grade lubricant to the inside of the Canister before filling with the churro mixture.
- Page 7 User Manual Exploded Diagram and Parts List Part # Description Handle Plunger Plunger Seal Pressure Release Valve (4 Piece Set) (1) Hollow Churro Tube Stainless Steel Canister Front Ring Nut ⁄ " 1¼" Canister Mounting Hardware Kit (4 Sets) ⁄ " ⁄...
