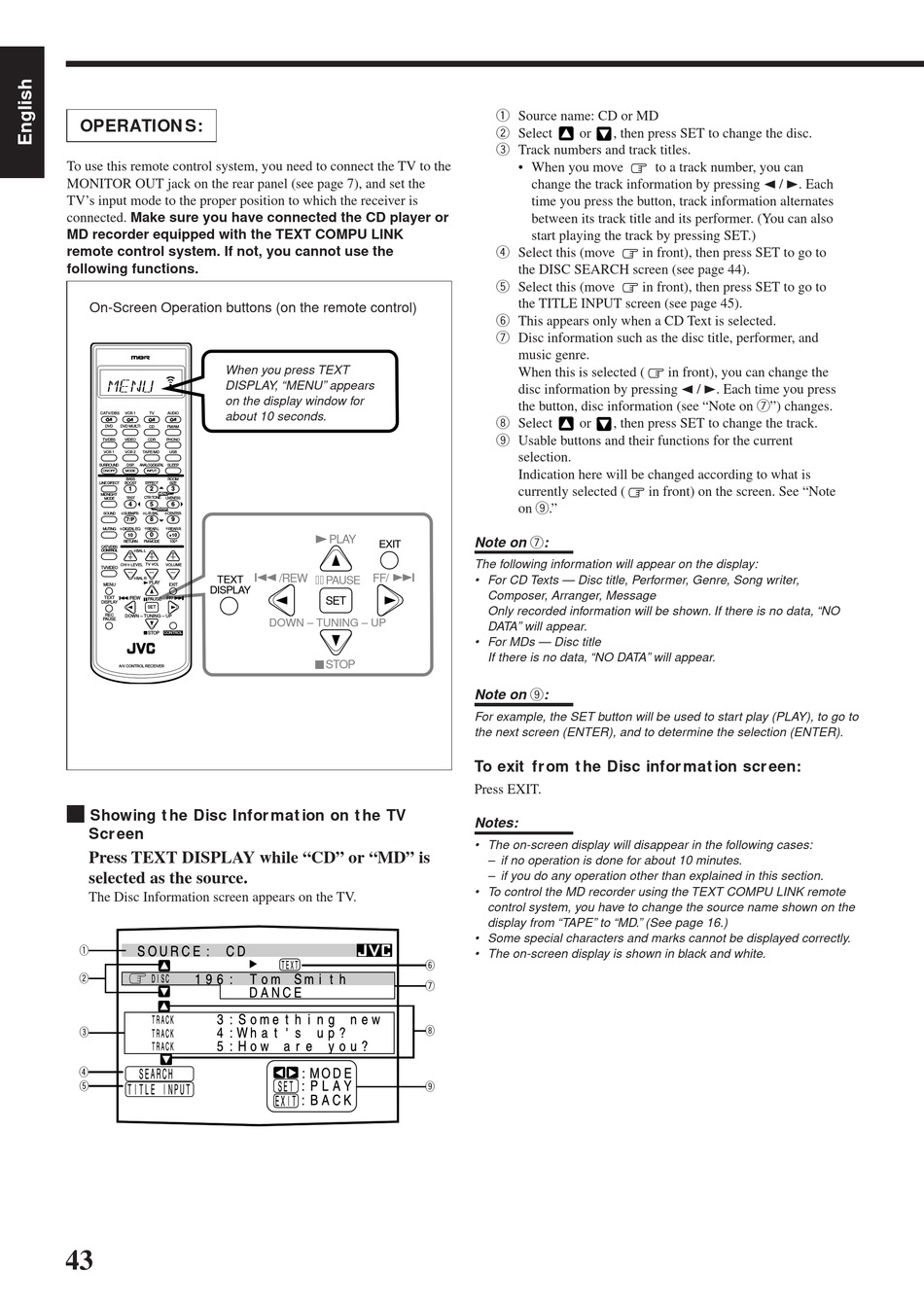

OPERATION S:
To use this remote control system, you need to connect the TV to the
MONITOR OUT jack on the rear panel (see page 7), and set the
TV's input mode to the proper position to which the receiver is
connected. Make sure you have connected the CD player or
MD recorder equipped with the TEXT COMPU LINK
remote control system. If not, you cannot use the
following functions.
On-Screen Operation buttons (on the remote control)
When you press TEXT
DISPLAY, "MENU" appears
on the display window for
about 10 seconds.
CATV/DBS
VCR 1
TV
AUDIO
DVD
DVD MUILTI
CD
FM/AM
TV/DBS
VIDEO
CDR
PHONO
VCR 1
VCR 2
TAPE/MD
USB
SURROUND
DSP
ANALOG/DIGITAL SLEEP
ON/OFF
MODE
INPUT
BASS
ROOM
LINE DIF .ECT
BOOST
EFFECT
SIZE
1
2
3
MENU
MIDNIGHT
TEST
CTR TONE
LIVENESS
MODE
4
5
6
ENTER
∗
∗
∗
SOUND
SUBWFR
L/R BAL
CENTER
8
9
7/P
∗
∗
∗
MUTING
DIGITAL EQ
REAR L
REAR R
0
10
+10
100 +
RETURN
FM MODE
CATV/DBS
∗
CONTROL
CONTROL
BAL L
+
+
+
∗
CH/
LEVEL
TV VOL
VOLUME
TV/VIDEO
−
−
−
TEXT
∗
BAL R
PLAY
MENU
EXIT
DISPLAY
TEXT
/REW
FF/
PAUSE
DISPLAY
SET
REC
DOWN – TUNING – UP
PAUSE
STOP
CONTROL
A/V CONTROL RECEIVER
Showing t he Disc Infor mat ion on t he TV
Scr een
Press TEXT DISPLAY while "CD" or "MD" is
selected as the source.
The Disc Information screen appears on the TV.
1
2
3
4
5
43
PLAY
EXIT
/REW
FF/
PAUSE
SET
DOWN – TUNING – UP
STOP
6
7
8
9
1 Source name: CD or MD
2 Select
or
, then press SET to change the disc.
3 Track numbers and track titles.
• When you move
change the track information by pressing 2 / 3. Each
time you press the button, track information alternates
between its track title and its performer. (You can also
start playing the track by pressing SET.)
4 Select this (move
in front), then press SET to go to
the DISC SEARCH screen (see page 44).
5 Select this (move
in front), then press SET to go to
the TITLE INPUT screen (see page 45).
6 This appears only when a CD Text is selected.
7 Disc information such as the disc title, performer, and
music genre.
When this is selected (
disc information by pressing 2 / 3. Each time you press
the button, disc information (see "Note on 7") changes.
8 Select
or
, then press SET to change the track.
9 Usable buttons and their functions for the current
selection.
Indication here will be changed according to what is
currently selected (
in front) on the screen. See "Note
on 9."
Note on 7 :
The following information will appear on the display:
• For CD Texts — Disc title, Performer, Genre, Song writer,
Composer, Arranger, Message
Only recorded information will be shown. If there is no data, "NO
DATA" will appear.
• For MDs — Disc title
If there is no data, "NO DATA" will appear.
Note on 9 :
For example, the SET button will be used to start play (PLAY), to go to
the next screen (ENTER), and to determine the selection (ENTER).
To exit fr om t he Disc infor mat ion scr een:
Press EXIT.
Notes:
• The on-screen display will disappear in the following cases:
– if no operation is done for about 10 minutes.
– if you do any operation other than explained in this section.
• To control the MD recorder using the TEXT COMPU LINK remote
control system, you have to change the source name shown on the
display from "TAPE" to "MD." (See page 16.)
• Some special characters and marks cannot be displayed correctly.
• The on-screen display is shown in black and white.
to a track number, you can
in front), you can change the
