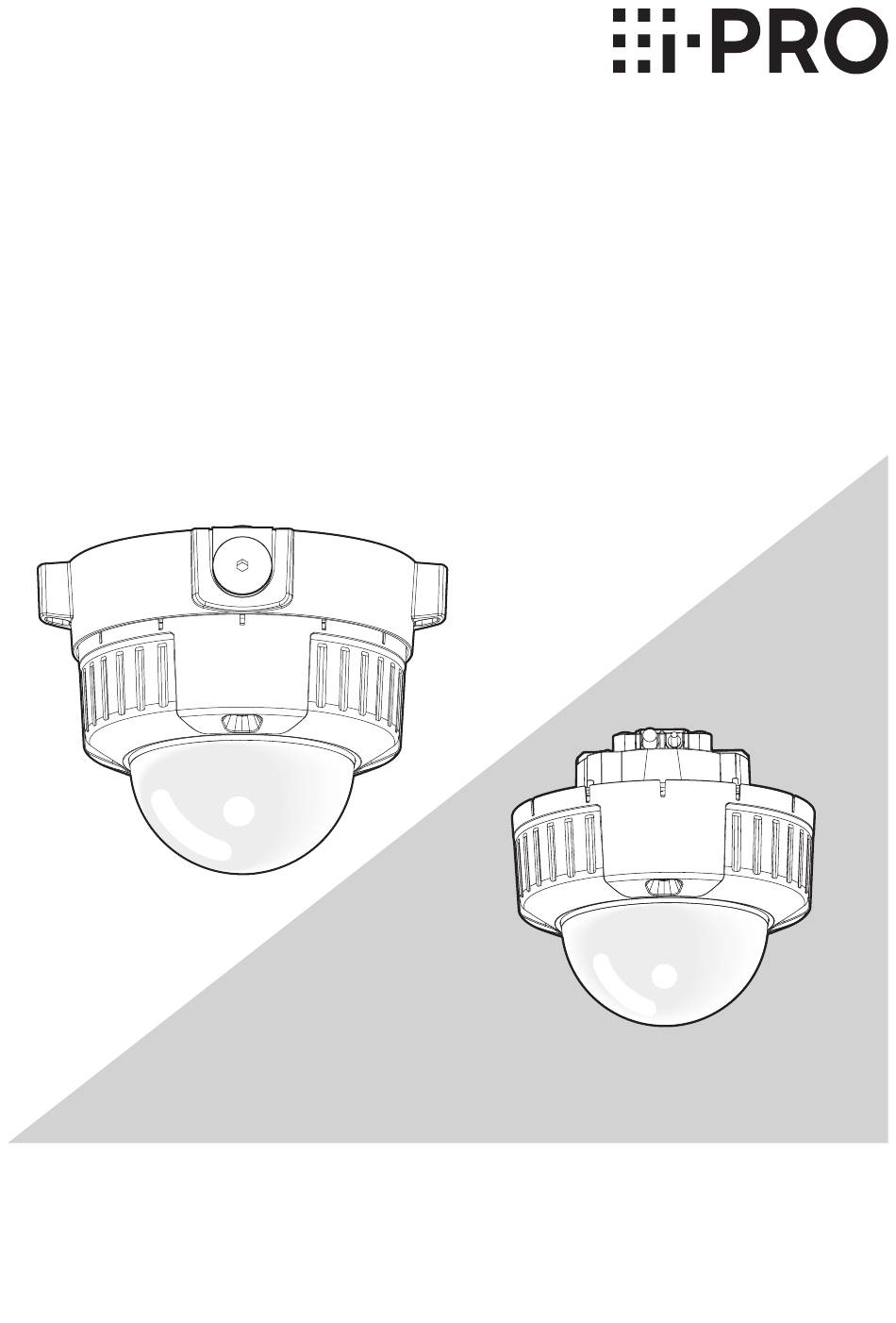

Installation Guide

Color CCTV Camera

WV-CW634S

Model No.

WV-CW634F

WV-CW634S

WV-CW634F

For information about how to perform the settings and how to operate the

camera, refer to the Operating Instructions on the provided CD-ROM.

Before attempting to connect or operate this product, please read these

instructions carefully and save this manual for future use.

The model number is abbreviated in some descriptions in this manual.

Table of Contents

Need help?

Do you have a question about the WV-CW634S and is the answer not in the manual?

Questions and answers

Summary of Contents for i-PRO WV-CW634S

Page 1 Installation Guide Color CCTV Camera WV-CW634S Model No. WV-CW634F WV-CW634S WV-CW634F For information about how to perform the settings and how to operate the camera, refer to the Operating Instructions on the provided CD-ROM. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Page 2 WARNING: CAUTION: • This apparatus must be earthed. • An ALL-POLE MAINS SWITCH with a contact • Apparatus shall be connected to a mains separation of at least 3 mm in each pole shall socket outlet with a protective earthing con- be incorporated in the electrical installation of nection.
Page 3: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc- tions. 6) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara- tus (including amplifiers) that produce heat.
Page 4: Limitation Of Liability
MENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...
Page 5: Table Of Contents
Contents Important safety instructions ......................3 Limitation of liability ........................4 Disclaimer of warranty ........................4 Preface ............................6 Features ............................6 About the user manuals ........................ 7 Trademarks and registered trademarks..................7 Precautions ........................... 8 Precautions for Installation ......................10 Major operating controls and their functions ................
Page 6: Preface
Preface This product is a 1/3-inch type {1/3"} CCD color CCTV camera. Connection of this product to a video monitor allows users to use this product as a monitoring camera. Features Super Dynamic 6 For photographic subjects which contain high contrast between the bright and dark areas, light compensation on the pixel level will result in more natural-looking images.
Page 7: About The User Manuals
Note: • The VMD function is not the dedicated function to prevent thefts, fires, etc. We are not respon- sible for any accidents or damages caused by applying the function for the above purposes. Optional heater unit can be connected When using the optional heater unit, the product can be used at temperatures within –30 °C to +60 °C {–22 °F to +140 °F} and humidity within 10 % to 90 %.
Page 8: Precautions
Precautions The following points as well as the con- This product shall be installed in a vibra- tents of "Warning" and "Caution" shall be tion-free place. observed. Failure to observe this may cause screws and bolts to be loosened and consequently to fall Refer installation work to the dealer.
Page 9 [Precautions for use] Cleaning this product body Turn the power off when cleaning the product. This product has no power switch. Do not use strong abrasive detergent when Turn the power off when cleaning the product. cleaning this product. Otherwise, it may cause discoloration.
Page 10: Precautions For Installation
Precautions for Installation The following points as well as the contents of "Warning" and "Caution" shall be observed. i-PRO Co., Ltd. assumes no responsibility • Locations where the temperature is not with- for injuries or property damage resulting in –10 °C to +60 °C {+14 °F to +140 °F}.
Page 11 Mounting screws • The screws and bolts must be tightened with an appropriate tightening torque according to the material and strength of the installation area. • Do not use an impact driver. Failure to observe this may cause overtightening and consequently damage to the screws.
Page 12: Major Operating Controls And Their Functions
Major operating controls and their functions w Video output cable q Power cord !9 Inner dome e Enclosure @0 Dome * This illustration shows the camera without the inner dome. r Panning table u Panning lock screw t Tilt adjusting table y Tilting lock screw i Focus lock knob o Zoom lock knob...
Page 13 q Power cord !5 Down button [(DOWN), ABF1] Moves the cursor downward and selects w Video output cable items in the setup menu. Refer to page 29 for further information about [ABF1]. e Enclosure (Pressing and holding for 3 s, image upside- down) r Panning table Rotate this table to adjust the panning...
Page 14: Preparations
(☞ Next page) • Using a two-gang junction box (locally procured) • WV-CW634S: Using the mounting base (accessory) WV-CW634F: Using the mounting base WV-Q115A (option) Refer to all work related to the installation of this product to qualified service personnel or system installer.
Page 15 The front side (model number indication face) of the camera shall be aligned in the direction of the arrow in " FRONT" on the attachment plate. WV-CW634S: Using the mounting base (accessory) WV-CW634F: Using the mounting base WV-Q115A (option) • When installing the camera with the mounting base WV-Q115A, attach the mounting base to the wall or ceiling in the first place.
Page 16 Install the mount bracket (mounting base) on the wall/ceiling. ø27 mm {1-1/16"} Cable access hole (A For use of the hole) 51 mm {2"} WV-Q115A Center of mounting base Female thread for conduit Cap for the female thread for the conduit (For use of the hole A) (For use of the hole B) 85 mm {3-11/32"}...
Page 17 Previously run the cables from the wall or ceiling through the cable access hole. Mount the attachment plate onto the mount bracket (mounting base). Recommended tightening torque: 0.78 N·m {0.58 lbf·ft} Attachment plate Note: • For wall mounting: Installation shall be performed in such a manner that " TOP" of the attachment plate faces upward.
Page 18 Important: • If open wiring is conducted, be sure to use conduits and run the cables inside the tubes to pro- tect the cables from direct sunlight. • When the conduit is connected at the lateral or bottom position, either of the arrow marks on the bracket shall be the top position.
Page 19: Make A Connection
Make a connection Cautions: • ONLY CONNECT WV-CW634S/WV-CW634F TO 24 V AC OR 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1). • Be sure to connect the grounding lead to the GND terminal.
Page 20 • Cord length and wire gauge 24 V AC The recommended cord length and copper wire size are shown in the table for reference. The voltage supplied to the camera should be between 19.5 V AC and 28 V AC. Recommended wire gauge for 24 V AC line.
Page 21 Waterproof treatment for the cable joint sections Adequate waterproof treatment is required for the cables when the camera with exposed cables is installed by means of the mounting base WV-Q115A or it is installed under the eaves. The camera body is waterproof, but the cable ends are not waterproof. Be sure to use the supplied waterproof tape at the connection parts of the power cord and video output cable to apply waterproof treatment in the following procedure.
Page 22 Optional Heater Unit WV-CW5HA (option) Installing the heater unit enables the camera to operate in a low-temperature environment below –30 °C {–22 °F}. The heater turns on automatically when the temperature inside the camera drops below +10 °C {50 °F} and turns off when the temperature rises. A small fan inside the unit will mini- mize condensation on the surface of the enclosure caused by changes in ambient temperature unless temperatures change too rapidly.
Page 23: Camera Installation
Camera installation Mount the camera. <To mount the camera on a two-gang junction box> q Connect the power cord and the video output cable. (☞ page 19) w Align the "OPEN" mark of the camera with the protrusion of the attachment plate. e Engage the attachment mounting screw of the camera with the camera mounting hole of the attachment plate and rotate the camera in the direction of the arrow to the "LOCK"...
Page 24 <To use the mounting base> q Attach the camera onto the attachment plate while aligning the "OPEN" mark of the camera with the projection of the attachment plate. Projection Important: • When mounting the camera body, cables shall be run between the attachment plate and mounting base as indicated by the arrow in the illustration.
Page 25 w Engage the attachment mounting screw of the camera with the camera mounting hole of the attachment plate and rotate the camera in the direction of the arrow to the "LOCK" position to secure the camera to the attachment plate without any backlash. Projections e Connect the power cord and the video output cable at the side of the mounting...
Page 26 t Mount the supplied base cover on the mounting base. Important: • To prevent the cables from being caught when the base cover is attached, keep the cables inside the cable guide. Base cover y Use the bit for tamperproof screw (acces- sory) to tighten the fixing screws provided Base cover fixing screw on both sides of the base cover.
Page 27 Remove the enclosure and inner dome from the main body by loos- ening the three fixing screws. Loosen the three fixing screws by using the provided bit for tamperproof screw. Detach the inner dome while pushing the parts with the "PUSH" indication. Press the parts with the "PUSH"...
Page 28 Adjust the camera Be sure to view the monitor for adjustment when the camera angle is adjusted. Connect the monitor for adjustment (e.g. a small LCD) to the monitor output connector, and adjust the camera angle. When determining the camera angle, repeat fine follow the adjusting procedure of q, w, and e shown below.
Page 29 Adjusts the focus. Focus adjustment shall be performed when camera Focus lock knob angle adjustment are performed. Adjust the focus by following the adjusting proce- dure of q, w, and e shown below. NEAR NEAR q Loosen the zoom lock knob and move the Zoom lock knob knob between TELE and WIDE to obtain the WIDE...
Page 30 To perform fine adjustment of the back focus after the ABF operation indicator goes off and automatic back focus is adjusted, use the right or left button. Note: • No operation for 10 seconds or more automatically clears the focus position indicator. •...
Page 31 Mount the enclosure and inner dome. Tighten the screws that have been loos- ened in Step 2 in page 27 using the supplied Cutout for Groove for mounting mounting driver bit. (Recommended tightening torque: 0.78 N·m {0.58 lbf·ft}) Important: • Attach the inner dome in accordance with the lens direction to not to change the lens direction.
Page 32: Setup Menu
Setup menu Performing each setting item in the setup menu should be completed in advance to use this unit. Perform the settings for each item in accordance with the installation conditions and customer requirements. List of setup menu Setup item Description CAMERA ID This item specifies the camera title.
Page 33: Basic Operation
Basic operation The operations in the setup menu are performed with the operation buttons after calling up the setup menu on the connected video monitor. The description below explains how to operate the setup menu basically. Screenshot 1 Hold down the [SET] button for about 2 seconds Step 1 to call up the top screen of the setup menu.
Page 34 Screenshot 3 The selected setup screen in the setup menu Step 4 appears on the screen. Perform the settings for each item. Selection of setting item: • **CAMERA SETUP** SCENE1 Press the [UP] button or [DOWN] button to ALC/ELC move the cursor. SHUTTER ON(HIGH) •...
Page 35 Screen transition diagram Top screen “CAMERA ID” screen MODEL WV-CW634 **CAMERA ID** CAMERA ID 0123456789 CAMERA ABCDEFGHIJKLM SYSTEM NOPQRSTUVWXYZ BACK-FOCUS ().,'":;&#!?= SPECIAL +- */%$ LANGUAGE SPACE POSI RET TOP END RESET “CAMERA SETUP” screen ....SETUP DISABLE **CAMERA SETUP** SCENE1 ALC/ELC SHUTTER ON(HIGH)
Page 36: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages •...
Page 37: Specifications
7-9/16" (W)} (Base Cover) Main body: 1.45 kg {3.20 lbs.} (including attachment plate 100 g {0.22 lbs.}) Mass Mount bracket (only for WV-CW634S): 350 g {0.78 lbs.} Main body: Aluminum die cast, light gray Finish Dome cover: Clear polycarbonate resin...
Page 38 When using clear dome cover: Color Mode: 0.08 lx {0.01 footcandle} at F1.4 WIDE 0.0024 lx {0.0003 footcandle} (sensitivity up x32, at F1.4 WIDE)* BW mode: 0.008 lx {0.001 footcandle} at F1.4 WIDE 0.00024 lx {0.00003 footcandle} (sensitivity up x32, at F1.4 WIDE)* Minimum illumination When using smoke dome cover (option): Color Mode: 0.16 lx {0.16 footcandle} at F1.4 WIDE...
Page 39: Standard Accessories
The following parts are used during installation procedures. Base cover (for WV-CW634S) ....................1 pc. Mounting base (for WV-CW634S) ..................1 pc. Fixing screw for mounting base (for WV-CW634S) ..............5 pcs. (incl. 1 spare screw) Fixing screw for ceiling mount bracket (for WV-CW634F) ............5 pcs.
Page 40: Optional Accessories
Optional Accessories Dome cover: WV-CW4SA (Smoke type) Heater unit: WV-CW5HA Mounting base: WV-Q115A (only for WV-CW634F) Ceiling mount bracket: WV-Q169A* (Use when installing camera on weak ceiling boards, etc.) Ceiling mount bracket: WV-Q105A* (Use when installing camera on weak ceiling boards, etc.) Ceiling hanging mount bracket: WV-Q121B...
