Important Information

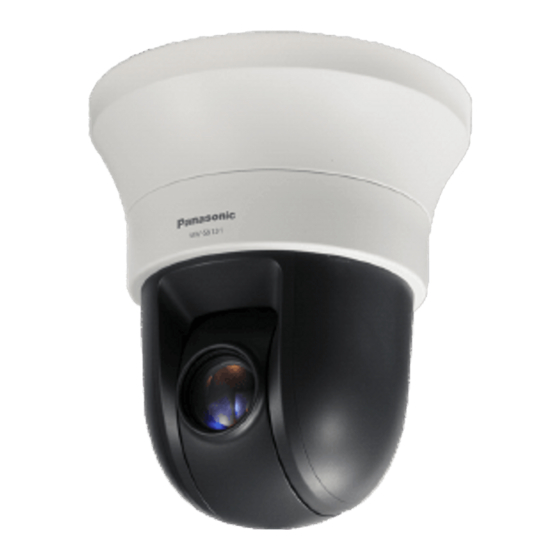

Network Camera
WV-S6131 / WV-S6111
Model No.
WV-S6130
LO C K
O P E N
WV-S6131
WV-S6130
* For information about the installation tasks, refer to the provided Installation
Guide. For information about how to perform the settings and how to
operate the camera, refer to the Operating Instructions on the provided
CD-ROM.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Advertisement
Table of Contents
Related Manuals for i-PRO WV-S6131
Summary of Contents for i-PRO WV-S6131
- Page 1 Important Information Network Camera WV-S6131 / WV-S6111 Model No. WV-S6130 LO C K O P E N WV-S6131 WV-S6130 * For information about the installation tasks, refer to the provided Installation Guide. For information about how to perform the settings and how to operate the camera, refer to the Operating Instructions on the provided CD-ROM.
-
Page 2: Table Of Contents
Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 Preface ............................4 About notations ..........................4 Main functions ..........................5 About the user manuals ........................ 6 System requirements for a PC ...................... 6 Trademarks and registered trademarks..................7 Copyright ............................ -
Page 3: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 4: Preface
The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. S6131 The functions with this notation are available when using the model WV-S6131. S6111 The functions with this notation are available when using the model WV-S6111. -
Page 5: Main Functions
Main functions S6131 S6130 S6111 40x optical zoom , 21x optical zoom and high accuracy preset position function A single camera provides wide area monitoring. Delivers high image quality streaming at low bit rates thanks to a H.265 engine equipped with our own Smart Facial Coding technology* This allows H.265 compression in addition to conventional H.264 compression technology, and when combined with Smart Facial Coding, reduces data load compared to our previous models. -
Page 6: About The User Manuals
About the user manuals Product documentation is composed of the following documents. • Important Information (this document): Provides basic information about the product. • Installation Guide: Explains installation, cable connections, mounting and removing. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera. -
Page 7: Trademarks And Registered Trademarks
IMPORTANT: • For information on the operation verification of the supported operating systems and web browsers, refer to our website at https://i-pro.com/global/en/surveillance/training_support/ support/technical_information. • When using a PC that does not meet the above requirements, displaying of images may become slower or the web browser may become inoperable. -
Page 8: Open Source Software
Open Source Software • This product contains open source software licensed under GPL (GNU General Public License), LGPL (GNU Lesser General Public License), etc. • Customers can duplicate, distribute and modify the source code of the software under license of GPL and/or LGPL. •... -
Page 9: Precautions
Precautions Do not insert any foreign objects. Do not touch the main unit while this prod- Fire or electrical shock may be caused if water uct is panning/ tilting. or any foreign objects, such as metal objects, Fingers may be caught up in the moving part, enter inside the unit. - Page 10 Periodic inspections shall be conducted. Do not rub the edges of metal parts with your hand. Rust on the metal parts or screws may cause a fall of the product resulting in injury or accidents. Failure to observe this may cause injury. Consult the dealer for the inspections.
- Page 11 About the MOS image sensor S6130 • When continuously shooting a bright light Do not touch the dome cover with your source such as a spotlight, the color filter bare hands. of the MOS image sensor may become A dirty dome cover causes deterioration of pic- deteriorated and this may cause discolor- ture quality.
- Page 12 Consumable parts Lens and pan/tilt head The following are consumables: Replace them If a lens and pan/tilt head are not performed for in accordance with their operating lifetimes. a long period of time, the grease coating inside Their operating lifetimes vary depending on the these parts may become sticky.
-
Page 13: Precautions For Installation
Precautions for installation i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting from fail- ures arising out of improper installation or operation inconsistent with this documentation. For information about the installation tasks, refer to the provided Installation Guide. - Page 14 • Locations subject to moisture or dust When noise disturbance may happen • Locations subject to condensation as the Conduct the power distribution work to keep a result of severe changes in temperature distance of 1 m {3.28 feet} or more from the 120 V (for U.S.
-
Page 15: Parts And Functions
Decorative cover (accessory) LO CK O P E N Decorative cover - upper part (accessory) Decorative cover - lower part (accessory) Status Dome cover indicator 【Front view】 S6131 S6111 S6130 SD memory card cover Fixed section i-PRO logo plate Dome section... - Page 16 S6130 The direction of i-PRO logo plate can be changed. ① Push “i” on the right of the i-PRO logo plate (refer to the illustration of【Front view】in Parts and functions) to unlock and pull it out. ② Pull the i-PRO logo plate out a little and ①...
- Page 17 【Rear view】 ■ Terminals S6131 S6111 ②12 V DC power supply terminal ③Audio input connector ④Audio output connector ⑤EXT I/O terminals ① Network connector Safety wire holder S6130 ②12 V DC power supply terminal ③Audio input connector ⑤EXT I/O terminals INITIAL SET button ④Audio output connector ⑥ M onitor out...
- Page 18 ②12 V DC power supply terminal Caution: • A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE EQUIPMENT POWERED BY 12 V DC POWER SUPPLY. • ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1).
- Page 19 ⑤EXT I/O terminals Connect an external device to the external I/O terminal and fit it into the camera. Note: • Off, input, and output of the external I/O terminal 2 and 3 can be switched by configuring the setting. Refer to the Operating Instructions on the provided CD-ROM for further information about the EXT I/O terminal 2 and 3 (ALARM IN2, 3) settings ("Off", "Alarm input", "Alarm out- put"...
- Page 20 When connecting to a network using a PoE hub Before starting the installation, check the entire system configuration. The following illustration gives a wiring example of how to connect the camera to the network via a PoE device (hub). Confirmation Powered speaker monitor PoE device (hub)
- Page 21 ■ Indicators and buttons S6131 S6111 <Inside of the memory card cover> SD memory card cover ②SD MOUNT indicator ①INITIAL SET button ④SD ON/OFF button SD memory card slot (SD) <Connection terminals on the back> ③STATUS indicator...
- Page 22 ■ Indicators and buttons (continued) S6130 <Inside of the memory card cover> SD memory card cover ④SD ON/OFF button ②SD MOUNT indicator SD memory card slot (SD) <Connection terminals on the back> ①INITIAL SET button <Whole unit> LO C K O P E N ③Status indicator...
- Page 23 ①INITIAL SET button (Initializing button) Follow the steps below to initialize the network camera. ⑴ Turn off the power of the camera. When using a PoE hub, disconnect the Ethernet cable from the camera. When using an external power supply, disconnect the power cable plug (accessory) from the 12 V DC power supply terminal.
- Page 24 ③Status indicator Operation status Indicator status When the power Before the network connection Lights orange → Lights off → Blinks orange → is turned on is established Lights orange When the network connection Lights orange → Lights off → Blinks orange → is established Blinks green →...
-
Page 25: Insert / Remove An Sd Memory Card
SD memory card slot (SD) S6130 ➀ Place the camera upside-down, push the left of the i-PRO logo plate on the front panel to unlock the SD memory card cover, and pull it out a little. ➁Slide the SD memory card cover to the arrow direction to open the cover ➀... - Page 26 5 minutes later. ➃ Shut the SD memory card cover ➄ Lock the cover by pushing the i-PRO logo plate ■ Remove an SD memory card When removing an SD memory card, open the SD memory card cover again and reverse the procedures.
-
Page 27: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE device for power supply... - Page 28 Contact your dealer. • Refer to the [Status information] on our support web- Status indicator − site (https://i-pro.com/global/en/surveillance/training_ keeps on blinking red. support/support/technical_information) after checking the displayed contents of the "Maintenance" page - the [Status] tab - [Self check] of the setup menu.
- Page 29 Or install the software to format the SD memory card (included in on the PC. the CD-ROM) Refer to our website (https://i-pro.com/global/en/surveillance/training_ support/support/technical_information) for further information about the supported software. • Isn’t the inserted SD memory card faulty? Replace the card with a normal one.
-
Page 30: Specifications
Specifications Basic • WV-S6131 / WV-S6111 WV-S6130 Power source * DC 12 V PoE (IEEE802.3af compliant) Power consumption * DC 12 V : 1 A/12 W PoE DC 48 V : 250 mA/12 W (Class 0 device) Operating environment Ambient operating temperature: –10 °C to +50 °C {14 °F to 122 °F}... - Page 31 Decorative cover: PC+ABS resin Fine silver *1 Refer to our website (https://i-pro.com/global/en/surveillance/training_support/support/technical_ information) for further information about Power source and Power consumption information. *2 The camera is fixed on the camera mount bracket (accessory). *3 The audio output can be switched to the monitor output. Refer to the "Operating Instructions"...
- Page 32 WV-S6131 / WV-S6111 WV-S6130 Minimum illumination: S6130 Color : 0.015 lx {0.00139 footcandle} (F1.6, Maximum shutter: Off (1/30 s), AGC: 11) 0.001 lx {0.00009 footcandle} (F1.6, Maximum shutter: max. 16/30 s, AGC: 11)* BW : 0.006 lx {0.00056 footcandle} (F1.6, Maximum shutter: Off (1/30 s), AGC: 11) 0.0004 lx {0.00004 footcandle}...
- Page 33 • Lens WV-S6131 / WV-S6111 WV-S6130 Zoom ratio: 40x Optical zoom 21x Optical zoom 60x with HD Extra Optical Zoom * 31x with HD Extra Optical Zoom * (Motorized zoom / Motorized focus) (Motorized zoom / Motorized focus) Digital (electronic) zoom:...
- Page 34 Image compression method* H.265/ H.264 Transmission priority: Constant bit rate / Variable bit rate / Frame rate / Best effort Frame rate: 1 fps/ 3 fps/ 5 fps*/ 7.5 fps*/ 10 fps*/ 12 fps*/ 15 fps*/ 20 fps*/ 30 fps*/ 60 fps* * The frame rate is limited to “bit rate”.
- Page 35 It is recommended to use an SDXC/SDHC/SD memory card for memory card* i-PRO devices. (SD speed class 4 or higher) SDXC memory card : 64 GB, 128 GB, 256 GB SDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB...
-
Page 36: Optional Accessories
Optional accessories S6131 S6111 Wall Mount Bracket WV-Q119 Ceiling Embedding Bracket WV-Q126A Ceiling Mount Bracket WV-Q105A Dome cover (Smoke dome type) WV-CS5S Dome cover (Clear dome type) WV-CS5C S6130 Wall Mount Bracket (Smoke dome type) WV-Q158S Wall Mount Bracket (Clear dome type) WV-Q158C Ceiling Embedding Bracket (Smoke dome type) WV-Q159S... - Page 37 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB i-PRO Co., Ltd. Amsterdam, Netherlands Fukuoka, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N0717-5042 PGQP2479UA...
