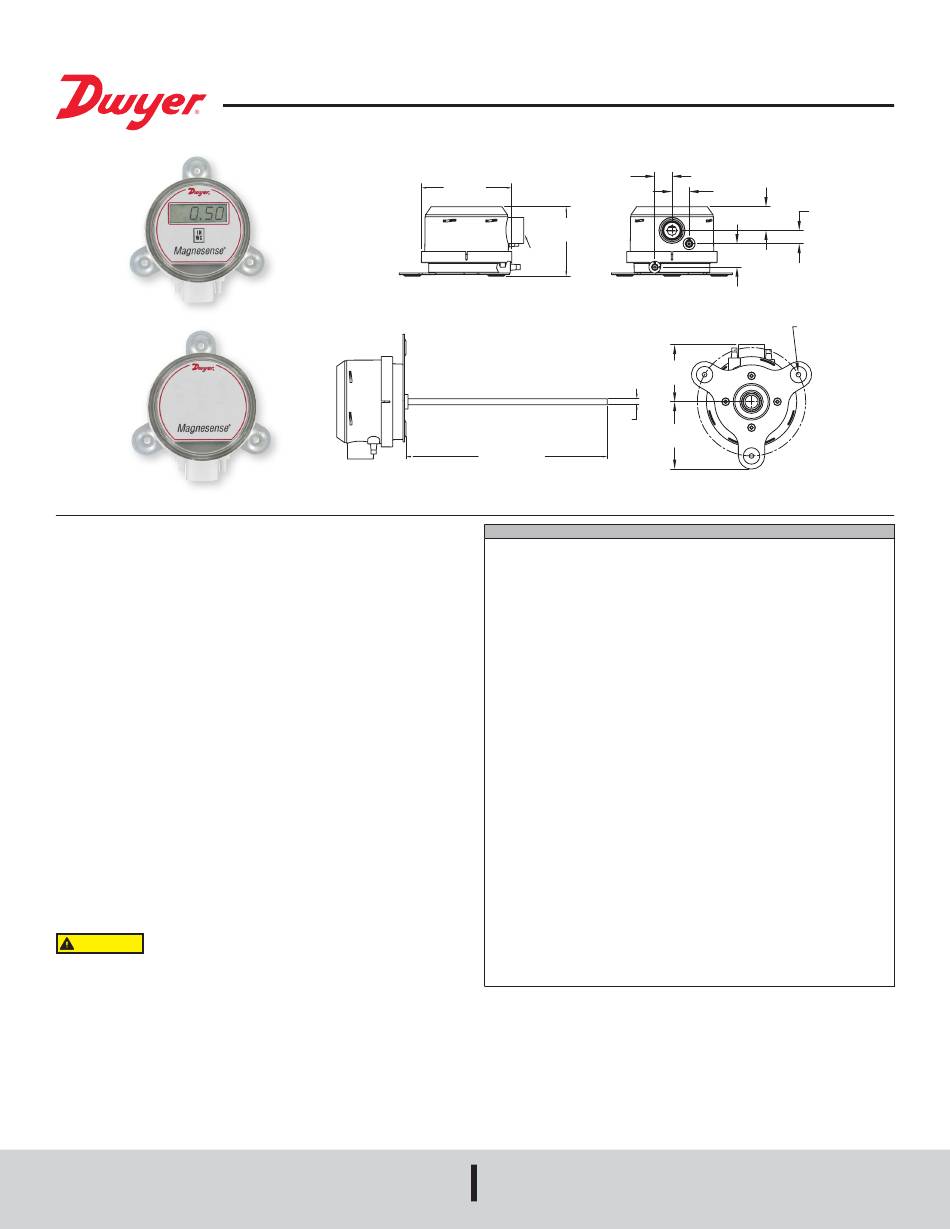

Dwyer Instruments Magnesense DWMS-112 Specifications-Installation And Operating Instructions

Series MS Magnesense
Specifications - Installation and Operating Instructions

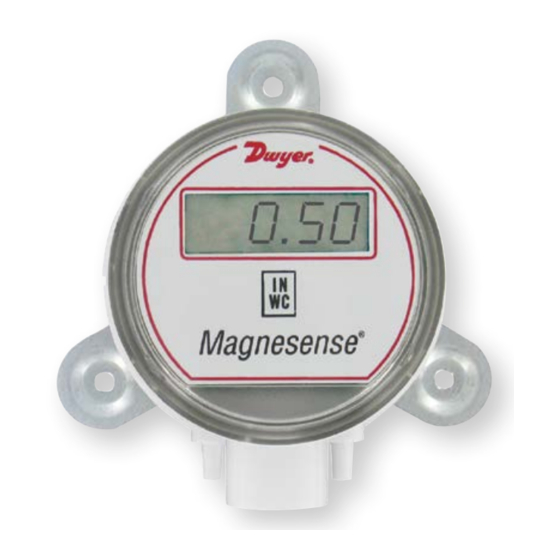

The Series MS Magnesense Differential Pressure Transmitter is an extremely
®
versatile transmitter for monitoring pressure and air velocity. This compact package
is loaded with features such as: field selectable English or metric ranges, field
upgradeable LCD display, adjustable dampening of output signal (with optional
display) and the ability to select a square root output for use with pitot tubes and other
similar flow sensors. Along with these features, magnetic sensing technology provides
exceptional long term performance and enables the Magnesense
Transmitter to be the solution for a myriad of pressure and air flow applications.
Installation
Mounting:
The transmitter should be mounted on a vertical surface with the connections directed
down to prevent moisture from entering either the pressure ports or the electrical cable
entry. The diaphragm must be vertical to minimize gravity effects on the diaphragm.
Mount the transmitter using #8 x 1/2˝ pan head sheet metal screws in the mounting
flanges. Do not over tighten.
Duct Mount:
The transmitter should be mounted away from fans, corners, heating and cooling coils
and other equipment that will effect the measurement of the pressure.
1. To mount the transmitter, drill a .562 (12.70) diameter hold into the duct.
2. Insert transmitter probe into the duct.
3. Mark location of three mounting holes on duct using mounting flange as template.
Drill holes.
4. Attach mounting flange to duct with (3) #8 x 1/2 pan head sheet metal screws. Do
not overtighten screws.
Electrical Connection:
2-Wire Operation:
DO NOT EXCEED SPECIFIED SUPPLY VOLTAGE RATINGS.
CAUTION
PERMANENT DAMAGE NOT COVERED BY WARRANTY WILL
RESULT. 2-WIRE UNITS ARE NOT DESIGNED FOR AC VOLTAGE OPERATION.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Differential Pressure Transmitter
®
ø3-7/16
[ø87.31]
1/2 NPT
7-5/8 [194.06]
SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% for 0.25˝ (50 Pa), 0.5˝ (100 Pa), 2˝ (500 Pa), 5˝ (1250 Pa), ±2% for
0.1˝ (25 Pa), 1˝ (250 Pa) and all bi-directional ranges.
Stability: ±1% F.S./ year.
Differential Pressure
®
Temperature Limits: 0 to 150°F (-18 to 66°C).
Pressure Limits: 1 psi (6.89 kPa) maximum, operation; 10 psi (68.9 kPa) burst.
Power Requirements: 2-wire, 10 to 35 VDC; 3-wire, 17 to 36 VDC or isolated 21.6
to 33 VAC.
Output Signals: 2-wire, 4 to 20 mA; 3-wire, 0 to 10 V or 0 to 5 V.
Response Time: Adjustable 0.5 to 15 sec. time constant. Provides a 95% response
time of 1.5 to 45 seconds.
Zero & Span Adjustments: Digital push button.
Loop Resistance: Current output: 0-1250 ohm max; Voltage output: min. load
resistance 1 k ohmΩ.
Current Consumption: 40 mA max.
Display (optional): 4 digit LCD.
Electrical Connections: 4 to 20 mA units: 2-Wire: European style terminal block
for 16 to 26 AWG; 0 to 10 V units: 3-Wire: European style terminal block 16 to 22
AWG.
Electrical Entry: 1/2˝ NPS thread. Accessory: A-151 cable gland for 5 to 10 mm
diameter cable.
Process Connections: 3/16˝ (5 mm) ID tubing. Maximum OD 9 mm.
Enclosure Rating: NEMA 4X (IP65).
Mounting Orientation: Diaphragm in vertical position.
Weight: 8.0 oz (230 g).
Agency Approval: CE.
The following standards were used for CE approval: CENELEC EN 61000-4-2:
2001, CENELEC EN 61000-4-3: 2002, CENELEC EN 61000-4-4: 1995, CENELEC
EN 61000-4-5: 2001, CENELEC EN 61000-4-6: 2003, CENELEC EN 61000-4-8:
2001, CENELEC EN 55011: 2003, CENELEC EN 61326: 2002, 89/336/EED EMC
Directive.
Phone: 219/879-8000
Fax: 219/872-9057
21/32
[16.67]
21/32
[16.67]
2-41/64
[67.07]
57/64
[22.62]
2-11/64
[55.17]
1/4
[6.00]
2-9/16
[65.09]
www.dwyer-inst.com
e-mail: info@dwyermail.com
Bulletin A-26
1/2
[12.70]
29/32
[23.02]
[3] 3/16 [4.76] HOLES
EQUALLY SPACED ON
A 4.115 [104.52] BC
